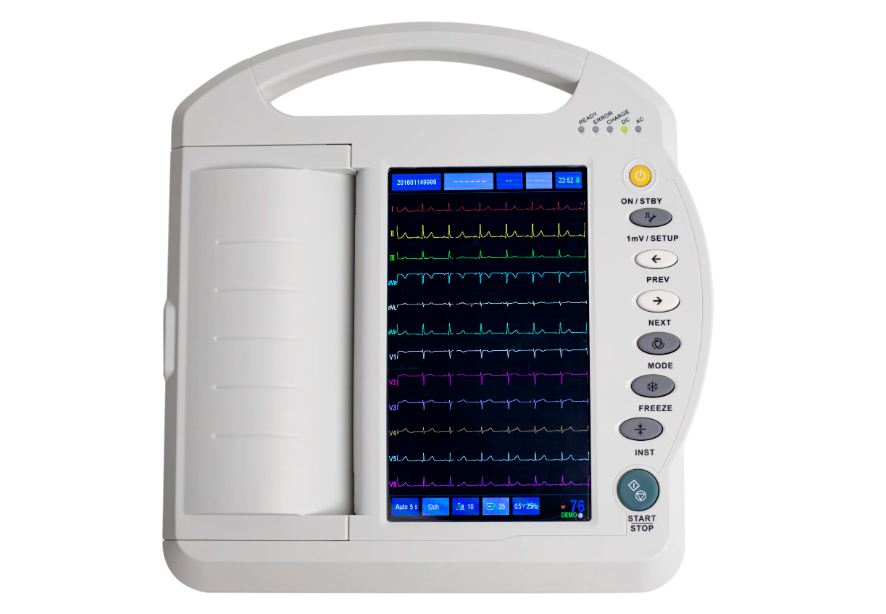

Yonker 10 Inch 12 Channel Touchscreen ECG Machine

LCD display:   Backlit high resolution 1024 x 600 10 inch touchscreen display 12 channel ECG waveform simultaneously,Time,Heart-rate.ect

Safety :     IEC, Class I, type CF

Leads :     12 STANDARD or CABRERA leads

Input circuit:  Floating,Defibrillation protection

Patient Current Leakage: <10uA

Input circuit current: ≤0.1μA

CMRR: >100dB

Noise Level:≤15μVp-p

Calibration Voltage: 1mV±2%

Print Channels:12 channels, Rhythem lead selectable

Printing Output: 3+3 channel; 6 channel; 6+1 channel; 12 channel; 12+1 channel

Operation Mode:automatic,manual,single channel 60s compressed record,Rhythm analysis (R-R histogram and trend chart)

Thermal paper: 216mm*20M thermal paper in Z-fold packers or in rolls

Prining speed:5; 6.25; 10; 12.5; 25; 50mm/s ± 3%

Printing system: Thermal printer; ≥8dot/mm(Vertical), ≥40 dot/mm (Horizontal),printing speed at 25mm/s

Recording sensitivity；1.25、2.5、5、10、20、40mm/mV±2%
