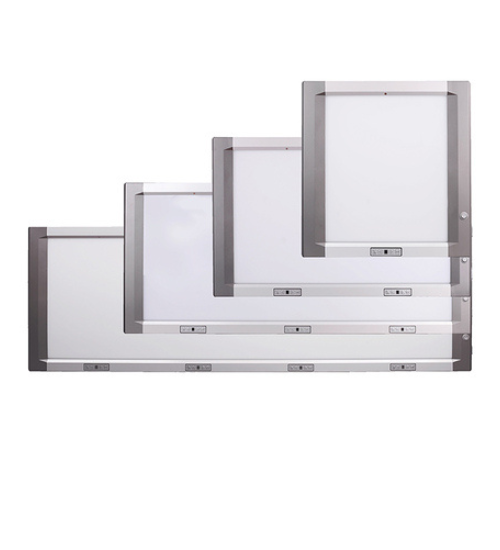

Type
|
SINGLE PANEL
|
DUAL PANEL
|
TRIPLE PANEL
|
QUADRUPLE PANEL
|
|
Model
|
YH-XFV01A
|
YH-XFV01B
|
YH-XFV01C
|
YH-XFV01D
|
|
Frame (L × H × T)/mm
|
500 × 510 × 45
|
850 × 510 × 45
|
1200 × 510 × 45
|
1570 × 510 × 45
|
|
Viewing Area (W × H)/mm
|
360 × 425(14"×17")
|
710 × 425(28"×17")
|
1065 × 425(42"×17")
|
1420 × 425(56"×17")
|
|
Power Consumption/W
|
15
|
30
|
45
|
60
|
Basic Parameters
● Light Source: Matrix LED;
● LED Lifespan: > 100,000hrs;
● Light Uniformity: > 98%;
● Brightness:>15,000 lux, >4,500 cd/㎡;
● Power Supply Input: AC100-240V, 50/60Hz.
Application
● Application Fields: X-ray, CT, MRI, Mammary, etc.
Features
★ Adopt with the acrylic euphotic panel from Japan Mitsubishi. No light fades;
★ A sensor in each panel can control the power and brightness with dimmer individually;
★ Insert the X-ray film, the view box is light on; plug the film out, the light is off;
★ Elastic silica rubber clip instead of rolling needle layout to avoid films sticking or falling;
★ The back side is aluminum alloy and frame is acrylic, guaranty light and durable;
★ Unique design thickness 45mm to make sure the heat dissipation and stability good.
