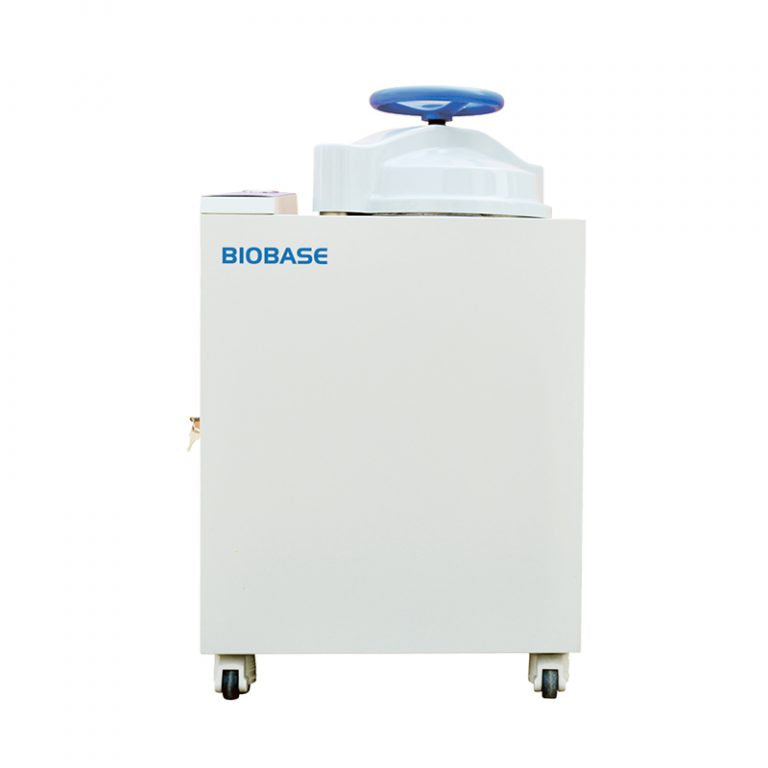

Vertical Autoclave Model BKQ-B50
Features:
* Standard built-in printer.
* Deionized water interface for supplying steam generator.
* Rapid water cooling system for efficient and safe sterilization of liquids.
* With a quick maintenance window, the electrical parts can be repaired without removing the cover.
* Microcomputer control. Fully automatic control water injection, temperature rise, sterilization, exhaust and dry.
* LCD screen display shows pressure, temperature, time and error codes and operation curve etc.
* Mobile probe detects to ensure the internal temperature of liquid directly, to ensure the sterilization effect
of liquid program.
| Model |
BKQ-B50L |
BKQ-B75L |
| Capacity |
50L |
75L |
| Chamber Size(mm) |
φ386*490 |
φ386*670 |
| Chamber Material |
SUS304 |
| Max Designed Pressure |
0.28MPa |
| Max Designed Temp |
150℃ |
| Working Pressure |
0.22MPa |
| Working temp. |
80℃-136℃ |
| Temp. Accuracy |
0.1℃ |
| Noise |
≤65dB |
| Power consumption |
5.5KW |
| Power Supply |
AC110/220V±10%,50/60Hz |
| External Size(W*D*H)mm |
700*610*1100 |
| Packing size(W*D*H)mm |
800*715*1270 |
| Net Weight(kg) |
140 |
147 |
