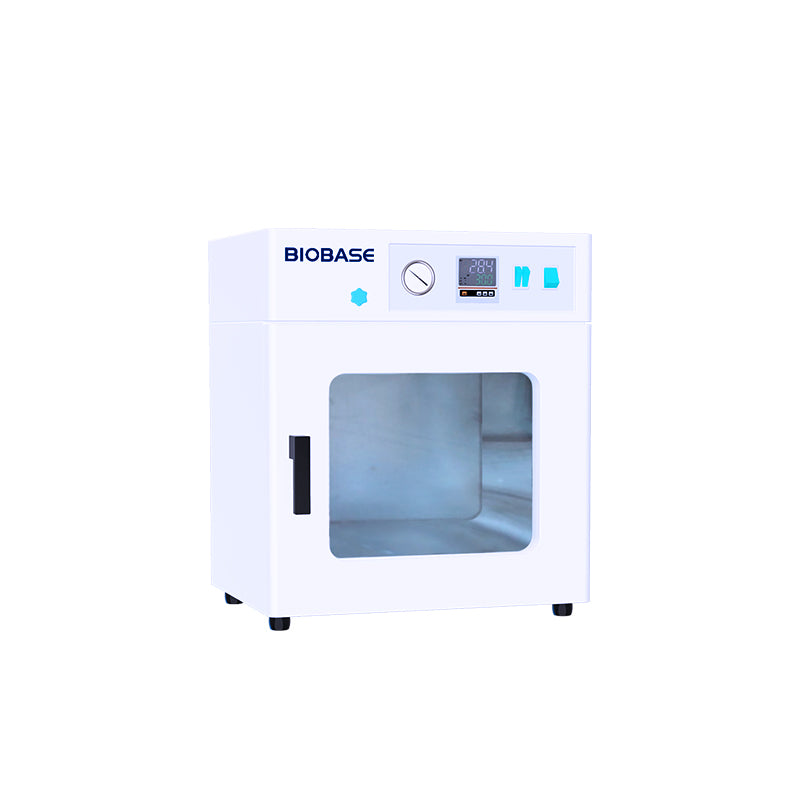

Vacuum Drying Oven BOV-25V BOV-53V BOV-91V BOV-210V BOV-414V
Features:
The cuboid chamber maximizes the effective volume.
Microcomputer temperature controller, accurate and reliable temperature control.
Tempered, bulletproof double-glazed doors to observe objects in the chamber.
The closed tightness of the box door can be adjusted, and the integrally formed silicone rubber door seal ensures a high degree of vacuum in the chamber.
Stainless steel chamber ensures product durability.
The vacuum pump is standard for model BOV-91V, BOV-210V, BOV-414V; optional for model BOV-25V, BOV-53V.
Intelligent LCD program temperature controller &digital vacuum gauge are standard for model BOV-414V; optional for model BOV-25V, BOV-53V, BOV-91V, BOV-210V.
Technical Parameters
| Model |
BOV-25V |
BOV-53V |
BOV-91V |
BOV-210V |
BOV-414V |
| Capacity |
25L |
53L |
91L |
215L |
414L |
| Temperature
Range
|
RT+10 ~200 |
| Temperature
Resolution
|
0.1℃ |
| Temperature
Fluctuation
|
±1℃ |
| Ambient Temperature |
5~40℃ |
| Vacuum Degree |
133Pa |
| Standard Shelves(pc) |
2 |
2 |
2 |
3 |
4 |
| Power |
≥300W |
≥1000W |
≥1200W |
≥2160W |
≥4000W |
| Power Supply |
Standard: 220V 50/60Hz; optional: 110V 50/60Hz, inner transformer |
380V 50Hz |
| Packing Size |
690*540*630mm |
810*650*800mm |
710*710*1500mm |
820*900*1690mm |
1020*1040*1900mm |
| Gross Weight |
55kg |
77kg |
135kg |
220kg |
400kg |
Applications
Vacuum drying oven is widely used in biochemistry, chemical pharmaceutical, medical institutions, agricultural scientific research, environmental protection and other research and application fields. Especially suitable for drying heat sensitive, easy to decompose, easy to oxidize substances and complex components of the rapid and efficient drying process.
