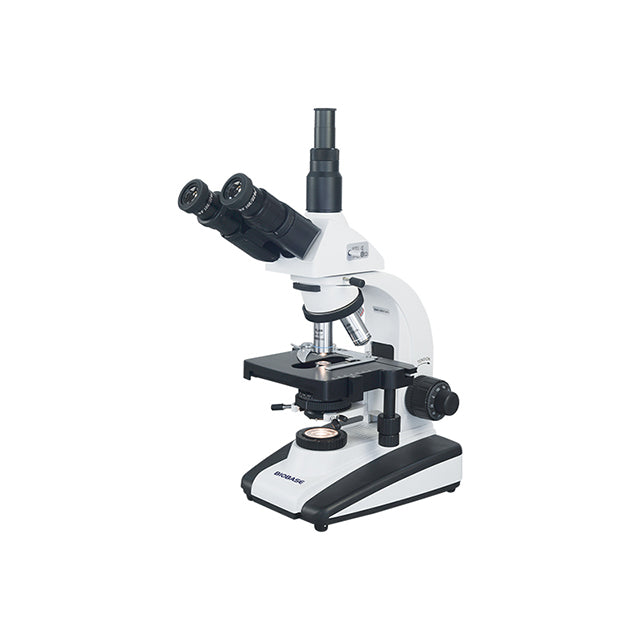

Trinocular UIS Biological Microscope BM-20A
Technical Parameters:
| Model |
BM-20A |
| Optical System |
Infinite optical system |
| View Head |
Compensation Free Trinocular Head, Inclined at 30°, 360° rotatable, interpupillary 55~75mm |
| Eyepiece |
P10X/22mm, P16X/15mm |
| Infinite Plan Achromatic Objective |
4X N.A=0.10 WD=20.00mm |
| 10X N.A=0.25 WD=13.50mm |
| 40X N.A=0.65 WD=0.68mm |
| 100X(Oil) N.A=1.25 WD=0.20mm |
| Focusing |
Coaxial Coarse ＆ Fine Adjustable System, Range 30mm, Fine Division 0.002mm |
| Stage |
Double Layers Mechanical Stage 155*145mm, Moving Range 80*50mm |
| Condenser |
Abbe NA1.25 centerable condenser with Iris Diaphragm ＆ Filter |
| Illumination |
Halogen lamp 6V/20W, Kohler illumination, brightness adjustable |
| Filter |
Blue, yellow, green |
| Power Supply |
AC85~265V， 50/60Hz |
| Package Size |
335*260*560mm |
| Gross Weight |
10kg |
UIS biomicroscope is widely used in research institutes of biology, cytology, histology, pharmaceutical chemistry, etc. It can perform three routine examinations in medicine, and can be used by research institutes, colleges and universities in the laboratory.
