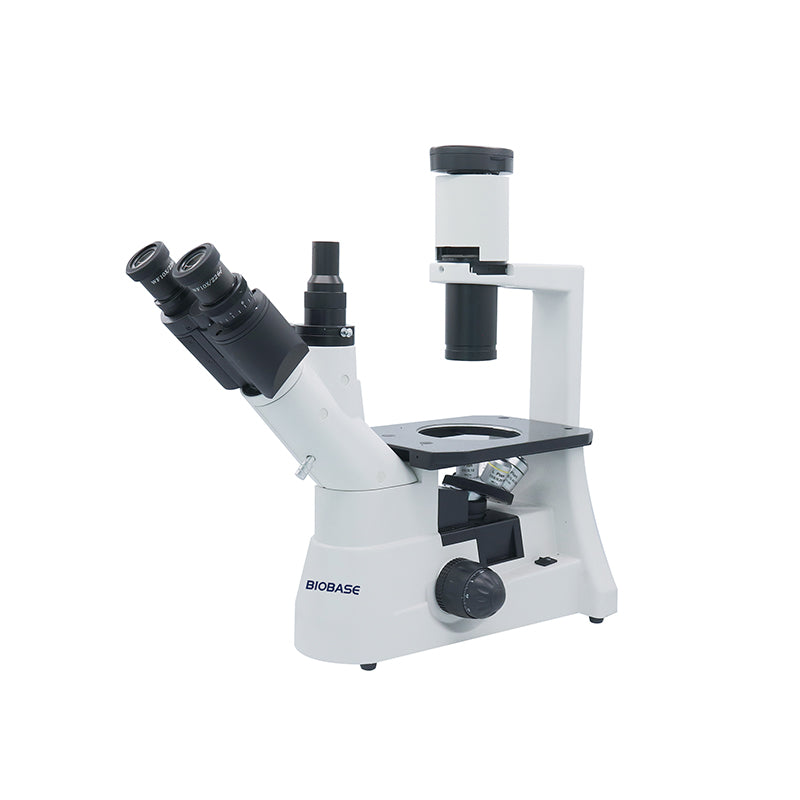

Trinocular Inverted Microscope BK-TIM37XC
Technical Parameters:
| Model |
BK-37XC |
| Optical System |
Infinite optical system |
| View Head |
Compensation free trinocular head, Inclined at 30°, 360° rotatable, Interpupillary 55~75mm |
| Eyepiece |
P10X/22mm, P16X/15mm |
| Objective |
Infinite Plan Achromatic Objective |
4X N.A=0.10 WD=25.00mm |
| 40X N.A=0.60 WD=3.30mm |
| Infinite Plan Phase Objective |
10X N.A=0.25 WD=8.10mm |
| 20X N.A=0.40 WD=4.80mm |
| 40X(Optional) |
| Focusing |
Coaxial coarse ＆ fine adjustable system, pinion and rack adjustable, fine division 0.002mm |
| Stage |
242*172mm, glass slide ø110mm, moving range 120*75mm |
| Condenser |
ELWD Condenser with Iris Diaphragm ＆ Filter, LWD 75mm |
| Illumination |
Halogen lamp 12V/30W, brightness adjustable |
| Power Supply |
AC85~265V， 50/60Hz |
| Package Size |
655*305*630mm |
| Gross Weight |
14kg |
Biobaseinverted microscopes deliver excellent ergonomics, top quality optics, crisp images and configurability to meet your needs.
