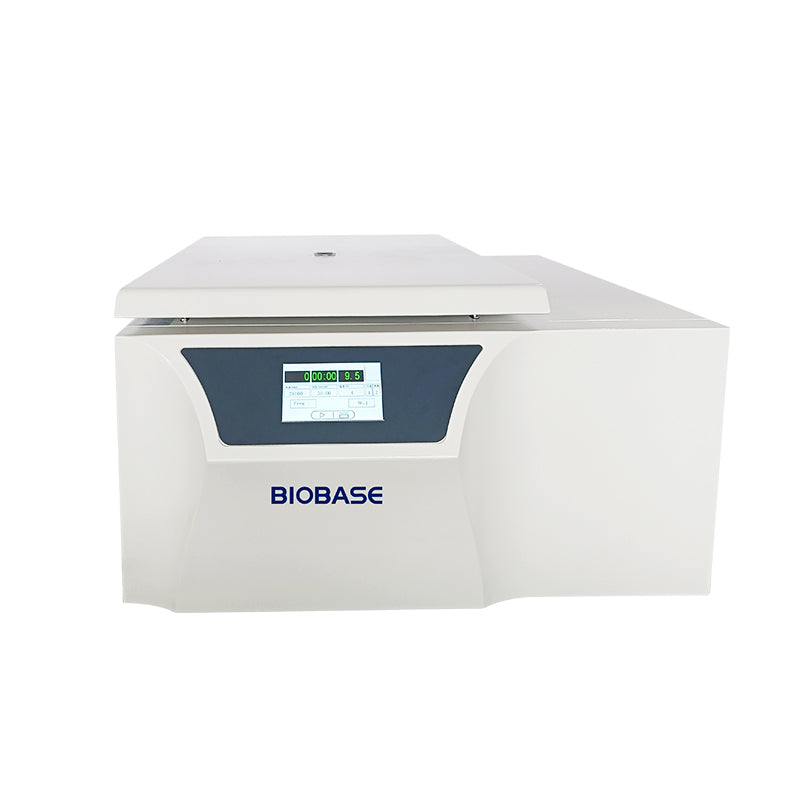

Table Top Low Speed Refrigerated Centrifuge BKC-TL6RD
Features:
*5-inch high-definition touch screen, easily operated,visual display.
*Automatically identify 4 kinds of different rotors, eliminate hidden danger brought by users' maloperation.
*9 ranges for raising speed,10 ranges for speed reduction,to effectively avoid secondary sedimentation, with better centrifugation effect.
* Available to store 15 series of procedure for users to adjust
*AC frequency conversion motor, high precision of rotary speed control. Freon-free compressor import from Europe
* Diverse protection setting: over speed, door protection,imbalance protection, to ensure safety of both human and machine.
*Free conversion between rotary speed and centrifugal force.
Model:
| Model |
BKC-TL6RD |
| Max. Speed |
6000rpm |
| Max. RCF |
3800×g |
| Max. Capacity |
4*500mL |
| Motor |
AC frequency conversion motor |
| Speed Accuracy |
±30r/min |
| Time Range |
Centrifugal time:1min～99 min59sec
Continuous centrifuge: Hold
|
| Temperature Range |
-20℃～+40℃ |
| Temperature Accuracy |
±1.0℃ |
| Power Supply |
AC220±22V 50/60Hz (Standard);110V 60Hz (Optional) |
| Noise |
< 60dB(A) |
| External Size (L*D*H) |
720*743*410mm |
| Net Weight |
110kg |
| Package Size (L*D*H) |
810*825*570mm |
| Gross Weight |
120kg |
Rotor:
| No. |
Rotor |
Speed(rpm) |
RCF (xg) |
Capacity |
Dimension of Tube (mm) |
| NO.1 |
Swing Rotor
|
4000 |
2810 |
4*2*100ml
(Optional adapter)
|
Φ37.5*123
|
| 4000 |
2810 |
4*100ml
(Optional adapter)
|
Φ37.5*123
|
| 4000 |
2810 |
4*2*50ml |
Φ29*107 |
| 4000 |
2810 |
4*50ml |
Φ29*107 |
| 4000 |
2810 |
4*8*15ml |
Φ17*118 |
| 4*6*15ml |
Φ17*118 |
| 4*4*15ml |
Φ17*118 |
| NO.2 |
Swing Rotor
|
4200 |
3500 |
4*250ml |
Φ62*110 |
| NO.3 |
Microplate Rotor |
4000 |
2000 |
2*2*96well |
Microplate
|
| NO.4 |
Swing Rotor
|
4000 |
2800 |
4*12*7/5ml |
Φ13*110 |
| NO.5 |
Swing Rotor
|
4000 |
2800 |
4*18*7/5ml |
Φ13*110 |
| NO.6 |
Swing Rotor
|
4000 |
2800 |
4*24*7/5ml |
Φ13*110 |
| NO.7 |
Angle Rotor |
6000 |
3800 |
6*50ml |
Φ29*120 |
| NO.8 |
Angle Rotor |
6000 |
3300 |
12*10ml |
Φ16*83 |
