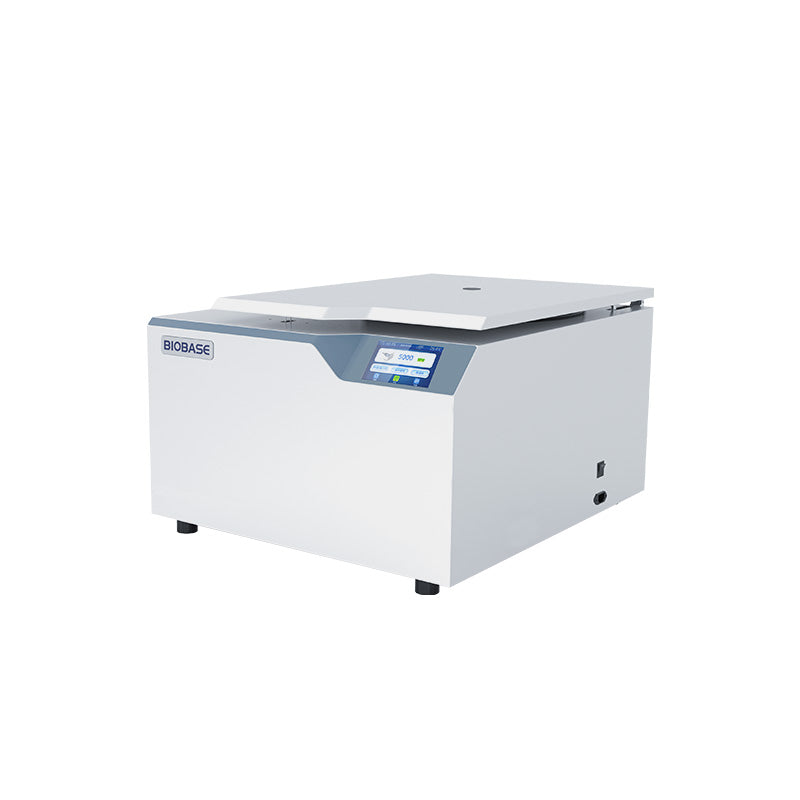

Table Top Low Speed Refrigerated Centrifuge BKC-TL6CR
Features:
* Adopts CFC-free compressor unit and environmentally friendly refrigerant R404a, with a wide temperature range: -20℃~+40 ℃, temperature adjustable during running. With refrigeration function, quickly lower the temperature the setting temperature. With standby cooling function, the set temperature can be maintained in standby state.
* Whole metal structure and multi-layer explosion-proof, safe and durable, to ensure the safety of operators.
* Rotors are made of high-strength aluminum alloy and can be disinfected at high temperature and pressure.
* Embedded microprocessor control, DC brushless motor drive, maintenance-free,
good shock-absorbing, stable operation.
* 5-inch LCD touch screen, real-time display of all parameters, the operation interface is intuitive and simple.
* Electromechanical integration door lock, safe and reliable.
* Integral food-grade silicone sealing ring is used to avoid aerosol overflow and ensure the safety of operator.
* With self-test, blocking, over-speed, over-temperature and other alarm functions, excellent shock-absorb, the motor runs smoothly.
* 100 groups of user-defined programs, easy to use common programs, boot for the last program.
* 10 kinds of lifting speed are available, fast lifting speed.
* Equipped with a variety of angle rotors and adapters, suitable for 0.2ml-500ml centrifugal tube, according to actual needs, to achieve a multi-purpose machine.
Technical Parameters:
| Model |
BKC-TL6CR |
| Max. Speed |
6000rpm |
| Speed Accuracy |
±10 rpm |
| Max. RCF |
4387×g |
| Max. Volume |
4*500ml |
| Refrigeration System |
CFC-free compressor, R404a |
| Timing Range |
1s-99min59s/Continuous/Short-span |
| Temp. Range |
-20℃~+40℃ |
| Temp. Accuracy |
±1℃ |
| Noise |
≤65dB |
| Power Supply |
AC220V, 50/60Hz |
| Rated Power |
1200W |
| External Size(L*W*H) |
785*670*445mm |
| Package Size(L*W*H) |
815*915*850mm |
| Net Weight |
105kg |
| Gross Weight |
130kg |
Rotors:
| NO. |
Rotors Type |
Volume |
Max. Speed(rpm) |
Max. RCF(×g) |
Adapters |
| 5M00024 |
Swing Rotor |
48*2/3/4/5/7ml vacuum blood collection tube |
4000 |
2952 |
|
| 5M00025 |
48*5/7ml vacuum blood collection tube |
2952 |
2/3/4ml vacuum blood collection tube |
| 5M00026 |
72*2/3/4/5/7ml vacuum blood collection tube |
2808 |
|
| 5M00027 |
96*2/3/4/5/7ml vacuum blood collection tube |
3104 |
|
| 5M00028 |
120*2/3/4/5/7ml vacuum blood collection tube |
3327 |
|
| 5M00029 |
16*10/15ml |
2957 |
2/3/4ml vacuum blood collection tube, 5/7ml vacuum blood collection tube, 5ml, 7ml |
| 5M00030 |
24*10/15ml |
2957 |
2/3/4ml vacuum blood collection tube, 5/7ml vacuum blood collection tube, 5ml, 7ml |
| 5M00031 |
32*10/15ml |
2952 |
2/3/4ml vacuum blood collection tube, 5/7ml vacuum blood collection tube, 5ml, 7ml |
| 5M00056 |
36*10ml |
2862 |
|
| 5M00057 |
64*10ml |
3220 |
|
| 5M00032 |
4*50ml |
4500 |
3747 |
50ml(▲), 20ml, 15ml, 10ml, 5ml, 1.5ml |
| 5M00033 |
8*50ml |
4000 |
2952 |
| 5M00034 |
4*100ml |
4500 |
3894 |
2/3/4ml vacuum blood collection tube, 5/7ml vacuum blood collection tube |
| 5M00036 |
8*100ml |
4000 |
3077 |
2/3/4ml vacuum blood collection tube, 5/7ml vacuum blood collection tube |
| 5M00038 |
4*250ml |
2780 |
48*1.5/2ml, 40*2/3/4/5/7ml vacuum blood collection tube, 24*10ml(▲), 28*10ml, 20*15ml, 4*50ml(▲), 8*50ml(●), 4*100ml |
| 5M00058 |
4*300ml |
3220 |
|
| 5M00039 |
4*500ml |
3130 |
48*2/3/4/5/7ml vacuum blood collection tube, 36*10ml, 36*15ml, 12*50ml |
| 5M00041 |
4*750ml |
3399 |
|
| 5M00047 |
Auto uncap swing rotor |
48*2/3/4/5/7ml vacuum blood collection tube(Auto uncap) |
3220 |
|
| 5M00045 |
Swing ELISA Plate Rotor |
2*2*96 well |
2361 |
|
| 5M00060 |
PRP Swing Rotor |
4*10ml conventional syringe |
4300 |
3401 |
|
| 5M00061 |
4*20ml conventional syringe |
3649 |
|
| 5M00072 |
Angle Rotor |
12*20ml |
5000 |
3516 |
15ml, 10ml, 5ml, 1.5ml |
| 5M00073 |
12*15ml |
3354 |
1.5ml |
| 5M00074 |
8*15/20ml |
2655 |
1.5ml |
| 5M00075 |
24*10ml |
3354 |
1.5ml, 2/3/4ml vacuum blood collection tube |
| 5M00076 |
18*10ml |
3354 |
| 5M00077 |
12*10ml |
3354 |
| 5M00083 |
12*10/15ml |
6000 |
4387 |
|
| 5M00084 |
6*50ml |
3904 |
50ml(▲), 20ml, 15ml, 10ml, 5ml, 1.5ml |
