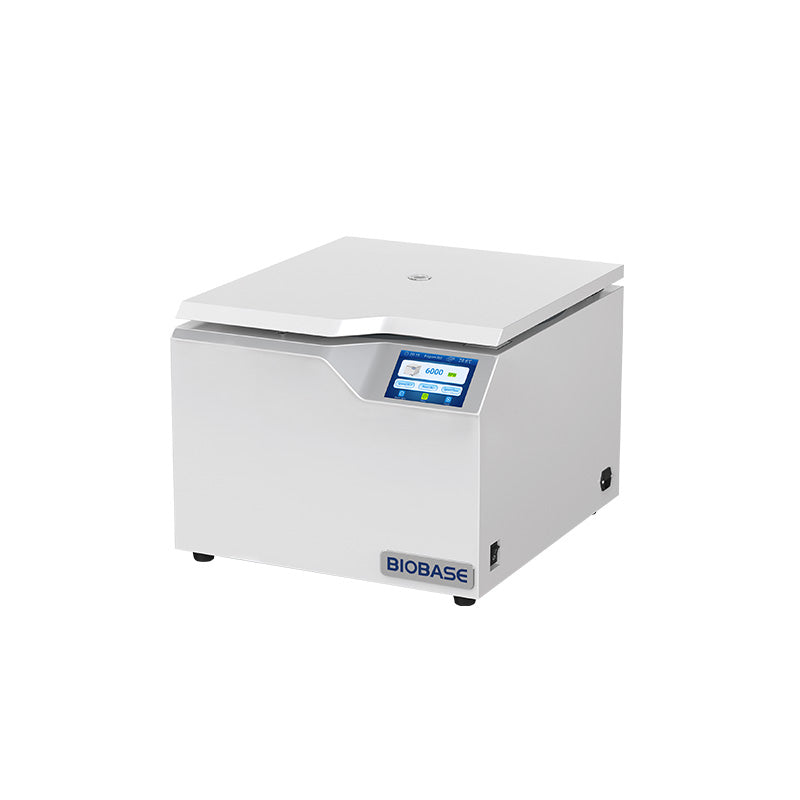

Table Top Low Speed Large Capacity Centrifuge BKC-TL6C
Features:
* Whole metal structure and multi-layer explosion-proof, safe, durable, to ensure the safety of operators.
* Embedded microprocessor control, DC brushless motor drive, maintenance-free,
good shock-absorbing, stable operation.
* Push-botton program design, 5-inch LCD touch screen, supporting Chinese and English switching function, minority language can be customized, real-time display of all parameters, the operation interface is intuitive and simple.
* Electromechanical integration door lock, safe and reliable.
* Integral food-grade silicone sealing ring is used to avoid aerosol overflow and ensure the safety of operator.
* With self-test, blocking, overspeed, overtemperature and other alarm functions, excellent shock-absorb, the motor runs smoothly.
* Multiple groups of user-defined programs, easy to use common programs, boot for the last program.
* Equipped with a variety of angle rotors and adapters, suitable for 0.2ml-750ml centrifugal tube, according to actual needs, to achieve a multi-purpose machine.
Technical Parameters:
| Model |
BKC-TL6C |
| Max. Speed |
6000rpm |
| Speed Accuracy |
±10 rpm |
| Max. RCF |
4387×g |
| Max. Volume |
4×500ml |
| Timing Range |
1s-99min59s/Continuous/Short-span |
| Noise |
≤65dB |
| Power Supply |
AC220V, 50/60Hz |
| External Size(L×W×H) |
500×620×410mm |
| Package Size(L×W×H) |
620×740×700mm |
| Net Weight |
56kg |
| Gross Weight |
70kg |
Rotors:
| NO. |
Rotors Type |
Volume |
Max Speed(rpm) |
Max RCF(×g) |
Adapters |
|
5M00024 |
Swing Rotor |
48×2/3/4/5/7ml vacuum blood collection tube |
4000 |
2952 |
/ |
| 5M00025 |
48×5/7ml vacuum blood collection tube |
2952 |
2/3/4ml vacuum blood collection tube |
| 5M00026 |
72×2/3/4/5/7ml vacuum blood collection tube |
2808 |
/ |
| 5M00027 |
96×2/3/4/5/7ml vacuum blood collection tube |
3104 |
/ |
| 5M00028 |
120×2/3/4/5/7ml vacuum blood collection tube |
3327 |
/ |
| 5M00029 |
16×10/15ml |
2957 |
2/3/4ml vacuum blood collection tube、5/7ml vacuum blood collection tube、5ml、7ml |
| 5M00030 |
24×10/15ml |
2952 |
2/3/4ml vacuum blood collection tube、5/7ml vacuum blood collection tube、5ml、7ml |
| 5M00031 |
32×10/15ml |
2952 |
2/3/4ml vacuum blood collection tube、5/7ml vacuum blood collection tube、5ml、7ml |
| 5M00056 |
36×10ml |
2862 |
/ |
| 5M00057 |
64×10ml |
3220 |
/ |
| 5M00032 |
4×50ml |
4500 |
3747 |
50ml(▲)、20ml、15ml、10ml、5ml、1.5ml |
| 5M00033 |
8x50ml |
4000 |
2952 |
| 5M00034 |
4×100ml |
4500 |
3894 |
2/3/4ml vacuum blood collection tube、5/7ml vacuum blood collection tube |
| 5M00036 |
8×100ml |
4000 |
3077 |
2/3/4ml vacuum blood collection tube、5/7ml vacuum blood collection tube |
| 5M00038 |
4×250ml |
2780 |
48x1.5/2ml、40x2/3/4/5/7ml vacuum blood collection tube、28x10ml、4x50ml（▲）、8x50ml（●）、4x100ml |
| 5M00058 |
4×300ml |
3220 |
|
| 5M00039 |
4x500ml |
3130 |
48x2/3/4/5/7ml vacuum blood collection tube、36x10ml、36x15ml、12x50ml |
| 5M00041 |
4x750ml |
3399 |
/ |
| 5M00025 |
Auto Uncap Swing Rotor |
80×2/3/4/5/7ml vacuum blood collection tube（Auto uncap） |
3220 |
/ |
| 5M00026 |
108×2/3/4/5/7ml vacuum blood collection tube（Auto uncap） |
3399 |
/ |
| 5M00045 |
Swing Microplate Rotor |
2x2x96 well |
2361 |
/ |
| 5M00060 |
PRP Swing Rotor |
4×10ml conventional syringe |
4300 |
3401 |
/ |
| 5M00061 |
4×20ml conventional syringe |
3649 |
/ |
| 5M00072 |
Angle Rotor |
12×20ml |
5000 |
3516 |
15ml、10ml、5ml、1.5ml |
| 5M00073 |
12×15ml |
3354 |
1.5ml |
| 5M00074 |
8×15/20ml |
2655 |
1.5ml |
| 5M00075 |
24×10ml |
3354 |
1.5ml、2/3/4ml vacuum blood collection tube |
| 5M00076 |
18×10ml |
3354 |
| 5M00077 |
12×10ml |
3354 |
| 5M00083 |
12×10/15ml |
6000 |
4387 |
2/3/4ml vacuum blood collection tube |
| 5M00084 |
6×50ml |
3904 |
50ml（▲）、20ml、15ml、10ml、5ml、1.5ml |
