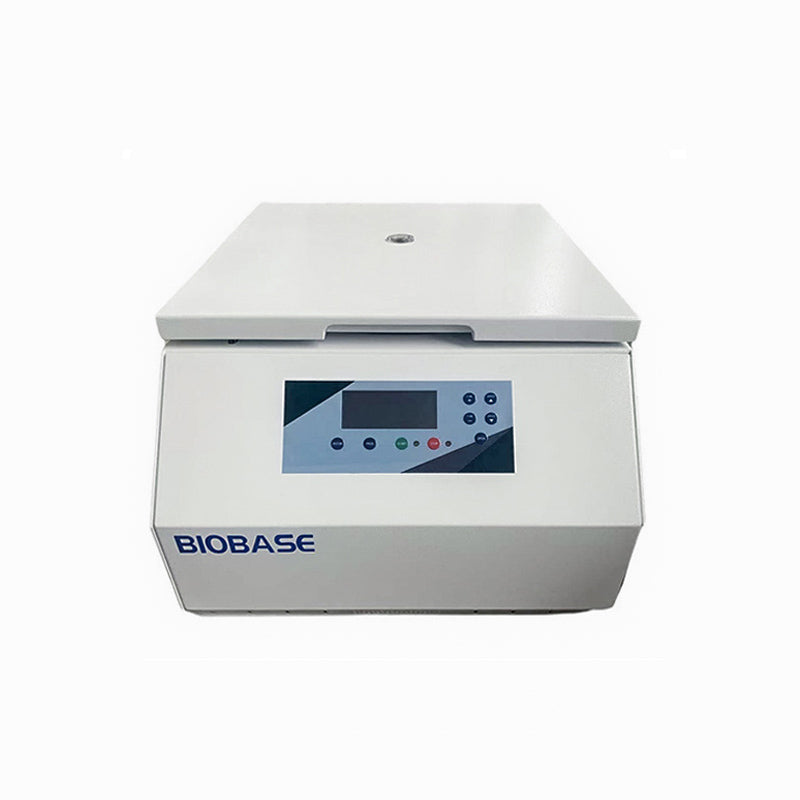

Table Top Low Speed Centrifuge BKC-TL5M
Application：
It is often used for separating serum, plasma, precipitated protein or urine sediment examination.
Fetures:
* It can store 20 programs, automatic memory from the last running programs.
* Power failure self-recovery, improve efficiency.
* The program is adjustable during running, convenient and fast;
* Adjustable acceleration levels: 10, deceleration levels: 10.
* Large torque frequency conversion motor direct drive, no carbon powder pollution, maintenance free, long service life.
* OLED LCD digital display, real-time display of all operating parameters.
* Multi-stage shock absorption, overspeed, unbalanced, door cover multiple protection, fault self-inspection, safe and reliable.
* Program memory function, automatic memory of the last running parameters,
* English and Chinese could be change freely.
* Centrifugal complete automatic door opening and remind.
Technical Parameters:
| Model |
BKC-TL5M |
| Max. Speed |
5000rpm |
| Max. Capacity |
4*500ml |
| Max. RCF |
4390xg |
| Temp. Range |
Normal Temperature |
| Speed Precision |
±1%rpm or ±20rpm |
| Time Range |
1～999min |
| Noise |
≤65dB |
| Power Supply |
AC 220±10%V ,50/60±10%Hz |
| Consumption |
550W |
| External Size(L*W*H)mm |
620*450*350 |
| Net Weight/Gross Weight(kg) |
45/60 |
Rotor:
with mark(●) is round-bottom tube, with mark(▲) is sharp-bottom tube. We can do custom adapter according the user's requirements.
| No. |
Rotor |
Capacity |
Max.Speed(rpm) |
Max.RCF(xg) |
| No.1 |
Swing Rotor |
4*9*15ml basket |
4000 |
3580 |
| No.2 |
4*12*5ml vacuum tube basket |
4000 |
| No.3 |
4*1*250ml basket |
4000 |
| No.4 |
4*8*15ml(▲)basket |
4000 |
| No.5 |
4*1*50ml(basket) |
5000 |
| No.6 |
4*2*50ml(basket) |
4000 |
| No.7 |
4*3*50ml(basket) |
4000 |
| No.8 |
4*1*100ml(●)basket |
4000 |
| No.9 |
4*1*100ml(▲)basket |
4000 |
| No.10 |
4*2*100ml basket |
4000 |
| No.11 |
4*4*30ml(●)PP basket |
4000 |
| No.12 |
4*8*15ml basket |
4000 |
| No.13 |
4*12*10ml basket |
4000 |
| No.14 |
4*250ml basket |
4000 |
| No.15 |
4*20*2ml vacuum tube（L80mm) |
4000 |
| No.16 |
4*20*5ml vacuum tube (L106mm) |
4000 |
| No.17 |
4*24*2ml vacuum tube |
4000 |
| No.18 |
4*24*5ml vacuum tube (L75mm) |
4000 |
| No.19 |
4*24*5ml vacuum tube (L100mm) |
4000 |
| No.20 |
4*24*5ml vacuum tube( L106mm) |
4000 |
| No.21 |
4*20*7ml PP transparency tube rack |
4000 |
3500 |
| No.22 |
4*16*10ml tube rack |
4000 |
| No.23 |
4*25*1.5ml tube rack |
4000 |
| No.24 |
4*2*50ml basket |
4000 |
3200 |
| No.25 |
4*9*10ml basket |
4000 |
2810 |
| No.26 |
4*1*50ml basket |
5000 |
4390 |
| No.27 |
4*1*100ml basket |
| No.28 |
4*50ml PRP cup |
4000 |
3200 |
| No.29 |
4*2*50ml(▲) |
4000 |
3500 |
| No.30 |
4*4*50ml tube rack |
4000 |
| No.31 |
4*10*5ml vacuum tube (L106mm) |
4000 |
| No.32 |
4*12*5ml vacuum tube(L75mm) |
4000 |
| No.33 |
4*12*5ml vacuum tube(L80mm） |
4000 |
| No.34 |
4*12*5ml vacuum tube(L100mm） |
4000 |
| No.35 |
4*12*5ml vacuum tube (L106mm) |
4000 |
| No.36 |
4*18*5ml vacuum tube （L106mm） |
4000 |
| No.37 |
4*20 *5ml |
4000 |
| No.39 |
Microplate Rotor |
2*2*96well |
4000 |
2300 |
| No.1 |
Angle Rotor |
4*50ml |
5000
|
2520 |
| No.2 |
4*100ml |
2630 |
| No.3 |
6*50ml |
2850 |
| No.4 |
8*15ml |
2600 |
| No.5 |
12*5/7ml |
3080 |
| No.6 |
12*10ml |
| No.7 |
12*15ml |
| No.8 |
18*10ml |
2810 |
| No.9 |
24*10ml |
3500 |
| No.10 |
30*5/7ml |
