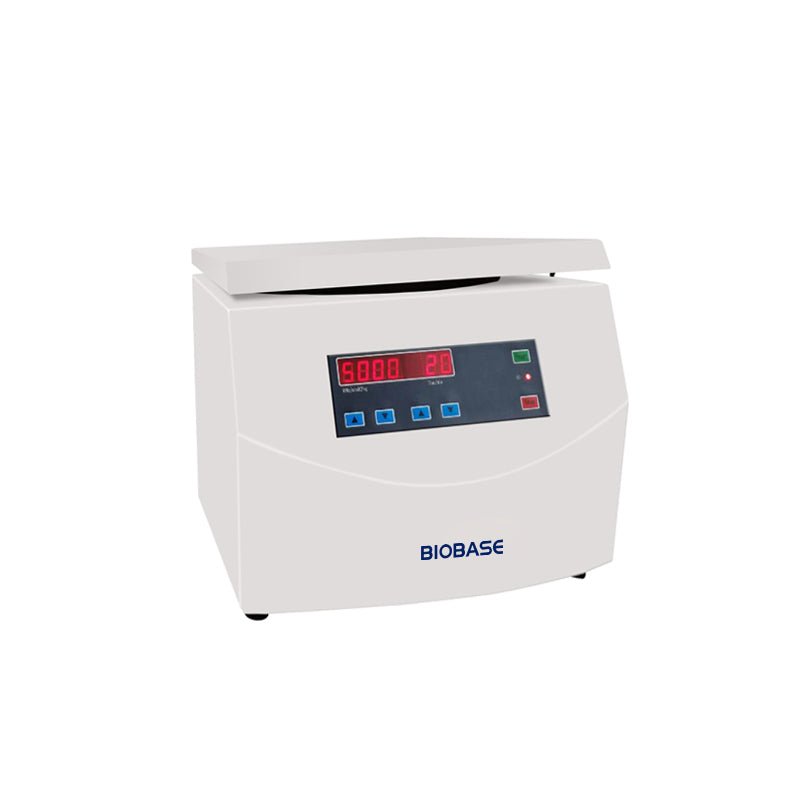

Table Top Low Speed Centrifuge BKC-TL4IV
Features for BKC-TL4IV:
*Maintenance-free brushless DC motor.
*Microprocessor control,LED display.
*Stainless steel chamber.
*Rotor recognition system, Automatically electric lid lock,over speed, over temperature, and imbalance protection.
Features for BKC-TL5VII:
*DC Brushless motor, special damping device make the motor run steady, free maintenance.
*Display: microprocessor control,LED display of running parameters,10rpm increments, conversion of RPMRCF.Function: automatically electric lid lock, over speed, over
temperature and imbalance protection, memory flashing function.*Alarm: over speed, rotor mounting abnormally.
External cold-rolled steel with powder coating, stainless steel centrifugal chamber and lid.
Model:
| Model |
BKC-TL4IV |
BKC-TL5VI |
| Max.Capacity |
6*50ml |
| Max.Speed |
4000rpm |
5000rpm |
| Speed Precision |
±30rpm |
±30rpm |
| Timing Range |
0~99min |
0~99min |
| Noise |
<65dB |
<58dB |
| Consumption |
250W |
300w |
| Power Supply |
AC110/220V,50/60Hz |
| External Size(W*D*H)mm |
450*340*250 |
430*340*250 |
| Package Size(W*D*H)mm |
600*430*340 |
580*420*330 |
| Net/Gross Weight(kg) |
20/22 |
17/22 |
Rotor:
| Model |
BKC-TL4IV |
| Rotor No. |
Rotor |
Capacity |
Max.Speed(rpm) |
Max.RCF(xg) |
| No.1 |
Angle Rotor |
18*10ml |
4000 |
2200 |
| No.2 |
24*10ml |
| No.3 |
12*15/10ml |
| No.4 |
6*50ml |
| Model |
BKC-TL5VII |
| Rotor No. |
Rotor |
Capacity |
Max.Speed(rpm) |
Max.RCF(xg) |
| No.1 |
Angle Rotor |
24*10ml |
5000 |
4020 |
| No.2 |
12*15ml |
5000 |
| No.3 |
12*20ml |
5000 |
| No.4 |
6*50ml |
5000 |
