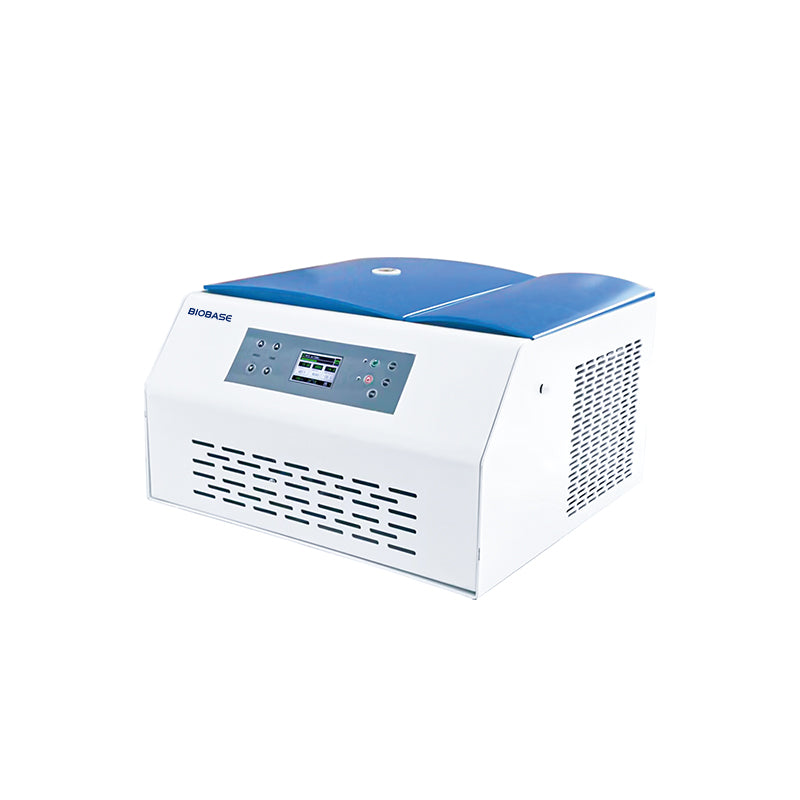

Table Top High Speed Refrigerated Centrifuge BKC-TH16RM
Features
1.The whole machine adopts all-steel body, stainless steel centrifugal chamber, compact structure and low noise
2.Using high-quality rubber door seals, good sealing performance
3.Button programming design, real-time display of all operating parameters, intuitive operation
4.Embedded microprocessor control, precise control of all parameters
5.The refrigerated centrifuge adopts fluorine-free compressor unit, R404A refrigerant, strong refrigeration capacity
6.Equipped with door cover protection and advanced electronic unbalance detection system, real-time monitoring of the centrifuge process to ensure the safe operation of the instrument
7.Equipped with a variety of rotors to meet different experimental requirements, one machine with multiple functions
Technical Parameters
|
Model
|
BKC-TH16RM
|
|
Max. Speed
|
16000rpm
|
|
Max. RCF
|
20878*g
|
|
Max. Capacity
|
6*100ml
|
|
Timing Range
|
1s-999min
|
|
Speed Precision
|
±30rpm or ±1%, choose higher one
|
|
Power Supply
|
Standard: 220V 50/60Hz, Optional: 110V 50/60Hz, external transformer
|
|
Noise
|
≤65dB (A)
|
|
Temperature Range
|
-20~+40℃
|
|
External Size
|
600*560*380mm
|
|
Net Weight
|
56kg
|
|
Packing Size
|
800*800*700mm
|
|
Gross Weight
|
90kg
|
Rotor Parameters
|
No.
|
Rotor
|
Capacity
|
Max. Speed(rpm)
|
Max. RCF
|
|
No.1
|
Angel rotor
|
12*1.5/2ml
|
16000
|
17750*g
|
|
No.2
|
20*1.5/2ml
|
15000
|
17860*g
|
|
No.3
|
24*1.5/2ml
|
15000
|
20878*g
|
|
No.4
|
30*1.5/2ml
|
13500
|
18950*g
|
|
No.5
|
48*1.5/2ml
|
11000
|
12720*g
|
|
No.6
|
30*0.5ml
|
15000
|
18620*g
|
|
No.7
|
40*0.5ml
|
14000
|
19940*g
|
|
No.8
|
10*5ml
|
16000
|
17800*g
|
|
No.9
|
4*8 PCR tube
|
14000
|
13720*g
|
|
No.10
|
6*10ml
|
12000
|
14000*g
|
|
No.11
|
12*10ml
|
12000
|
14520*g
|
|
No.12
|
6*50ml
|
10000
|
11140*g
|
|
No.13
|
4*100ml
|
8000
|
6598*g
|
|
No.14
|
6*100ml
|
8000
|
7283*g
|
