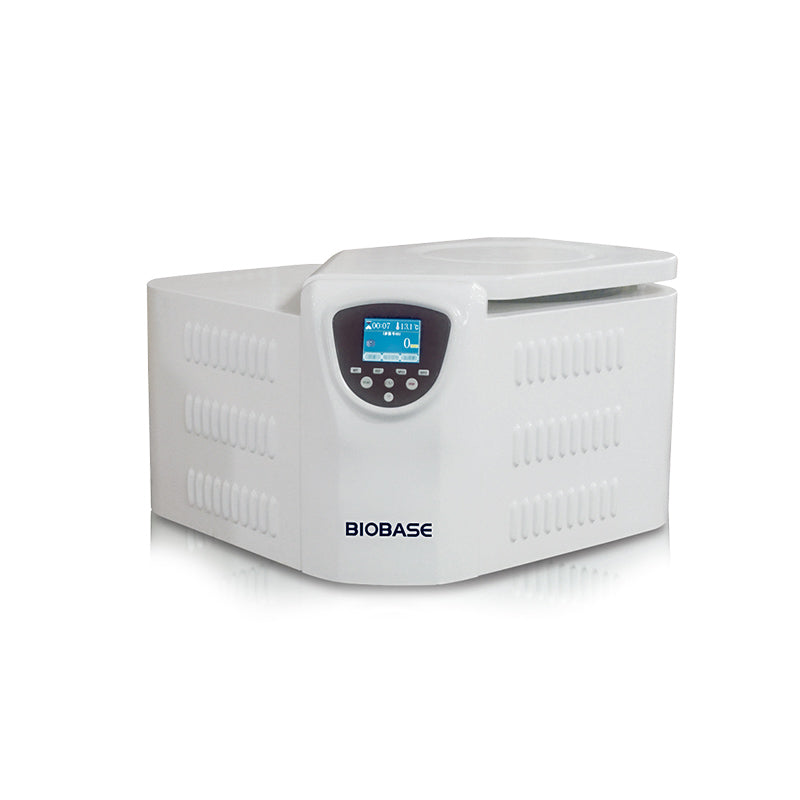

Table Top High Speed Refrigerated Centrifuge BKC-TH16RIII BKC-TH20RIII
Features:
*Maintenance-free brushless motor.
*Unbalance, over-speed, over-heat protection.*LCD display.
*With motor gate lock mute mechanical & electrical integration.*Provide more than 100 kinds of operating models.
*10 levels for speed-up and speed-down control.
Model：
| Model |
BKC-TH16RIII |
BKC-TH20RIII |
| Max.Capacity |
4*100ml |
| Max.Speed |
16800rpm |
20800rpm |
| Max.RCF |
19600xg |
30000xg |
| Speed Precision |
±50rpm |
| Temp range |
-20~40°℃ |
| Temp accuracy |
±1℃ |
| Timing |
0~99h59min |
| Noise |
≤60dB |
| Power supply |
AC110/220V, 50/60Hz |
| Power consumption |
1.5KW |
| External size(W*D*H)mm |
710*630*350 |
| Packing size(W*D*H) mm |
850*740°570 |
| Net weight(kg) |
75 |
| Gross weight(kg) |
107 |
Rotor：
| Model |
BKC-TH16RIII |
BKC-TH20RIII |
| Angle Rotor |
Speed(rpm) |
RFC(xg) |
Capacity |
Speed(rpm) |
RFC(xg) |
Capacity |
| 16800 |
19600 |
12*1.5/2.0ml |
20800 |
30000 |
12*1.5/2.0ml |
| 14000 |
18180 |
24*1.5/2.0ml |
14000 |
18180 |
24*1.5/2.0ml |
| 14000 |
13600 |
18*1.5ml |
16000 |
17700 |
18*1.5ml |
| 11000 |
12900 |
30*1.5ml |
12000 |
15300 |
30*1.5ml |
| 12000 |
13800 |
48*0.5ml |
13000 |
16300 |
48*0.5ml |
| 13000 |
11700 |
10*5ml |
16000 |
17700 |
10*5ml |
| 12000 |
13400 |
12*10ml |
14000 |
18800 |
12*10ml |
| 12000 |
14800 |
8*15ml |
12000 |
14800 |
8*15ml |
| 11000 |
11600 |
6*50ml |
12000 |
13800 |
6*50ml |
| 9000 |
8500 |
4*100ml |
10000 |
10500 |
4*100ml |
| Microplate |
4000 |
2100 |
4*50ml |
4000 |
2150 |
4*50ml |
| Swing Rotor |
3000 |
1400 |
2*2*48Well |
3000 |
1400 |
2*2*48Well |
