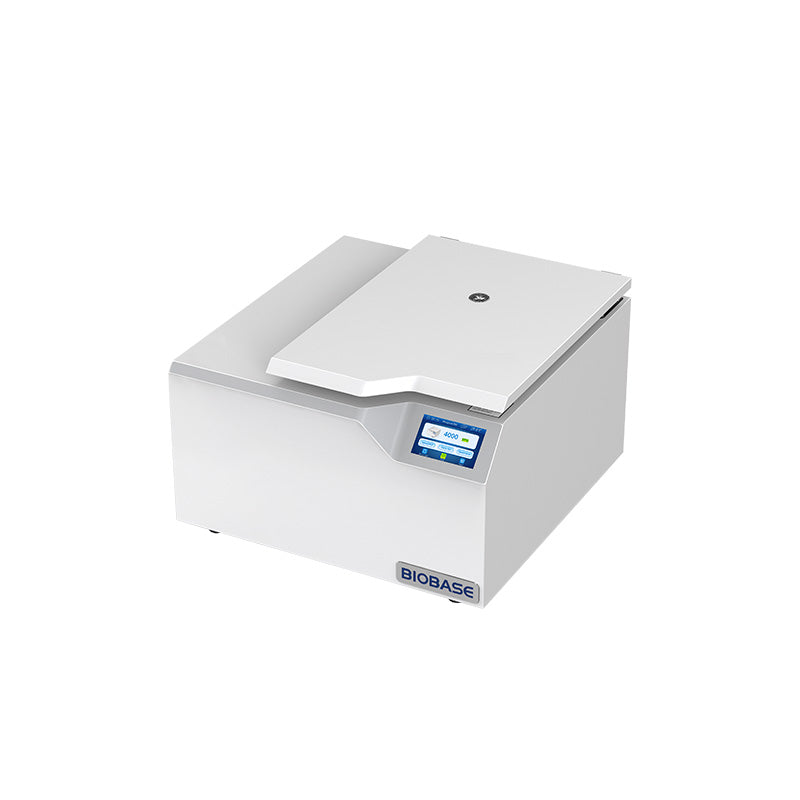

Table Top High Speed Refrigerated Centrifuge BKC-TH16RC-I BKC-TH16RB
Features:
* Whole metal structure and multi-layer explosion-proof, safe, durable, to ensure the safety of operators.
* Embedded microprocessor control, DC brushless motor drive, maintenance-free,
stable operation.
* 5-inch LCD touch screen, supporting switching between Chinese and English and other languages can be coustom.
* Real-time display of all parameters, the operation interface is intuitive and simple.
* Electromechanical integration door lock, safe and reliable.
* Integral food-grade silicone sealing ring is used to avoid aerosol overflow and ensure the safety of operator.
* Adopts CFC-free compressor unit and environmentally friendly refrigerant R404a, with a wide temperature range: -20℃~40 ℃, temperature adjustable during running. With refrigeration function, quickly lower the temperature the setting temperature. With standby cooling function, the set temperature can be maintained in standby state.
* With self-test, blocking, overspeed, overtemperature and other alarm functions, excellent shock-absorb, the motor runs smoothly.
* Multiple groups of user-defined programs, easy to use common programs, boot for the last program.
* Equipped with a variety of angle rotors (aviation forged aluminum) and varieties of adapters, suitable for 0.2ml-10ml centrifugal tube(BKC-TH16RB) and 0.2ml-100ml centrifugal tube(BKC-TH16RC-I), according to actual needs, to achieve a multi-purpose machine.
Technical Parameters:
| Model |
BKC-TH16RC-I |
BKC-TH16RB |
| Max. Speed |
16000rpm |
| Speed Accuracy |
±20 rpm |
| Max. Speed |
21695×g |
19722×g |
| Max. Volume |
4×100ml |
12×10ml |
| Refrigeration System |
CFC-free compressor, R404a |
| Timing Range |
1min-99h59min/Continuous/Short-span |
| Temp. Range |
－20℃～+40℃ |
| Temp. Accuracy |
±1℃ |
| Noise |
≤65dB |
| Power Supply |
AC220V, 50/60Hz |
| External Size(L×W×H) |
606×572×361mm |
| Package Size(L×W×H) |
700×670×560mm |
| Net Weight |
61.5kg |
| Gross Weight |
70kg |
Rotors for BKC-TH16RC-I:
| NO. |
Rotors Type |
Volume |
Max. Speed(r/min) |
Max. RCF(×g) |
Adapters |
| 16M0003 |
Angle Rotor |
8×7ml |
14000 |
16435 |
|
| 16M0004 |
12×10ml(Low Speed） |
6000 |
3743 |
2/3/4/5/7ml blood collection tube、5ml、7ml、10ml(▲) |
| 16M0005 |
12×10ml（High Speed） |
12000 |
14328 |
1.5ml、5ml |
| 16M0006 |
12×1.5/2ml |
16000 |
18031 |
0.2ml、0.5ml |
| 16M0007 |
18×1.5/2ml |
15000 |
18866 |
0.2ml、0.5ml |
| 16M0008 |
24×1.5/2ml |
14000 |
19722 |
0.2ml、0.5ml |
| 16M0090 |
36×1.5/2ml |
13000 |
19159 |
0.2ml、0.5ml |
| 16M0091 |
48×1.5/2ml |
13000 |
19159 |
0.2ml、0.5ml |
| 16M0085 |
40×0.2ml |
16000 |
21695 |
|
| 16M0086 |
24×0.5ml |
16000 |
20035 |
|
| 16M0087 |
30×0.5ml |
13000 |
15210 |
|
| 16M0088 |
40×0.5ml |
13000 |
15267 |
|
| 16M0089 |
4×8×0.2ml |
13000 |
11941 |
|
| 16M0009 |
10×5ml |
14000 |
15339 |
1.5ml |
| 16M00010 |
8×15ml(▲) |
12000 |
15294 |
|
| 16M00011 |
8×15ml(●) |
12000 |
15294 |
|
| 16M00012 |
6×50ml(▲) |
11000 |
13798 |
|
| 16M00013 |
6×50ml(Round/Flat) |
11000 |
13798 |
|
| 16M00022 |
Swing Rotor |
4×100ml |
4000 |
2540 |
|
Rotors for BKC-TH16RB:
| NO. |
Volume |
Max Speed(r/min) |
Max RCF(×g) |
Adapters |
| 16M0003 |
8×7ml |
14000 |
16435 |
|
| 16M0005 |
12×10ml |
12000 |
14329 |
1.5ml、5ml |
| 16M0006 |
12×1.5/2ml |
16000 |
18032 |
0.2ml、0.5ml |
| 16M0007 |
18×1.5/2ml |
15000 |
18867 |
0.2ml、0.5ml |
| 16M0008 |
24×1.5/2ml |
14000 |
19722 |
0.2ml、0.5ml |
| 16M0009 |
10×5ml |
14000 |
15339 |
1.5ml |
