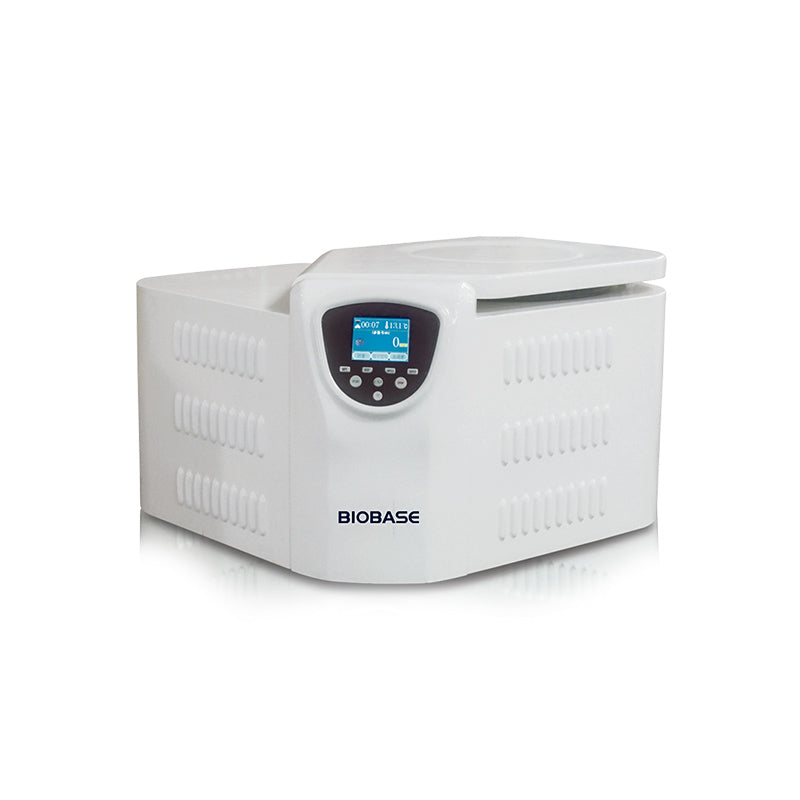

Table Top High Speed Refrigerated Centrifuge BKC-TH12R BKC-TH24RII
Features:
* LCD display: indicating setting parameters and actual parameters.
* Brushless motor: controlled by microchip's dsPIC30F series SCM and driven by FAIRCHILD'S FSBB30CH series driver module.
* Safety: over-speed and over-temperature protection, imbalance detection, shock absorber to keep motor running smoothly, three layers steel structure to secure personnel and machine safety.
* Mute mechatronics motor door lock.
* Over 100 selectable procedures and freely self-defining modes.
Model:
| Model |
BKC-TH12R |
BKC-TH24RII |
| Max. Capacity |
4*100ml |
| Max. Speed |
12000rpm |
24000rpm |
| Max. RCF |
13400xg |
39900xg |
| Speed Precision |
±50rpm |
| Refrigeration System |
CFC-free (R404a) |
| Temp. Range |
-20°C-40°C |
| Temp. Precision |
±1°C |
| Timing Range |
0 〜99h59min |
| Noise |
<60dB |
| Identify Rotor |
Automatic |
| Consumption |
1.5KW |
| Power Supply |
AC110/220V, 50/60HZ |
| External Size(W*D*H) mm |
710*630*350 |
| Package Size(W*D*H) mm |
960*830*550 |
| Net/Gross Weight(kg) |
75/120 |
Rotor:
| Model |
Capacity |
BKC-TH12R |
BKC-TH24RII |
| Speed(rpm) |
RCF(xg) |
Speed(rpm) |
RCF(xg) |
| Angle Rotor |
12*1.5/2.0ml |
12000 |
10000 |
24000 |
39900 |
| 24*1.5/2.0ml |
11500 |
12300 |
16000 |
23800 |
| 18*1.5ml |
/ |
/ |
16000 |
17700 |
| 30*1.5ml |
/ |
/ |
12000 |
15300 |
| 48*0.5ml |
/ |
/ |
13500 |
17500 |
| 10*5ml |
12000 |
10000 |
20000 |
27700 |
| 12*5/10ml |
12000 |
13400 |
15000 |
21600 |
| 8*15ml |
/ |
/ |
12000 |
14800 |
| 6*50ml |
10000 |
9600 |
12000 |
13800 |
| 4*100ml |
/ |
/ |
11000 |
11720 |
| Swing Rotor |
4*50ml |
4000 |
2150 |
/ |
/ |
| 4*100ml |
4000 |
2490 |
/ |
Z |
| Microplate |
2*2*48Well |
/ |
/ |
3000 |
1400 |
