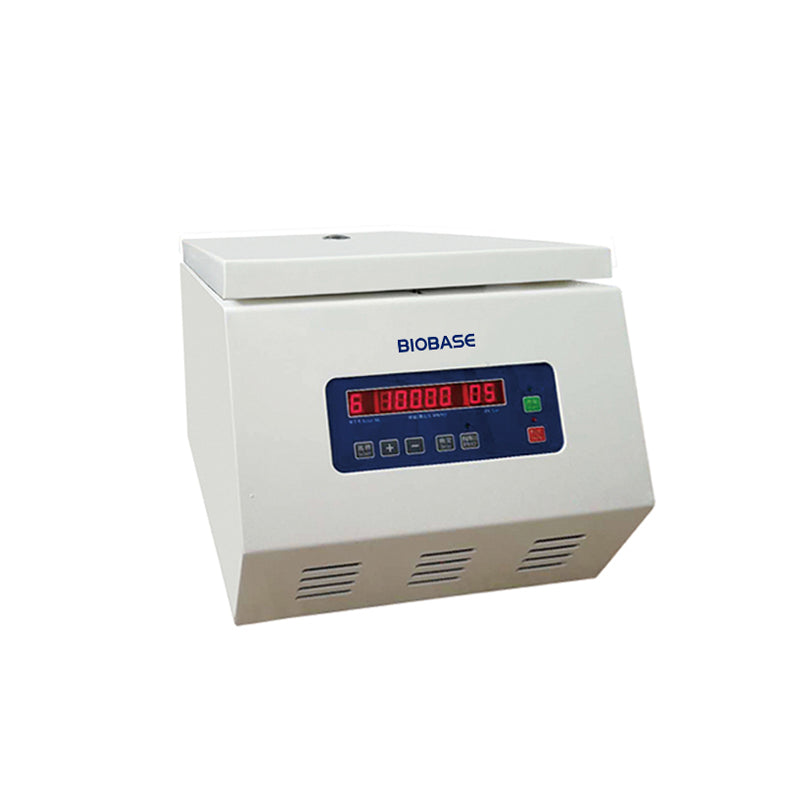

Table Top High Speed Centrifuge BKC-TH16II
Features for BKC-TH16II:
*DC Brushless motor with high start torque and frequency inversion for smooth running, maintenance-free.
*Microprocessor control, LED display, Memory flashing function, conversion of RPM/RCF.
*External cold-rolled steel with powder coating steel, stainless steel centrifugal chamber.
*Procedures of adjustable speed from grad 0 to 9 and 40 kinds of self-defining models.
*Functions: Electronic lock lid, imbalance detection, over-speed protection, inching function, short-spin function.
Model:
| Model |
BKC-TH16II |
| Max. Capacity |
4*100ml |
| Max. Speed |
16600rpm |
| Max. RCF |
19200xg |
| Speed Precision |
±50rpm |
| Timing Range |
0~99min |
| Noise |
<65dB |
| Power Supply |
AC110/220V, 50/60Hz |
| External Size(W*D*H) mm |
400*350*340 |
| Package Size(W*D*H) mm |
690*440*350 |
| Net Weight(kg) |
20 |
| Gross Weight(kg) |
30 |
Rotor:
| Rotor |
BKC-TH16II |
| Speed(rpm) |
RFC(xg) |
Capacity |
| Angle Rotor |
16600 |
19200 |
18*0.5ml |
| 16600 |
19200 |
12*2.2/1.5ml |
| 13000 |
16060 |
48*0.5ml |
| 13000 |
16060 |
24*2.2/1.5ml |
| 13000 |
11500 |
10*5ml |
| 12000 |
14800 |
12*10ml |
| 12000 |
14800 |
6*50ml |
| 10000 |
11220 |
12*15ml |
| 10000 |
11200 |
4*100ml |
| Micro Plate |
4000 |
2300 |
2*2*48 well |
