I-SURGICAL

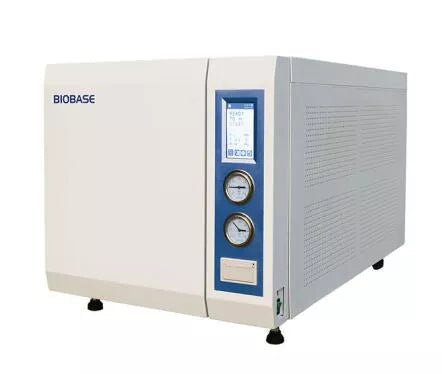

Table Top Autoclave Class B series of BIOBASE BKM-Z60B

Table Top Autoclave Class B series of BIOBASE BKM-Z60B

Medical Grade

Professional environments.

Trusted Brands

Recognized suppliers.

Expert Support

Assistance available.

Reliable Delivery

Dependable shipping.

Product Description

Table Top Autoclave Class B series of BIOBASE BKM-Z60B

Features:

*Brand-new operation interface

The LCD touch screen can display temperature, pressure, time, operating status, error and alarm information, etc .

There are different color changes in each stage of sterilization.

It is convenient for users to observe the sterilizer running status.

More importantly, the fault alarm not only displays the fault code, but also automatically displays the reason analysis and   solution.

*Multiple safety protection devices

Automatic over-temperature protection device, multiple control and protection of evaporator, door safety interlock  protection, double over-pressure protection device, etc.

*Mobile temperature sensor

The mobile temperature probe can directly detect the internal temperature of the liquid to ensure the sterilization effect of    the liquid.

*Automatic door structure

Sterilizer adopts automatic door structure, which is fast and convenient to operate, effectively protects human body and   prevents scalding.

*Vacuuming system

High efficiency vacuum extraction system, low working noise, over -90KPa extreme vacuum, fast extraction speed, good   dryness, more complete sterilization

*A variety of programs

There are exposed procedures, packaging procedures, rubber procedures, dressing procedures, liquid procedures, liquid   customization, solid customization, medium sterilization procedures, B&D testing, vacuum testing and media dissolution   procedures.



*Other features

A. Heating, sterilizing, exhausting and drying totally automatic.

B. Chamber is heated by film heater, saving energy and time.

C. 0.22μm high efficiency air filter,to avoid re-contamination of sterilized materials with filtration efficiency over 99.5%.

D. Water filter in tank and chamber are quick to disassemble and easy for cleaning.

E. Built-in stainless steel water tank, inner cycle of steam and water.

F. Standard built-in printer.

G. Standard USB port.

Model BKM-Z60B
Capacity 60L
Chamber Size(mm) φ386*520
Designed Pressure -0.1/0.28MPa
Sterilization Temperature 105℃~138℃
Chamber Material SUS304
Ambient Temp. 5℃~40℃
Noise ≤65dB
Consumption 6.2KW
Power Supply AC110/220V±10%, 50/60Hz
External Size(W*D*H)mm 805*1140*622
Package Size(W*D*H)mm 910*1310*900
Gross Weight(kg) 195

he LCD touch screen can display temperature, pressure, time, operating status, error and alarm information, etc .

There are different color changes in each stage of sterilization.

It is convenient for users to observe the sterilizer running status.
