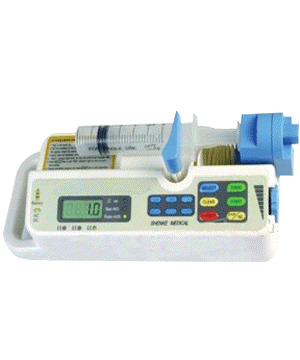

Syringe Driver SP500

Features:

• All standard syringes of10ml20ml50ml are compatible.The machine diagnoses the
  syringe size automatically,and with a simple syringe specification setting,the syringe
  pump can guarantee an accurate and safe injection.
• Unique function of bedside injection supervision which makes patients and their relatives as well as nurses more assured.
• Excellent injection function and operation.Even small-volume injection is accurate.
• Double CPU system ensures safe and reliable injection process.
• Driven by precision step motor,no pulsating waves shall occur during even low-rate
• Accurate and sensitive pressure sensor detects occlusion pressure accurately.
• Alarms are given in case of malfunction or operation error and the machine stops operation automatically.Specifications:



• Feasible injection rate range:10ml:0.1-100ml/h
  20ml:0.1-200ml/h
  50ml:0.1-500ml/h
• Maximum power consumption:25VA,running more than 5h after being fully charged.
• Injection increment:0.1ml/h
• Injection accuracy: ±3%
• Bolus:The fastest rate of the size of syringe in use
• Displayed information:Rate,accumulated injection volume,Syringe size Battery capacity,Bed No.,AC power indicator,Battery charge indicator.
• Accumulated injection volume:0-999.9ml
• Alarm functions:Near,Over,OCCL.,low battery,syringe installation error,control abnormal,machine malfunction.
• Electrical safety:Comply with the requirement of GB9706.1-1995,EN60601-1and UL60601-1
• EMC(Electromagnetic compatibility);Comply with the requirement EN60601-1-2,EN60601-2-24
• Power supply:50/60Hz AC100V-240V
• Maximum weight:<3.0kg
