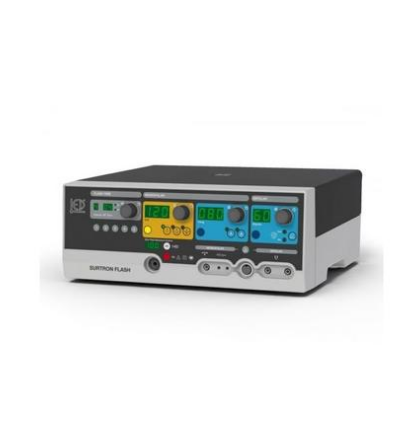

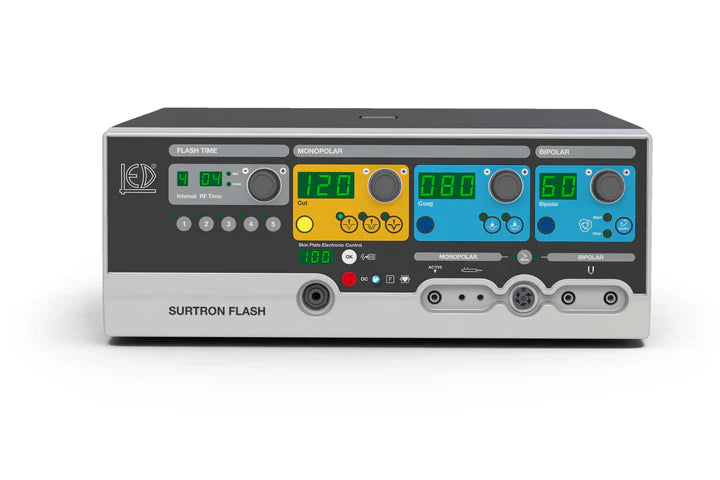

Surtron Flash Diathermy 120W
Surtron Flash Diathermy 120W allows a highly professional surgery thanks to the ergonomic and safety solutions normally utilised.
It is continually monitored the connection of neutral electrode and, if a split neutral electrode is used, the neutral electrode to patient contact.
The possibility to control the output functions, as well as the output power level, by the handle, allows to implement the surgical operation without turning away the surgeon attention from the surgical field.
| SURTRON® FLASH |
120 |
| Maximum output power CUT (W) |
120 → 250Ω |
| Maximum output power BLEND (W) |
90 → 200Ω |
| Maximum output power FORCED COAG (W) |
80 → 150Ω |
| Maximum output power SOFT COAG (W) |
60 → 100Ω |
| Maximum output power BIPOLAR CUT(W) |
40 → 100Ω |
| Working frequency |
600 kHz |
| Mains voltage (Vac) |
115 –230 |
| Mains frequency (Hz) |
50-60 |
| Electrical class (EN60601-1) |
I CF |
| Neutral electrode |
-F- |
| Weight Kg |
8 |
| Size HxLxD mm |
360x150x265 |
Standard Accessories
| SURTRON® FLASH |
120 |
| Electrosurgical unit code |
10300.10A |
| Cable for neutral plate disposable/5365 |
•/1 |
| Kit of assorted electrode length 5cm (10pcs) |
•/1 |
| Manual of instructions |
•/1 |
| Not water-proof foot switch |
•/1 |
| Power supply cable 3x1mm SIE-IEC – 2mt |
•/1 |
| Reusable handle with finger switches |
•/1 |
| Steel neutral electrode |
•/1 |
