PRODUCT FEATURES
General
• Age: Full-term newborn
• Weight: 3.6 kg.
• Length: 53 cm.
• Tetherless and wireless; fully responsive during transport
• Wireless control at distances up to 100 m.
• Internal rechargeable battery provides up to 8 hr. of tetherless operation
• Smooth and supple full- body skin with seamless trunk and limb joints
• Programmable movement: blinking, mouth open and close, arm and leg flexion and extension
• Realistic joint articulation: neck, shoulder, elbow, hip, and knee
• Forearm pronation and supination
• Lifelike umbilicus and post cord detachment navel
• Palpable bony landmarks
• Near-silent operation
• NOELLE® Fetus-Newborn wireless link capability

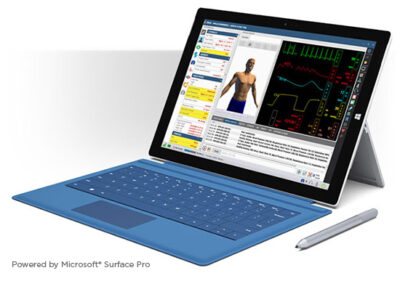

• Tablet PC preloaded with UNI® included
Neurologic

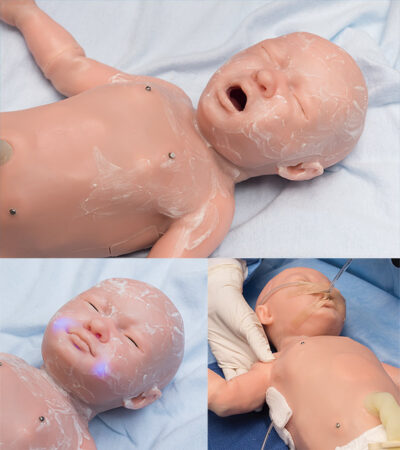

• Crying/grunting with visible mouth movement
• Blinking eyes
• Seizures/convulsions
• Programmable muscle tone: active, reduced, and limp
Airway
• Anatomically accurate oral cavity and airway

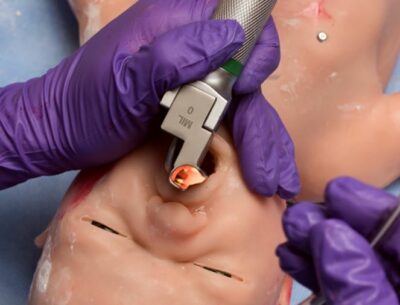

• Nasotracheal/orotracheal intubation (ETT, laryngeal airway)
• Head tilt, chin lift, jaw thrust
• Supports esophageal intubation
• NG/OG tube placement
• Bag-valve-mask ventilation support
• Neck hyperextension and flexion airway obstruction with event capture and logging
• Intubation depth detection and software event log
Breathing
• Spontaneous, continuous breathing
• Variable respiratory rates and inspiratory/ expiratory ratios
• Programmable unilateral chest rise and fall
• Unilateral lung sounds synchronized with respiratory rate
• Programmable retractions, “see-saw” breathing

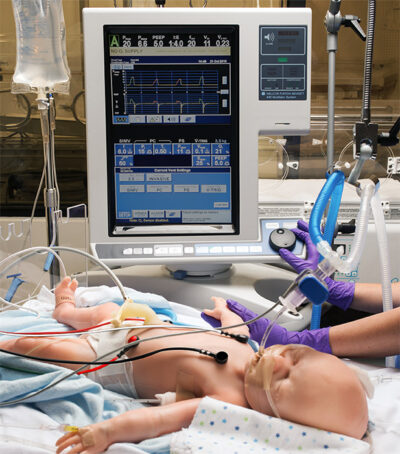

• Mechanical ventilation support
A/C, SIMV, CPAP, PCV, PSV, NIPPV
Supports PEEP (up to 20 cmH2O)
Dynamic airway and lung controls
Variable lung compliance
Bilateral bronchi resistance
• Programmable respiratory efforts for weaning/liberation
• Unilateral chest rise with right mainstem intubation (Automatic detection and logging)
• Real-time ventilation feedback

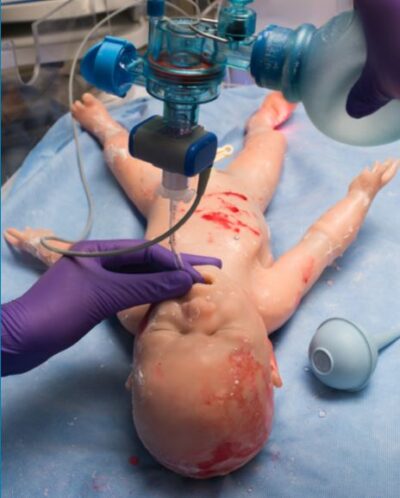

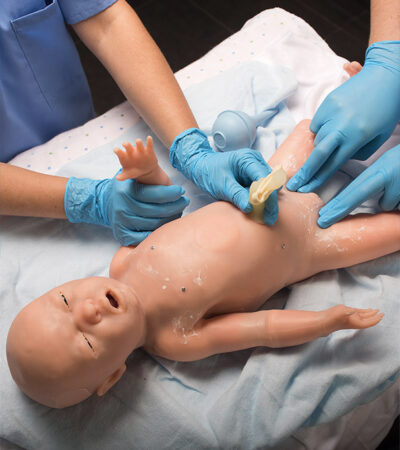

• Bilateral, midaxillary pneumothorax sites support needle decompression and chest tube insertion
• Pneumothorax sites feature palpable bony landmarks, realistic skin for cutting and suturing, bleeding, tactile pleural pop, and fluid drain
• Visible chest rise during bag-valve-mask ventilation
• Supports EtCO2 monitoring using real sensors and monitoring devices
Circulatory
• Visible cyanosis, jaundice, paleness, and redness with variable intensities
• Supports manual capillary refill time assessment on the left foot (Automatic detection and logging)
• Programmable fontanel: depressed, normal, and bulging
• Palpable pulses: brachial, femoral, and umbilical
• Pulse palpation event detection and logging
• Blood pressure dependent pulses
• Supports blood pressure monitoring using real NIBP cuff
• Audible Korotkoff sounds
• Preductal (right hand) and postductal (right foot) SpO2 monitoring using real devices
Cardiac
• Includes comprehensive library of ECG rhythms with customizable beat variations

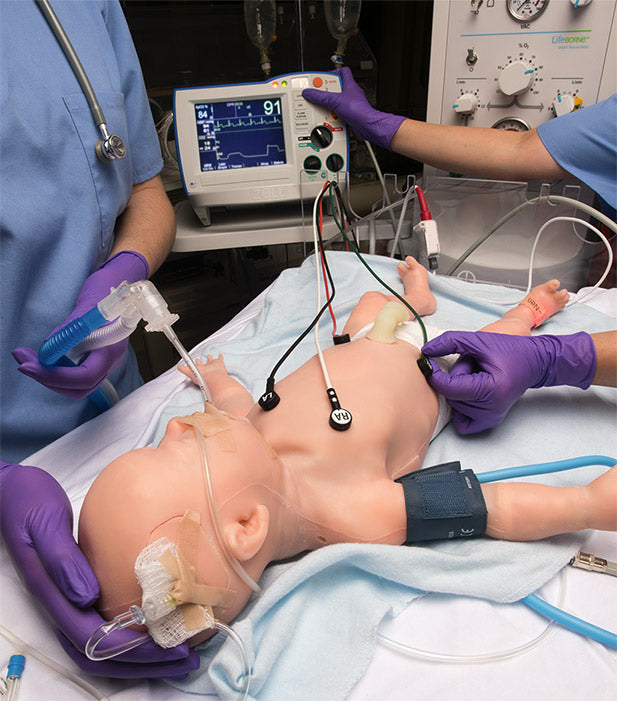

• Supports ECG monitoring using real devices
• Supports ECG-derived respiration monitoring (EDR)
• eCPR™ Real-time quality feedback and reporting time to CPR
Compression depth/rate
Compression interruptions
Ventilation rate
Excessive ventilation
Smart CPR voice coach
• Chest compression depth sensor
• Defibrillate, cardiovert, and pace using real devices and energy
• Effective chest compressions generate palpable femoral pulses and ECG activity
• Healthy and abnormal heart sounds
• Supports virtual pacing and defibrillation
Vascular Access
• IV cannulation: bolus, infusion, and sampling
Hand
Scalp
Umbilicus

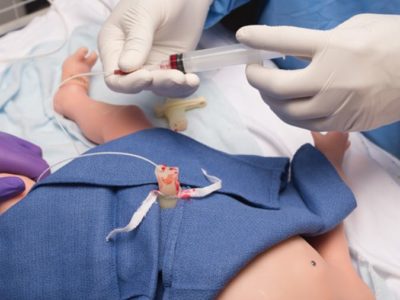

• Umbilical catheterization (UVC/UAC): continuous infusion and sampling
• Bilateral IO tibial infusion
Gastrointestinal
• Programmable abdominal distension
• Urinary catheterization with return
• Normal and abnormal bowel sounds
