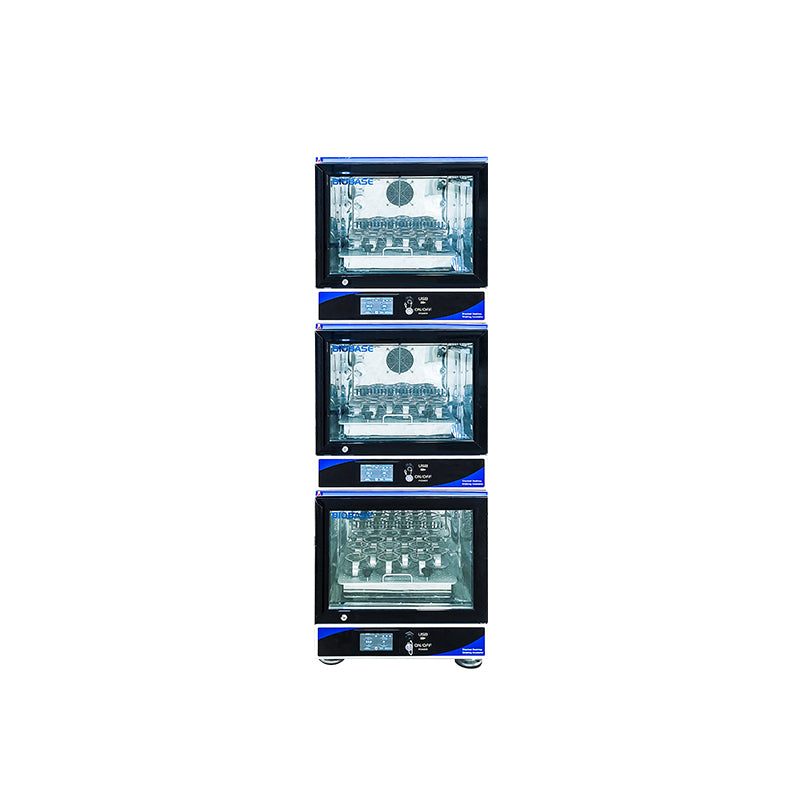

Stacked Large Capacity Shaking Incubator(BJPX-SDT)
Features:
* Brushless DC motor, low noise, lasting operation.
* 5 "touch screen, clear and intuitive interface.
* Run parameter encryption lock, parameter memory function.
* With power failure recovery function, with power failure recovery function.
* Motor overheat, temperature control, abnormal overtemperature instrument automatically cut off their power supply.
* With USB data export function to achieve data traceability.
* With ultraviolet disinfection function.
* Standard equipped with LED light, open the door of the box light automatically open.
Technical Parameters:
| Model |
BJPX-SDT10 |
BJPX-SDT20 |
| Controller |
PID |
| Display |
5 inch touch screen |
| Circulation Mode |
Forced convection |
| Shaking Mode |
Rotary shaking |
| Drive Mode |
Single axis balanced drive type |
| Vibration Range |
Φ26mm |
| Rotating Speed |
30~300r/min |
| Rotating Accuracy |
±1r/min |
| Temp. Range |
RT+5~60℃ |
4~60℃ |
| Temp. Control Accuracy |
0.1℃ |
| Temp. Uniformity |
≤±1℃(37℃） |
| Temp. Fluctuation |
≤±0.5℃ |
| Timing Range |
0~999min |
|
Shaking Plate Size |
420*400mm |
| Shaking Plate Quantity |
1pc |
| Capacity |
80L |
| Max. Capacity |
250ml*16 or 500ml*9 or 1000ml*9 or 2000ml*5 (Flask clamp)
tube rack*2
96-well plate*8
clamping rodshakingplate*1
|
| Standard. Capacity |
250ml*16 or 500ml*9 or 1000ml*9 or 2000ml*5 |
| Lighting Mode |
LED lamp*1 |
| SterilizationMode |
UV lamp*1 |
| Refrigerant |
/ |
R134A |
| Ambient Temp. |
15~35℃ |
| Internal Material |
304 stainless steel |
| External Material |
Cold rolled steel sheet |
| Safety Function |
High/low temperature, abnormal shutdown, motor failure, equipment door is not closed properly automatic alarm, alarm mode is sound and light alarm. |
| Consumption |
1000W |
1600W |
| Power Supply |
Standard: AC200~240V, 50/60Hz
Optional: AC110V, 50/60Hz
|
| Internal Size |
495*455*370mm |
| External Size |
580*830*600mm |
| Package Size |
705*975*865mm |
|
| Net Weight |
138kg |
158kg |
| Gross Weight |
168kg |
188kg |
Motor overheat, temperature control, abnormal overtemperature instrument automatically cut off their power supply.
