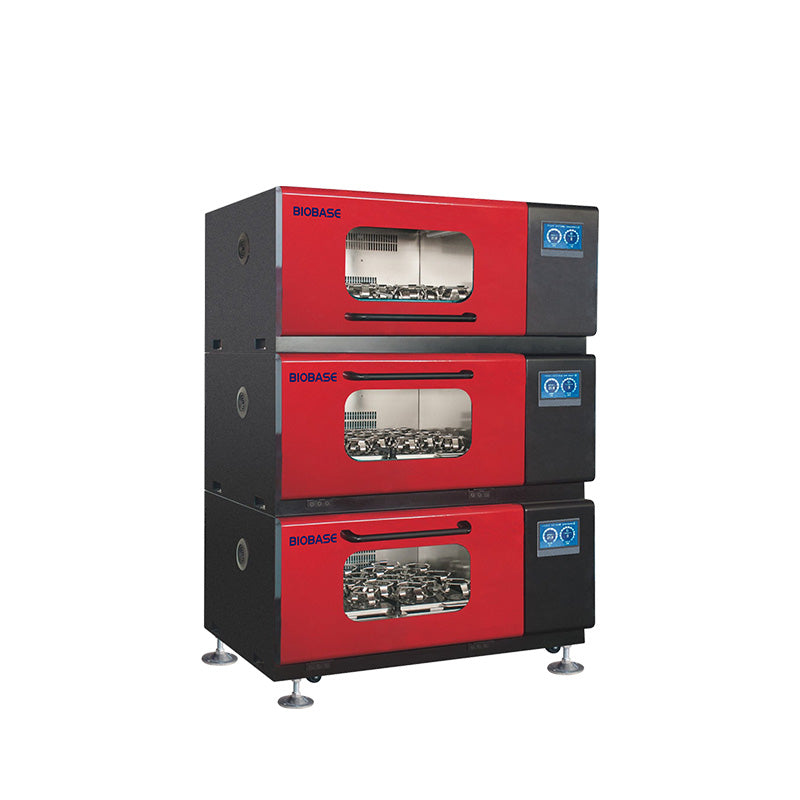

Stacked Large Capacity Shaking Incubator(BJPX-N/RN)
Features:
* High quality servo motor.
*Multi-steps rotate speed, temperature and time control systems.* Slow accelerate and decelerate design.
*Advantaged air duct design.
*Automatic defrosting function.*High-precision speed control.
*High-precision temperature control.*Unique drive system.
*Open door protection.
*LCD display with bright illumination.
*Memorized and protected operating parameters.*Continuously running or timing.
*Unique slow-start design.
*Standard of illumination and UV light.
Model：
| Model |
BJPX-2012N |
BJPX-2012RN |
| Controller |
PID |
| Display |
LCD |
| Circulation Mode |
Forced convection |
| Shaking Mode |
Rotary shaking |
| Drive Mode |
Multidimensional drive |
| Rotating Speed |
20-350rpm (Top layer 20-300rpm, static culture, reverse rotation or alternate operation) |
| Rotating Accuracy |
±1rpm |
| Vibration Range |
Φ26mm (Can customize φ35 (20-250rpm/min); φ50(20-200rpm/min)) |
| Temp. Range |
RT+5~60℃ |
4~65℃(At25℃) |
| Temp.Control Accuracy |
±0.1℃ |
| Temp. Uniformity |
±0.6℃ (At 37℃) |
| Timing Range |
0~9999h/min |
| Shaking Plate Size |
610*460 mm |
| Shaking Plate Quantity |
1 pc |
| Max. Capacity |
250ml*32or500ml*21 or1000ml*13or2000ml*7(Flask clamp)
250ml*32or500ml*20or1000ml*12or2000ml*8(haftplatte)
|
| Standard Capacity |
500ml*21 |
| Internal Material |
Stainless steel |
| External Material |
Stainless steel |
| Refrigerant |
/ |
R134a |
| Heating Consumption |
800-900W |
| Safety Function |
Audio and visual alarm for over-temperature; Alarm for over-speeds;
Independent over-temperature protector; Shutdown protection for door opening;
Leakage or over-current protection; Ultraviolet disinfection function;
Calibration of monitoring temperature and ambient temperature;
Overload protection of refrigeration unit and delayed start of incoming call (only BJPX-2012RN)
|
| Consumption |
1000W |
1200W |
| Power Supply |
Standard:220V±10%, 50/60Hz; optional:110V±10%, 60Hz |
Standard:220V±10%, 50Hz;
optional:110V±10%, 50Hz |
| Internal Size(W*D*H)(mm) |
715*580*450(per unit) |
| External Size(W*D*H)(mm) |
1120*790*620(per unit) |
| Package Size(W*D*H)(mm) |
1275*950*810(per unit) |
| Gross Weight(kg) |
240(per unit) |
Multi-steps rotate speed, temperature and time control systems.* Slow accelerate and decelerate design.
