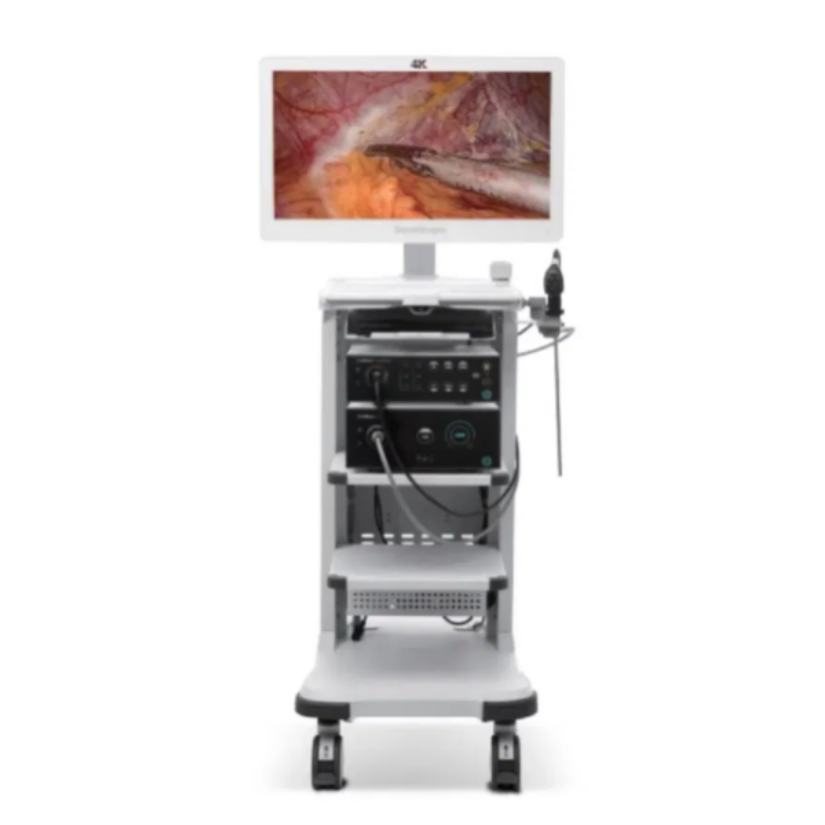

Image Processor SV-M4K30
| Resolution |
3840x2160p 60Hz |
| Storage |
USB in Jpeg/Mpeg4 |
| Video output signal |
4*3G-SDI, HDMI |
| White balance |
Auto and memory |
| Image enhancement |
VIST, sharpness/contrast, backlight compensation |
| IRIS |
Digital Metering Technology
Full(F), Wide(W) and Circle(c) mode
|
| Weight |
7.5kg |
| Dimensions (LXWXH) |
360X125X396 mm |
VSL-55Q Light Source
| Main lamp |
4 LED technology |
| White light mode |
High colour rendering index and high luminous flux |
| SFI/VIST |
High brightness and spectra in the 2 special light modes |
| Brightness |
Auto/Manual, 1-19 levels |
| LED lifespan |
≥10,000 hours |
| Transillumination mode |
6-8 seconds |
| Hot plugging |
Yes |
| Weight |
17.5 kg |
| Dimensions (LXWXH) |
517x373x154 mm |
Now it is possible to further step-up your 4K experience. Fully compatible with the SV-M4K30 image processor, SonoScape’s 4-LED light source enables multi-spectrum and multi-mode imaging. Its versatility not only allows a superior brightness under the white light mode, but also an uncompromised illumination under chromoendoscopy modes SFI and VIST, where the vascular colour contrast and mucosal structure are greatly enhanced. You will get much more information from this level of image performance
