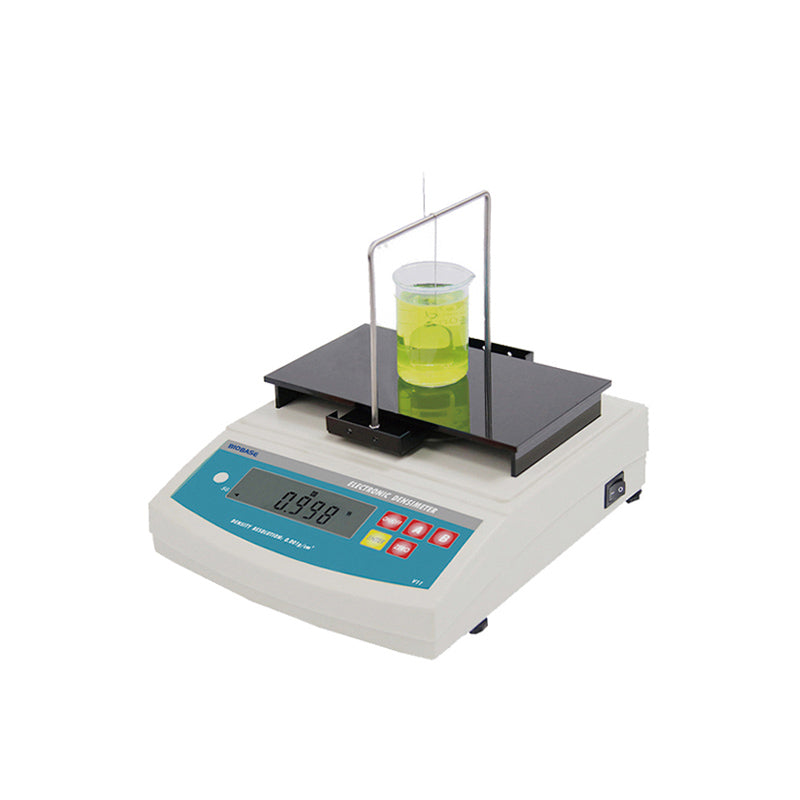

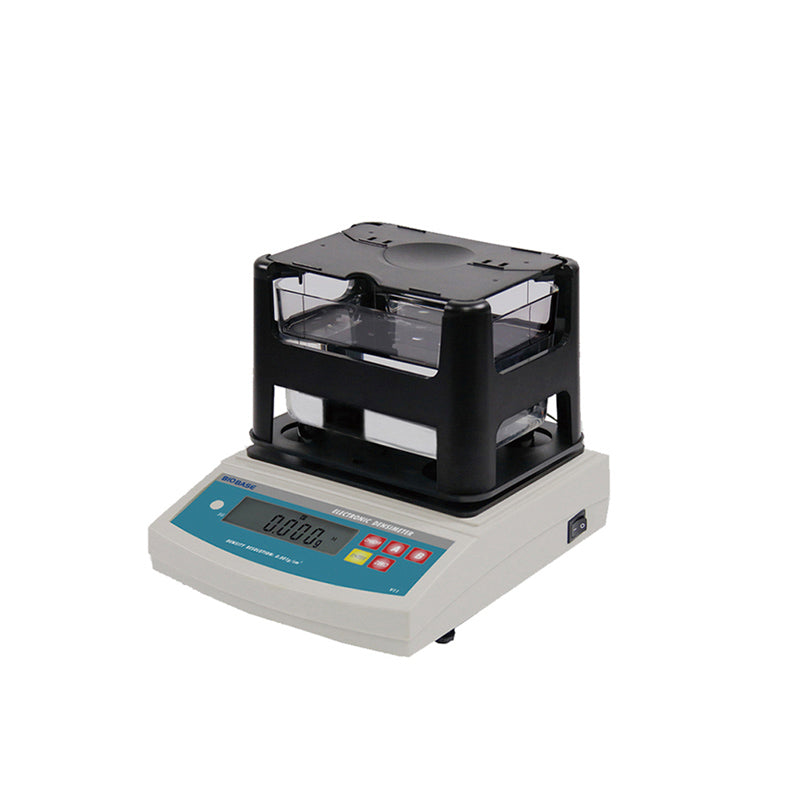

Solid and Liquid Densimeter
Features:
* Automatic zero tracking, buzzer warning, and overload warning.
* Function of solution compensation: necessary if liquid other than water is used as a medium for measuring.
* Actual water temperature compensation.
* RS-232C included.
Technical Parameters:
| Model |
BK-DME300D |
BK-DME600D |
| Capacity |
0.005-300g |
0.005-600g |
| Density Resolution |
0.001 g/cm3
|
| Density Range |
0.001 ~99.999g/cm³ |
| Measuring Time |
About 5s |
| Solid
Mode
|
Measuring Principle |
Archimedes principle general solid test method |
| Specific Gravity Measuring Frame |
Unibody injection forming professional specific gravity measurement frame Size: 176*105*111 mm (L*W*H) |
| Measuring Tank |
Unibody injection forming transparent professional measuring tank Size: 169*98*83mm (L*W*H) |
| Mixed Material Percentage |
Function introduction |
Automatically read the percentage of the main material in composite which consist of two materials |
|
Setting |
Freely set the density value of main material and subordinate material |
|
Display |
Density value, percentage of main material |
| Liquid Mode |
Measuring Principle |
Archimedes principle displacement method |
| Weight Value Data Storage |
1 group |
| Specific Gravity Measuring Frame |
Stainless steel specific gravity measuring frame |
| Memory Mode |
Dynamic memory |
| Result Display |
Density value |
| Result Testing Method |
Distilled water testing |
| Calibration Mode |
Auto correction, auto detection. |
| Standard Accessories |
Common Use: Tweezer, thermometer, 100G weight, windshield, power transformer. Solid Use: Tank, testing board, a set of particle measuring assembly, a set of floating body measuring assembly.
Liquid Use: Measuring plate, measuring frame, DE-20A standard liquid measuring assembly
|
| Optional Accessories |
DE-40 printer, DE-20B anti corrosive liquid measuring assembly |
| Power Supply |
AC110/220V±10%, 50/60HZ |
| Package Size(W*D*H)mm |
450*200*360 |
| Gross Weight(kg) |
6.5 |
