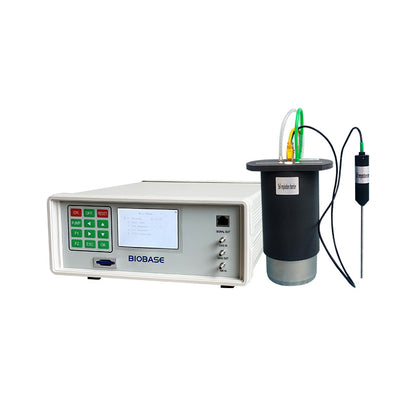

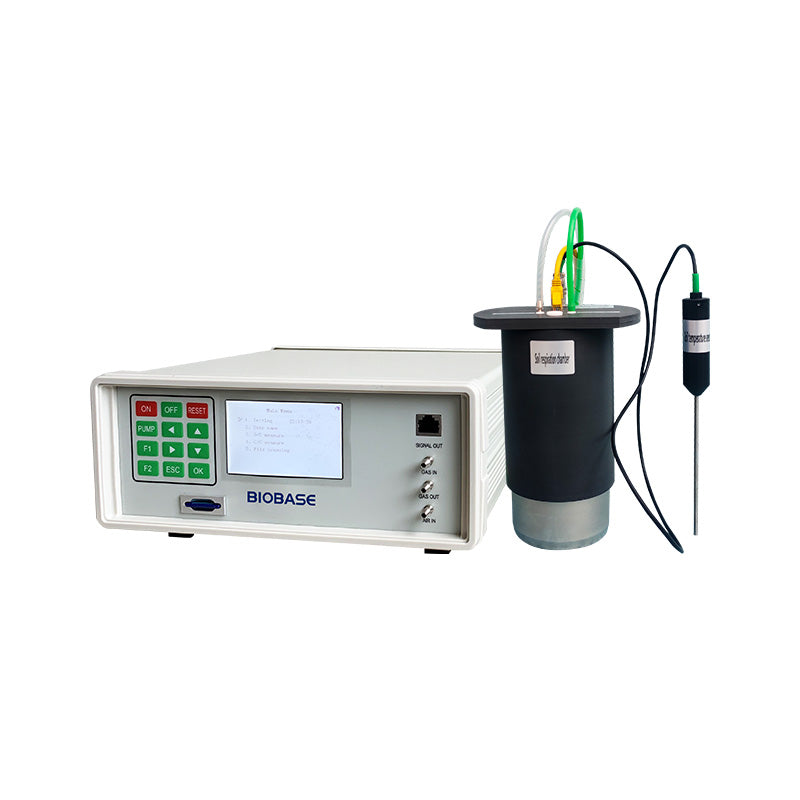

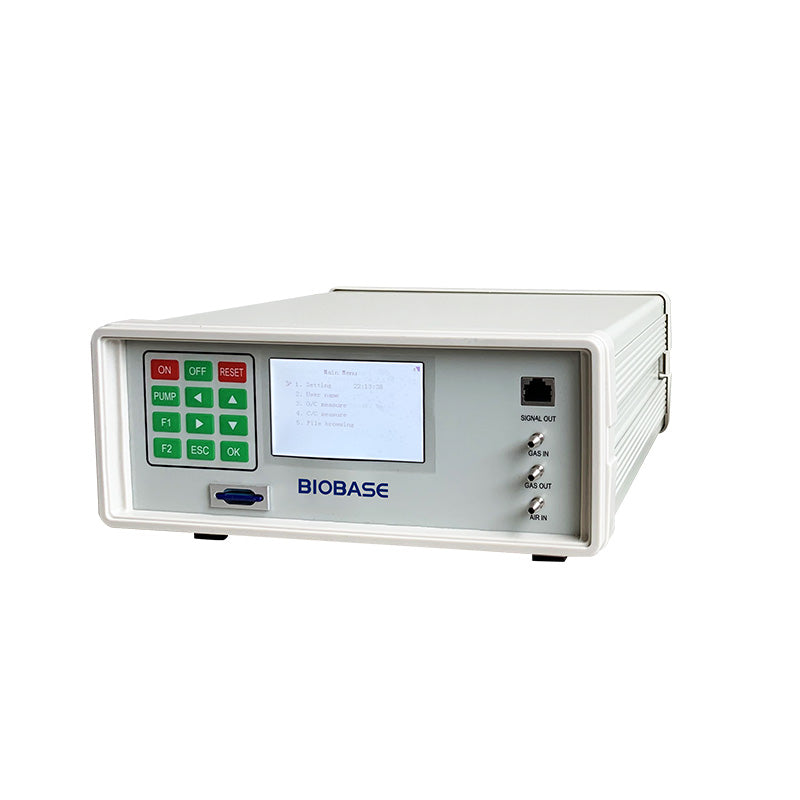

Soil Respiration Meter
Feature:
1. Intuitive display: Chinese LCD 160 × 256 dot matrix, simple operation and clear interface.
2. Data storage: Large Capacity SD card is used to store data, which has large data storage capacity and convenient export.
3. Data acquisition: CO2 concentration, soil temperature, air temperature, air humidity,
4. photosynthetic effective radiation intensity, gas flow and other indicators can be collected at the same time. The stability, accuracy, attention and time response of the measurement are very good.
5. Easy to use: small size, light weight, portable, single person operation, arbitrary movement, clear gas circuit and circuit connection.
6.Wide application: users can choose breathing chambers with different volumes or other purpose breathing chambers, which can be widely used for the determination of respiration of soil, fruits and vegetables, seeds, plants and so on.
7. Convenient power supply: it is equipped with standardized maintenance free lithium battery, which can be used for more than 10 hours at a time. It can also be powered by AC and DC.
8. Instrument protection: microelectronic flowmeter is adopted, with the function of prompt protection for gas path blockage.
Technical Parameters:
| Model |
SRM-3051T |
| Carbon Dioxide Detection |
Infrared carbon dioxide detection module
Measurement range: 0~5000ppm
Linearity: ≤± 1% F.S
Repeatability: ≤± 1%
Response time: ≤ 15s
Zero drift: ≤± 2% f.s/24h
End drift: ≤± 2% f.s/24h
|
| Soil Temperature Detection |
Micro fast response PT100 platinum resistance
Measurement range: 0~60 ℃
Resolution: 0.1 ℃,
Accuracy: ± 0.3 ℃
|
| Air Temperature Detection |
Inlet temperature detection module
Measurement range: - 20~95 ℃
Resolution: 0.1 ℃
Accuracy: ± 0.2 ℃
|
| Air Humidity Detection |
Iinlet humidity detection module
Measurement range: 0~100%
Resolution: 0.1%
Accuracy: ± 1.8%
|
| Light Detection |
Silicon photocell with correction filter, response spectrum 400nm-700nm
Measurement range: 0-3000umol / m2 / s-1
Resolution: 1umol / m2 / s-1
Accuracy: ± 5% umol /m2 / S-1
|
| Flow Detection |
Microelectronic flowmeter
Measurement range: 0~1.5l/m
Resolution: 0.01l/min
Accuracy: ± 2%
|

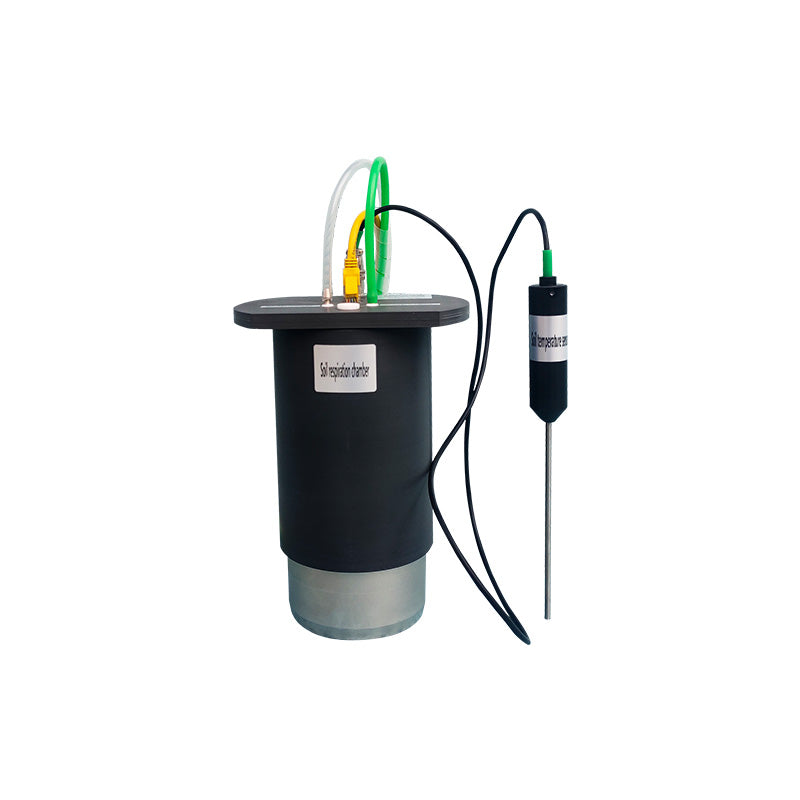

| Soil Respirator |
Volume 1.0L. |
| Storage |
Storage mode: 2GB memory card storage
Storage format: TXT document
|
| Working Power Supply |
Battery: 8.4V lithium battery;
Power Adapter:100~240V 50/60Hz
|
| Package Size(L*W*H) mm |
550*350*250 |
| Gross weight (kg) |
8 |
