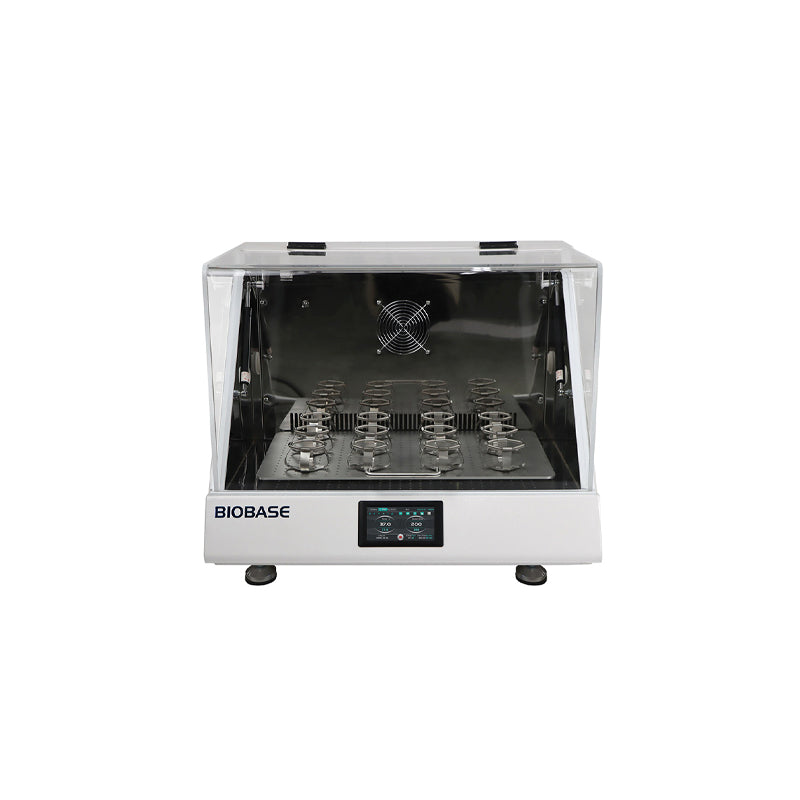

Small Capacity Thermostatic Shaking Incubator (BJPX-ST)
Technical Parameters:
| Model |
BJPX-ST10-L |
BJPX-ST11-L |
BJPX-ST10 |
BJPX-ST11 |
BJPX-ST20 |
| Display |
LCD |
5 inch touch screen |
| Circulation Mode |
Forced convection |
| Shaking Mode |
Rotary shaking |
| Drive Mode |
Three axis balanced drive type |
|
| Vibration Range |
Φ26mm |
Φ50mm |
Φ26mm |
Φ50mm |
Φ26mm |
| Rotating Speed |
30~300r/min |
| Rotating Accuracy |
±1r/min |
| Temp. Range |
RT+5~60℃ |
4~60℃ |
| Temp. Control Accuracy |
0.1℃ |
|
| Temp. Uniformity |
≤±1℃(37℃） |
|
| Temp. Fluctuation |
≤±0.5℃ |
|
| Timing Range |
0~9999min(h) |
0～999h59min |
|
Shaking Plate Size |
270*270mm |
245*245mm |
566*363mm |
566*343mm |
566*363mm |
| Max. Capacity |
100ml*9 or250ml*7 or 500ml*3 or 1000ml*2 (Flask clamp)
96-well plate*4(BJPX-ST10-L)
96-well plate*2(BJPX-ST11-L)
|
100ml*28 or250ml*20or 500ml*15 or 1000ml*11 or 2000ml*6 or 3000ml*5(Flask clamp)
tube rack*2
96-well plate*10
clamping rodshakingplate*1
|
100ml*28 or250ml*18or 500ml*15 or 1000ml*8 or 2000ml*6 or 3000ml*3(Flask clamp)
tube rack*2
96-well plate*10
clamping rodshakingplate*1
|
100ml*28 or250ml*20or 500ml*15 or 1000ml*11 or 2000ml*6 or 3000ml*5(Flask clamp)
tube rack*2
96-well plate*10
clamping rodshakingplate*1
|
| Standard. Capacity |
250ml*4 or500ml*2 or1000ml*1 |
250ml*12 or500ml*10 or1000ml*6 or2000ml*4 |
| Ambient Temp. |
15~35℃ |
| Curve Programming |
Fixed value control temp. velocity |
Fixed and multi-stage control temp. velocity |
| Internal Material |
304 stainless steel |
| Optional Accessory |
Micro printer, USB data export port |
| Consumption |
500W |
800W |
1000W |
| Power Supply |
Standard: AC220V, 50Hz
Optional: AC110V,50/60Hz
|
| Internal Size |
315*310*230mm |
413*663*380mm |
446*663*372mm |
| External Size |
510*365*440mm |
700*719*590mm |
780*719*590mm |
| Package Size |
490*630*590mm |
830*840*730mm |
910*840*730mm |
| Net Weight |
31.5kg |
33kg |
64kg |
90kg |
89kg |
| Gross Weight |
39kg |
41.5kg |
78kg |
104kg |
107kg |
Note:
1. The height of the container placed in the clamping rodshakingplate is no more than 360mm.
2. The total height of the tube placed in the tube rack is less than 300mm (if the tube has a stopper, the total height of the tube should be counted as the height of the stopper).
Features:
* Three-sided transparent acrylic cover, easy to check the running condition of the box.
* With the open door stop function, to protect the safety of personnel.
* Professionally designed side air vent to meet the demand of oxygen.
* The display interface has the functions of historical data, curve, alarm record can be queried, data can be saved and exported, password lock screen protection and Chinese and English switching.
