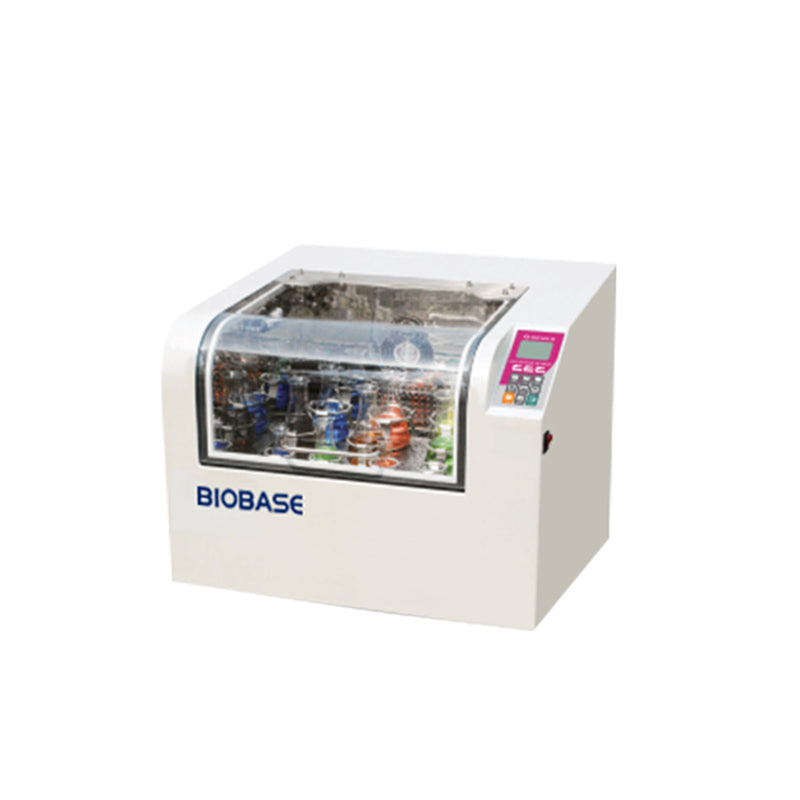

Small Capacity Thermostatic Shaking Incubator (BJPX-N)
Features:
*High quality servo motor.
* Multi-steps rotate speed, temperature and time control systems.
*Slow accelerate and decelerate design.
*Advantaged air duct design.
*Automatic defrosting function.
* High-precision speed control.
*High-precision temperature control.
*Open door protection.
* LCD display with bright illumination.
* Memorized and protected operating parameters.
*Function of encrypted and locked operating parameters.
*Continuously running or timing.
* Unique slow-start design.
*Optional of illumination and UV light.
Models:
| Model |
BJPX-100N |
BJPX-200N |
| Controller |
PID |
| Display |
LCD |
| Circulation Mode |
Forced convection |
| Shaking Mode |
Rotary Shaking |
| Drive Mode |
Unidimensional drive |
| Temp. Range |
RT+5~65℃ |
4~65℃ |
| Temp. Accuracy |
±0.1℃ |
| Temp. Uniformity |
±0.5℃(at 37℃) |
| Rotating Speed |
20-450(r/min) |
| Rotating Accuracy |
±1(r/min) |
| Vibration Range |
26mm |
| Refrigerant |
/ |
Environmentally friendly refrigerant |
| Cooling Consumption |
/ |
118W |
| Timing Range |
0-9999h/min |
| Shaking Plate Size |
450*410mm |
| Standard Capacity |
50ml*4,100ml*4, 250ml*3, 500ml*3 |
50ml*5,100ml*5, 250ml*4, 500ml*3 |
| Max. Capacity |
Clamp flask: 100ml*23 or 250ml*15 or 500ml*9,1000ml*6 or 2000ml*4;
Haftplatte: 100ml*30 or 250ml*20 or 500ml*9 or 1000ml*8 or 2000ml*4 |
| External Size(mm) |
750*710*520 |
| Auxiliary Function |
Ultra-low speed start, adjustable start speed, monitoring timer, parameter memory, upper and lower limits of overtemperature acousto-optic alarm, while opening the door automatically stop, monitoring temperature and environmental temperature for
correction |
| Consumption |
550W |
650W |
| Power Supply |
Standard: AC220±10%, 50/60Hz;
Optional:110V±10%, 60Hz
|
Standard: AC220±10%, 50Hz;
Optional:110V±10%, 50Hz
|
| Internal Material |
Stainless steel |
| External Material |
Stainless steel |
| Package Size |
881*875*715mm |
| Gross Weight |
120kg |
120kg |
Multi-steps rotate speed, temperature and time control systems.
