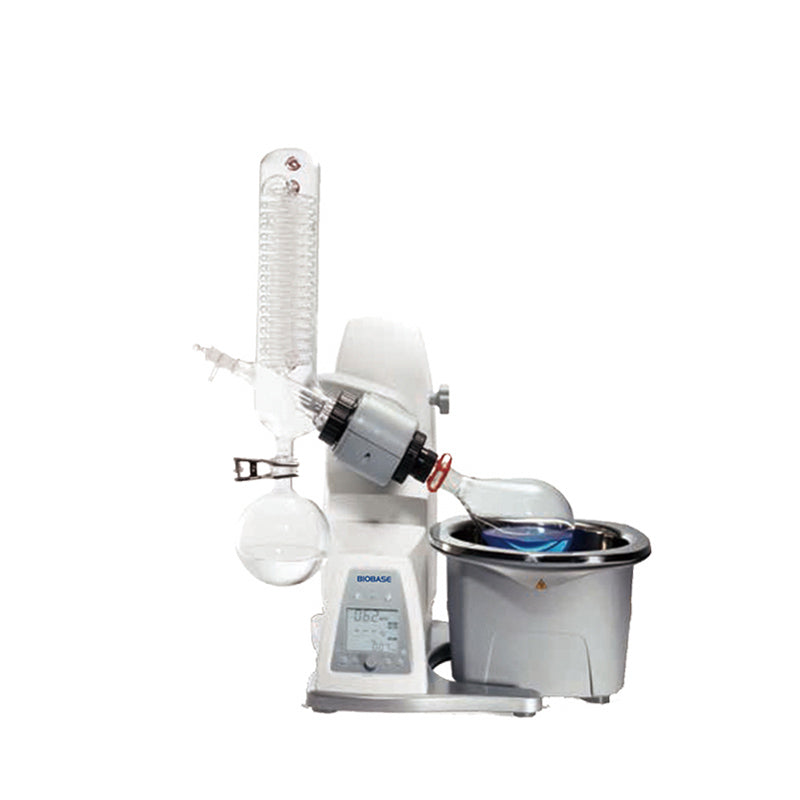

Rotary Evaporator (New Design) RE 100-Pro
Technical Parameters:
| Model |
RE 100-Pro |
| Item No. |
6030110111 |
| Evaporating Flask |
1L(NS 29/32, 18300120 ) |
| Receiving Flask |
1L(KS 35/20,18300110) |
| Display |
LCD |
| Rotating Speed |
20~280rpm |
| Temp. Range |
RT 〜180°C |
| Temp. Accuracy |
Water bath： ±1°C;Oil bath： ±3°C |
| Lift |
Motor |
| Stroke Height |
150mm |
| Timing Range |
1~999min |
| Motor |
DC brushless motor |
| Heating Power |
1300W |
| Stroke Displacement |
Automatic 150mm |
| Protection Class |
IP20 |
| Rotation |
Reversible Direction |
| Interface |
USB |
| Power |
1400W |
| Power Supply |
AC110/220V±10%, 50/60Hz(Customizable) |
| External Size(W*D*H) |
465*457*583 mm |
| Package Size(W*D*H) |
640*1100*650mm |
| Net Weight |
15kg |
| Gross Weight |
36kg |
| Standard Accessory |
Condenser(1700cm2)*1, 1L Evaporating flask* 1, 1L Receiving flask* 1, 5L pot*1 |
| Optional Accessory |
Vacuum pump, Recirculating chiller |
Features:
*Evaporating flask with an ejector, convenient to remove.
*5L water and oil bath dual-purpose heating pot, heating temperature can reach 180°C, easy to switch between water and oil bath heating modes.
*Patented technology condenser, high recovery rate, condensing effect Outstanding.
