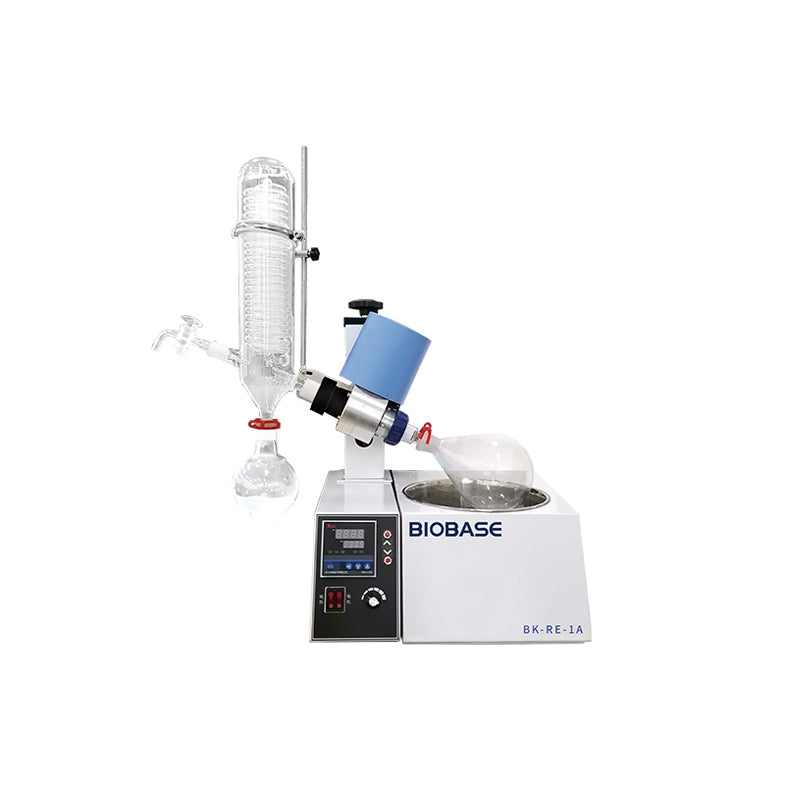

Rotary Evaporator BK-RE-1A
Introduction:
The rotary evaporator is made according to the principle of constant temperature heating and film evaporation under vacuum and negative pressure. The rotary evaporator uses stepless speed regulation to make the glass rotating bottle rotate at a constant speed, and the materials form a large area uniform film on the bottle wall.
Then, the rotating bottle is evenly heated by the intelligent constant temperature water bath, evaporated at a high speed under vacuum, and the solvent vapor is cooled by the high-efficiency glass condenser and recycled in the collection bottle.
Features:
1. Stepless speed controller
2. PID temperature adjustment
3. Automatic lift control
4. High evaporating and recovery collecting rate
Model
| Model |
BK-RE-1A |
| Rotary Bottle |
1 L24#(standard size） |
| Collecting Bottle |
0.5L 24＃(standard size） |
| Glass Material |
GG-17 |
| Shelf Material |
Spray anti-corrosion steel |
| Heating Unit Size |
250*388*169mm |
| Chamber Size |
φ220*140 mm |
| Heating Power |
1KW |
| Temp. Range |
0-99℃ |
| Temp. Accuracy |
±1℃ |
| Temp. Sensor |
PT100 |
| Vacuum |
0.096Mpa |
| Rotary Motor |
30W |
| Rotating Speed |
0-120rpm |
| Lift |
Motor |
| Lifting Power |
15W |
| Lifting Stroke |
150mm |
| Speed Control |
Stepless speed controller |
| Sealing Method |
Fluorine rubber skeleton oil seal |
| Condenser |
φ85*450mm |
| Charging Valve |
19#(standard size) |
| Power Supply |
220V,50Hz(Standard); 220V,60Hz(Optional) |
| External Size(W*D*H) |
640*340*（860-1010）mm |
| Package Size(W*D*H) |
740*550*580mm |
| Gross Weight |
38kg |
| Standard Accessory |
1 L Rotary Bottle*1, 0.5 L Collecting Bottle*1 |
| Optional Accessory |
Vacuum pump, Recirculating chiller, Transparent cover |
Application:
Mainly used for concentration, crystallization, drying, separation and solvent recovery in pharmaceutical, chemical and biopharmaceutical industries.
