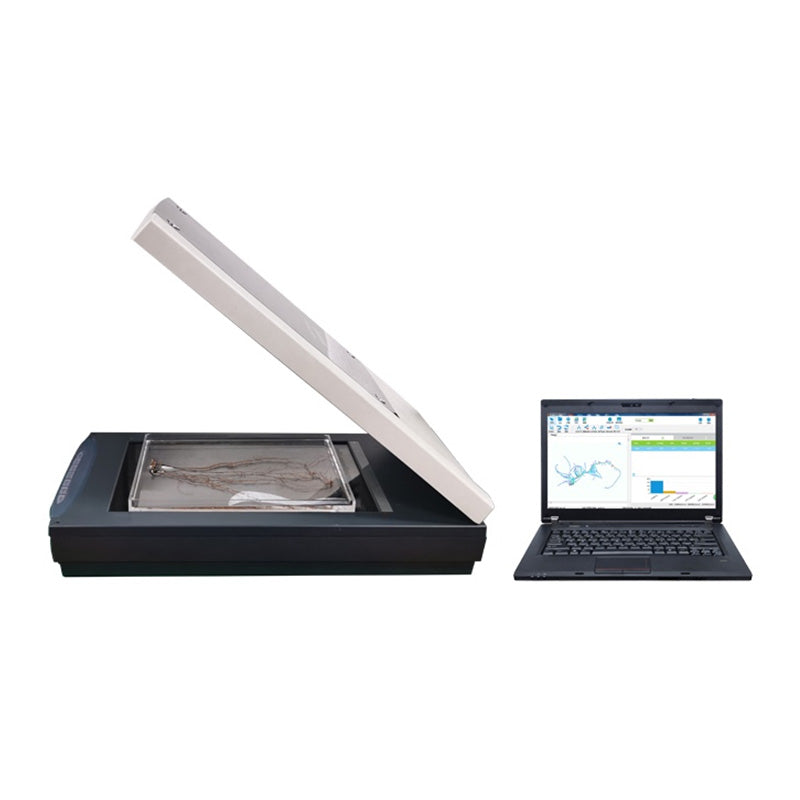

Root Scanner RS-A
Features:
* Clear interface design, modular function design.
* User learning cost is lower, operation is more convenient and smoother.
* The analysis results are more accurate.
Overall Analysis Parameter:
|
Model
|
RS-A
|
|
Root Tip
|
Number: the total number of root tips, equal to the number of termination points
|
|
Range
|
0~1000
|
|
Accuracy
|
error <5%
|
|
Root System
|
Length: total root system length, including main root and secondary roots
|
|
Range
|
0~10000mm
|
|
Accuracy
|
error <3.65%
|
|
Average Diameter: the average diameter of the root system
|
|
Range
|
0~20mm
|
|
Accuracy
|
error<0.04%
|
|
Projected Area: the projected area of the root system as a whole
|
|
Range
|
0~200000mm2
|
|
Accuracy
|
error<4.02%
|
|
Surface Area: the overall surface area
|
|
Range
|
0~1000000mm2
|
|
Accuracy
|
error <3.75%
|
|
Volume: overall volume
|
|
Range
|
0~2000000000mm3
|
|
Accuracy
|
error <3.82%
|
Topological Analysis Parameter (requires relatively complete root system):
|
Model
|
RS-A
|
|
Quantity: the sum of the number of roots at all levels
|
|
Range
|
0~100
|
|
Number of Connections: the sum of the number of connections on the side roots at all levels
|
|
Range
|
0~100
|
|
Length: the sum of the lengths of the lateral roots at all levels
|
|
Range
|
0~10000mm
|
|
Diameter: the average diameter of each side root
|
|
Range
|
0~20mm
|
|
Surface Area: the sum of the surface area of each side root
|
|
Range
|
0~1000000mm2
|
|
Volume: the sum of the volume of each side root
|
|
Range
|
0~2000000000mm3
|
|
Projected Area: the sum of the projected area of each side root
|
|
Range
|
0~200000mm2
|
Other Parameter:
|
Model
|
RS-A
|
|
Power Supply
|
100~240V, 50/60Hz
|
|
Optional Accessory
|
computer
|
|
Package Size
|
805*235*395mm
|
|
Net Weight
|
8kg
|
|
Gross Weight
|
9.7kg
|
