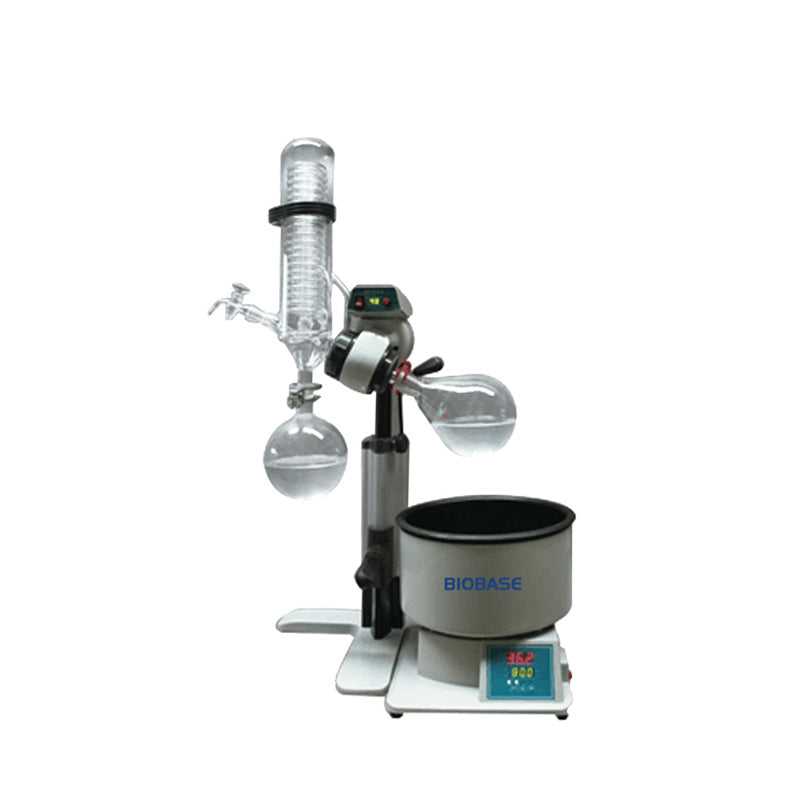

RE-2010 Rotary Evaporator
Application:
Mainly used for concentration, crystallization, drying, separation and solvent recovery in pharmaceutical, chemical and biopharmaceutical industries.
Features:
* Double sealing rings with Teflon and Viton makes vacuum up to -0.098Mpa.
* Intelligent temperature control and digital temperature display.
* High evaporating and recovery collecting rate.
* Overloading protect function.
* Expandable module design.
* Stepless speed controller.
Model:
| Model |
RE-2010 |
| Rotary Bottle |
1L24# (standard size) |
| Collecting Bottle |
1L 35# (ball mill mouth) |
| Condenser |
Verticalφ80*370mm |
| Charging Valve |
19# (standard size) |
| Rotating Speed |
0~200rpm |
| Vacuum |
-0.098Mpa |
| Temp. Range |
RT~99°C |
| Temp. Accuracy |
±1°C |
| Stroke Height |
100mm+150mm(sliding + manual) |
| Rotary Motor |
40W |
| Heating Power |
1.3KW |
| Water Evaporating Speed |
20ml/min |
| Vacuum Sealing |
Double sealing rings made of Teflon+ Viton materials |
| Shelf Material |
Aluminum alloy |
| Chamber Material |
Aluminum alloy +Teflon φ240*140mm |
| Power Supply |
AC220/110 V±10%,50/60 Hz |
| External Size(W*D*H) |
570*400*630~880mm |
| Package Size(W*D*H) |
730*550*400mm |
| Gross Weight |
16Kg |
| Standard Accessory |
1L Rotary Bottle*1, 1L Collecting Bottle* 1 |
| Optional Accessory |
Vacuum pump, Recirculating chiller |
Features:
*Double sealing rings with Teflon and Viton makes vacuum up to -0.098Mpa.
*Intelligent temperature control and digital temperature display.
*High evaporating and recovery collecting rate.
*Overloading protect function.
*Expandable module design.
*Stepless speed controller.
