| Model: |
575 Precizon Presbyopic Toric
One-piece IOL |
| Optic type: |
Aberration Negative (- 0.11 μm) Continuous Transitional Focus (CTF) optic |
| Central far zone size Y/X: |
1.4 / 2.6 mm |
| Rotated segment width: |
0.60 mm |
| Number of segment rings: |
3 n |
| Refractive Index: |
1.46 |
| Abbe number: |
47 |
| Optic powers: |
Sphere: +5.0 D to + 34.0 D (0.5 D increments) * / **
Cylinder: +1.0 D to + 6.0 D (0.5 D increments)
Power add +2.75 D. |
| Haptic configuration: |
Open modified C-loops with offset shaped haptics |
| Lens material: |
Hybrid hydrophobic & hydrophilic monomers. Ultraviolet filtering HEMA/EOEMA copolymer |
| Lens color: |
Clear |
| Body Ø: |
6.0 mm |
| Overall Ø: |
12.5 mm |
| Haptic angle: |
0° |
| Centre thickness range: |
0.8 to 1.3 mm |
| Body edge thickness: |
0.4 mm |
| A-constant ultrasound: |
118.3 |
| A-constant optical: |
118.8 (SRK T)
118.8 (SRK II)
0.126 (Haigis aO)
0.355 (Haigis a1)
0.157 (Haigis a2)
5.51 (Hoffer-Q pACD)
1.72 (Holladay 1 sf)
1.78 (Barrett suite LF)
0 (Barrett suite DF) |
| Light distribution: |
40/60 near/far |
* The minimum Sphere power is 1.5 + C e.g. 575A107TY10 = S5.0 & C3.5 (1.5+3.5=5.0)
** The maximum Sphere power is 35 - C e.g. 575A111TY59 = S29.5 & C5.5 (35-5.5=29.5)
Model 575

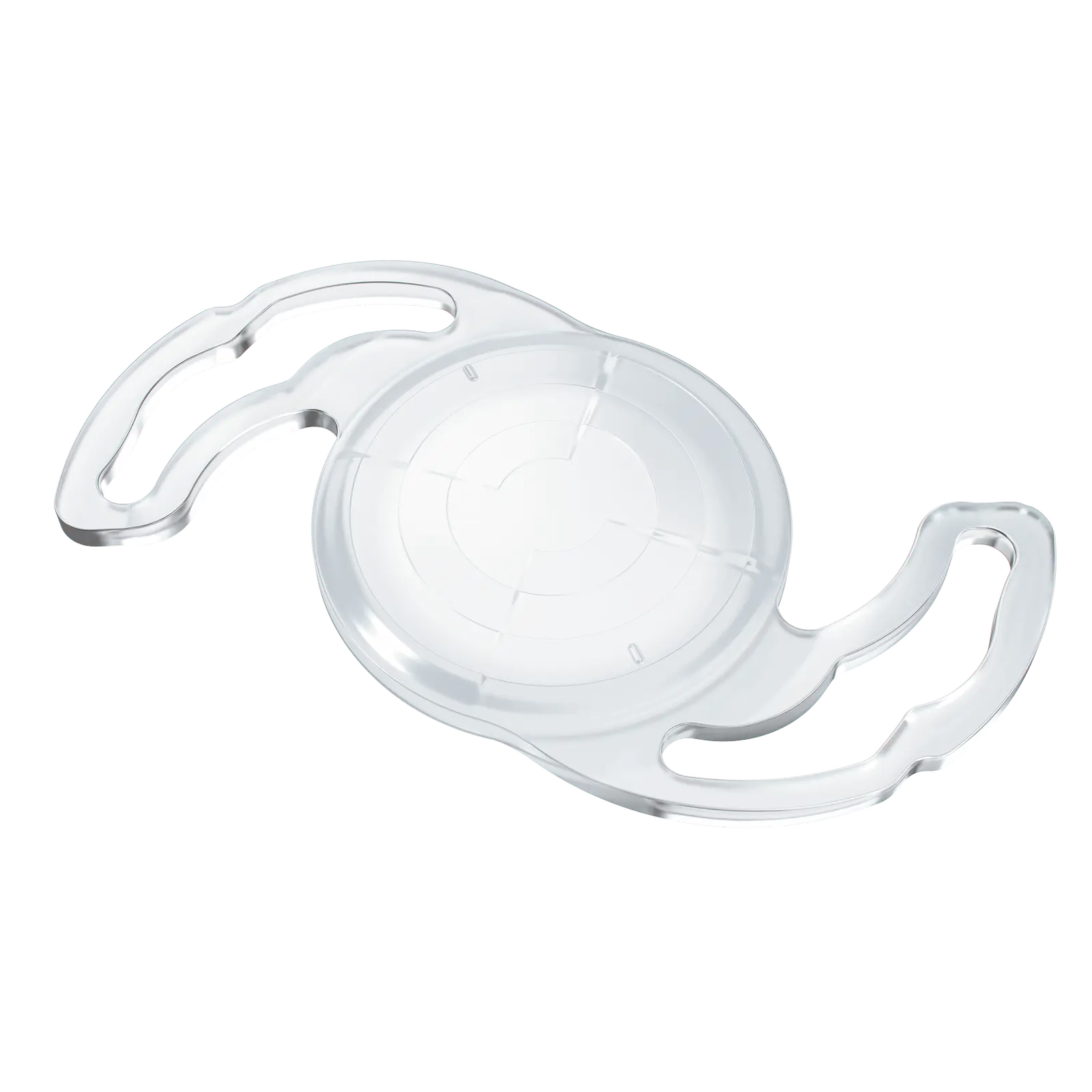

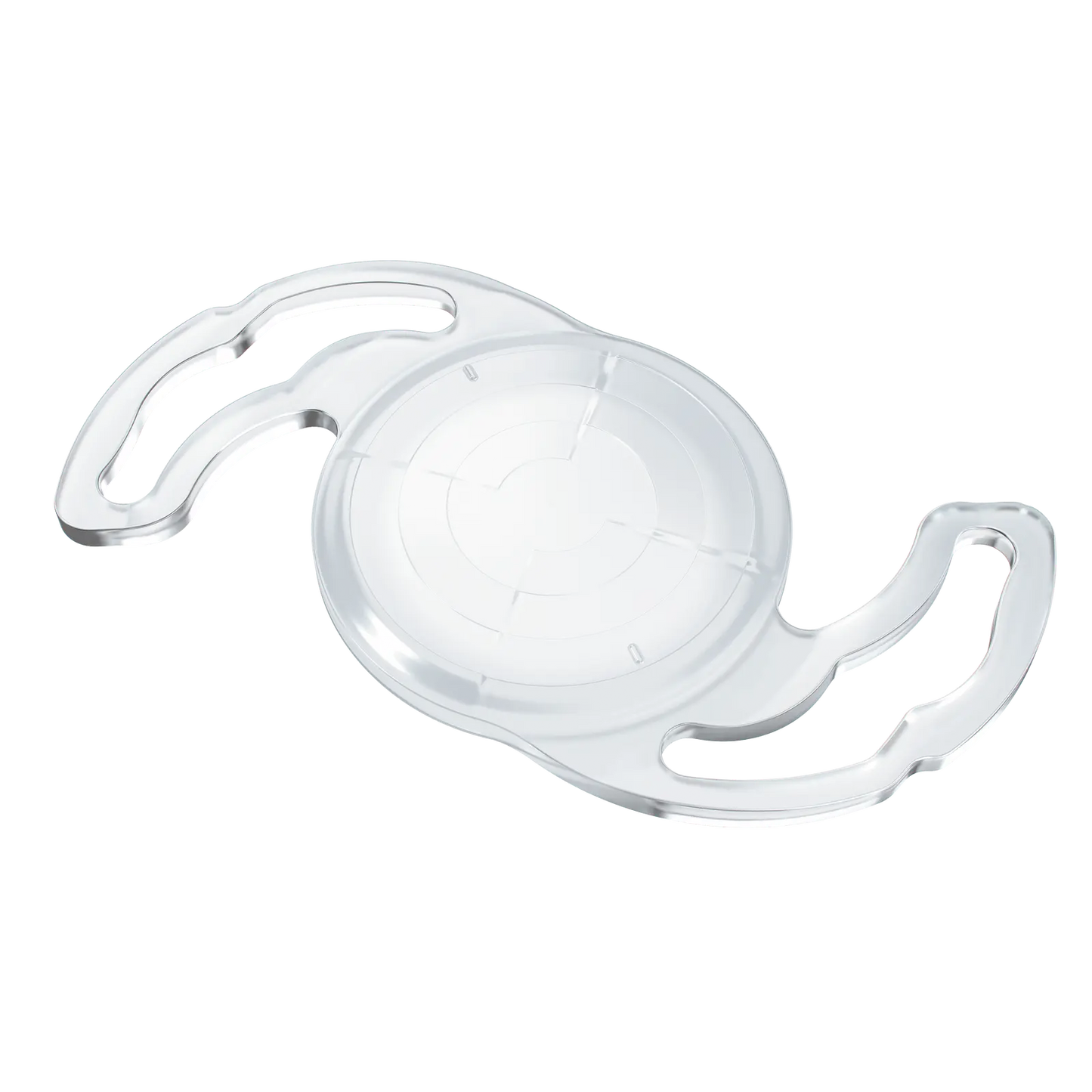

Precizon Presbyopic is a hydrophilic acrylic IOL designed to correct presbyopia and astigmatism.
- Tolerance for misalignment
- Natural vision at all distances
- Reducing glare and halos
