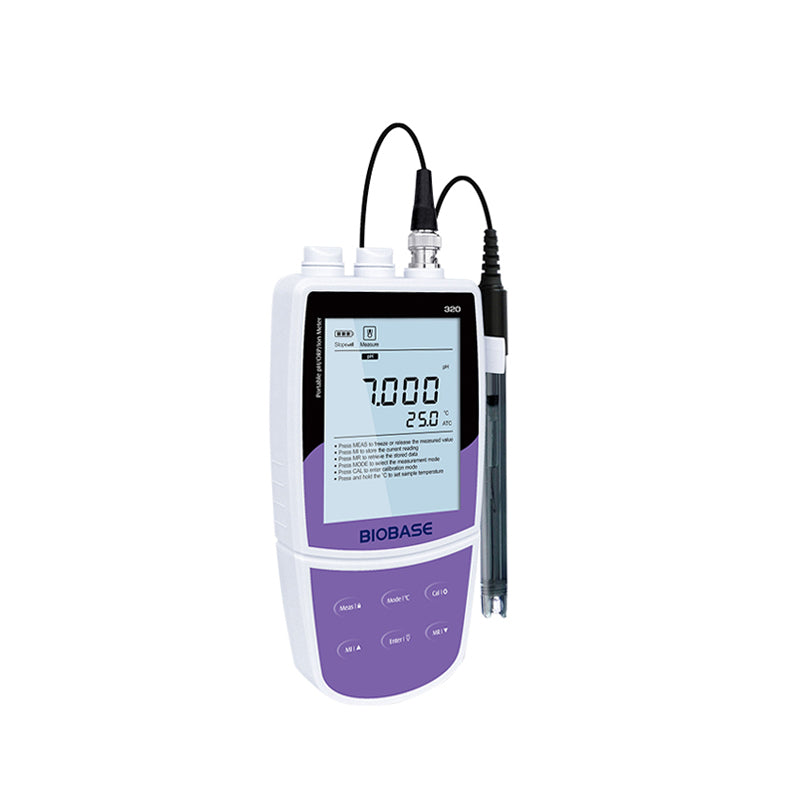

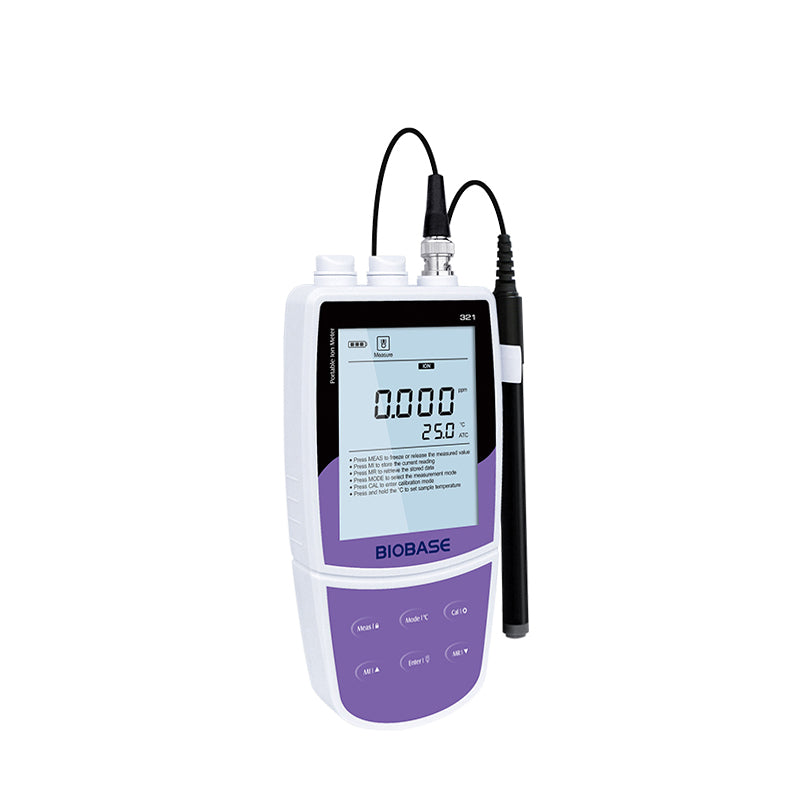

Portable pH/lon Meter
Features:
PH
* 1 to 5 points calibration with automatic recognition for USA, NIST and DIN buffers.
* Automatic electrode diagnosis shows the pH slope and offset.
ORP
* 1 point offset calibration allows adjusting the displayed value to a known standard.
* Relative and absolute millivolt modes ensure the reliable ORP measurements.
Ion Concentration
* 2 to 5 points calibration, including the 8 concentration points can be selected.
* Direct ion concentration readout simplifies the measurement process.
* Automatic electrode diagnosis shows the calibration points and slopes.
* Selectable concentration units (ppm, mg/L, mol/L, mmol/L) and ionic valency.
General Features:
* Automatic temperature compensation ensures accurate readings over the entire range.
* Auto-Read function senses and locks the measurement endpoint.
* Calibration due alarm prompts user to calibrate the meter regularly.
* Auto-Power Off effectively conserves battery life.
* Setup menu allows setting the number of calibration points, resolution, stability criteria, temperature unit, date and time, etc.
* Reset function automatically resumes all settings back to the factory defaults.
* Expanded memory stores or recalls up to 500 data sets.
* USB communication interface is easy to transfer data to PC.
* Multi-mode power scheme (batteries, power adapter and USB port) ensures that using the meter smoothly.
Optional Ion Selective Electrodes:
Ammonium (NH4+ ), bromide (br -), cadmium (Cd2+ ), calcium (Ca2+ ), chloride (Cl-), cupric (Cu2+ ), cyanide (Cn -), fluoride (F-), Iodide (I-), lead (Pb2+), nitrate (NO3 -), potassium (K+ ), silver (Ag+ ), sodium (Na +), sulphide (S2-) and ammonia (NH3 )
Accessories:
* PH electrode * Temperature probe * PH buffer solutions (pH4.01/7.00/10.01)
* Carrying case
Technical Parameters:
| Model |
PH-320 |
PH-321 |
| pH |
pH Range |
-2.000~20.000pH |
/ |
| pH Accuracy |
±0.002pH |
/ |
| Resolution |
0.1, 0.01, 0.001 pH, Selectable |
/ |
| Calibration Points |
1~5 points |
/ |
| pH Buffer Options |
USA (pH1.68/4.01/7.00/10.01/12.45),
NIST (pH1.68/4.01/6.86/9.18/12.45),
DIN (pH1.09/4.65/6.79/9.23/12.75) or 2 custom buffers
|
/ |
| ORP |
mV Range |
-1999.9-1999.9mV |
| Relative mV Range |
-1999.9-1999.9mV| / |
| mV Accuracy |
±0.2mV |
| Resolution |
0.1,1mV, Selectable |
| Calibration Points |
1 point (Only for Relative mV mode)/ |
| Ion |
Ion Concentration Range |
0.001 ~19999ppm, mg/L, mol/L (Refer to the range of ISE) |
| Ion Concentration Accuracy |
±0.5% F.S (Monovalent),±1% F.S (Divalent) |
| Calibration Points |
2~5 points |
| Calibration Solutions |
0.001, 0.01, 0.1,1,10, 100,1000,10000(ppm, mg/L, mol/L) |
| Temperature |
Temperature Range |
0~105°C/32~221°F |
| Temperature Accuracy |
±0.5°C/±0.9°F |
| Resolution |
0.1°C/0.1°F |
| Offset Calibration |
1 point, reading ±10°C |
| Other
Specifications
|
Temperature Compensation |
0~100°C, manual or automatic |
| Stability Criteria |
Low or high |
| Calibration Due Alarm |
1 to 31 days or off |
| Slope/Offset Display |
Yes |
| Hold Function |
Manual or auto-endpoint |
| Auto-Off |
10, 20 or 30 minutes after last key pressed |
| Memory |
500 data sets |
| Communication Interface |
USB |
| Connector |
BNC, 3.5 mm jack socket |
| Display |
Custom LCD (80*60 mm) |
| Power Requirements |
3*1.5V AA batteries or DC5V power adapter |
| Battery Life |
Approximately 150 hours (Turn off the backlight) |
| Dimensions(W*D*H) |
170*85*30mm |
| Package Size(W*D*H) |
475*155*350mm |
| Net Weight |
300g |
| Gross weight |
2kg |
