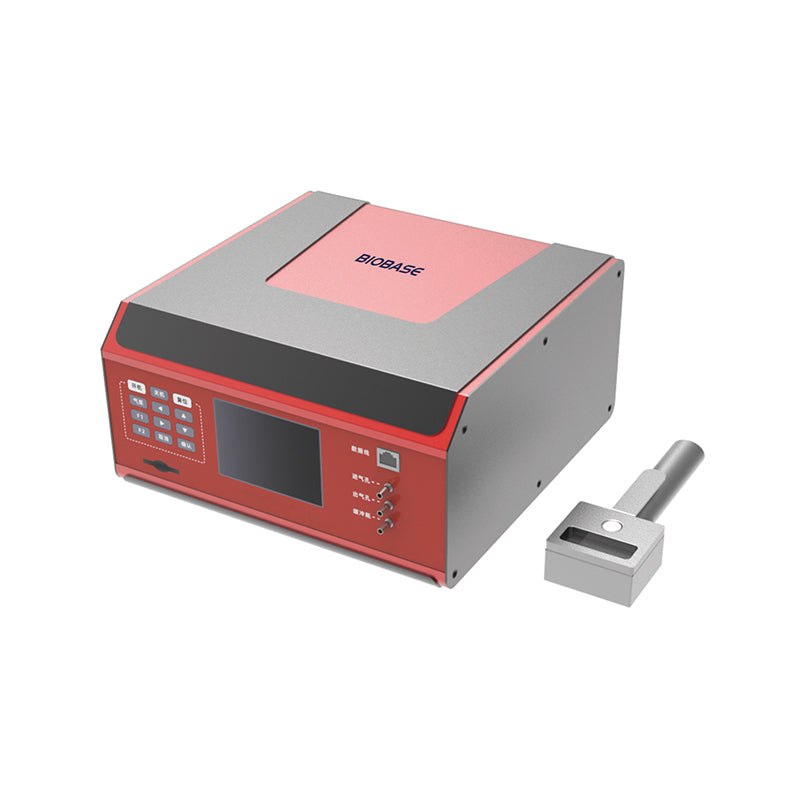

Plant Photosynthesis Meter PPM-C
Features:
* LCD widescreen display.
* Use‐friendly: small in size, light‐weight, portable, single‐person operation, clear connection of gas circuit and electrical circuit, the leaf chamber open and lock automatically.
* Excellent performance: high stability, accuracy, repeatability, and good time response. It is able to measure simultaneously Pn, CO2, PAR, T etc.
* Widely application: equip different type leaf chamber, it can widely apply for field crop, fruits and vegetables, forest and wood, grass etc. equip standard maintain‐free Li‐Ion, AC/DC are available., RS232 available
Technical Parameters:
| Model |
PPM-C |
| CO₂ |
Measure Range |
0~1500ppm |
| Accuracy |
3%ppm |
|
Leaf Temperature |
Measure Range |
0~50℃ |
| Accuracy |
±0.5℃ |
| Air T emperature |
Measure Range |
0~50℃ |
| Accuracy |
±0.5℃ |
| PAR |
Measure Range |
0~2500μmol·m¯²•s¯¹ |
| Accuracy |
<5μmol·m¯²•s¯¹ |
| RH(chamber humidity) |
Measure Range |
0~100% |
| Accuracy |
2% |
| Power Supply |
110~220V, 50/60Hz |
| Packing Size(W*D*H) |
700*500*300mm |
| Gross Weight |
10kg |
