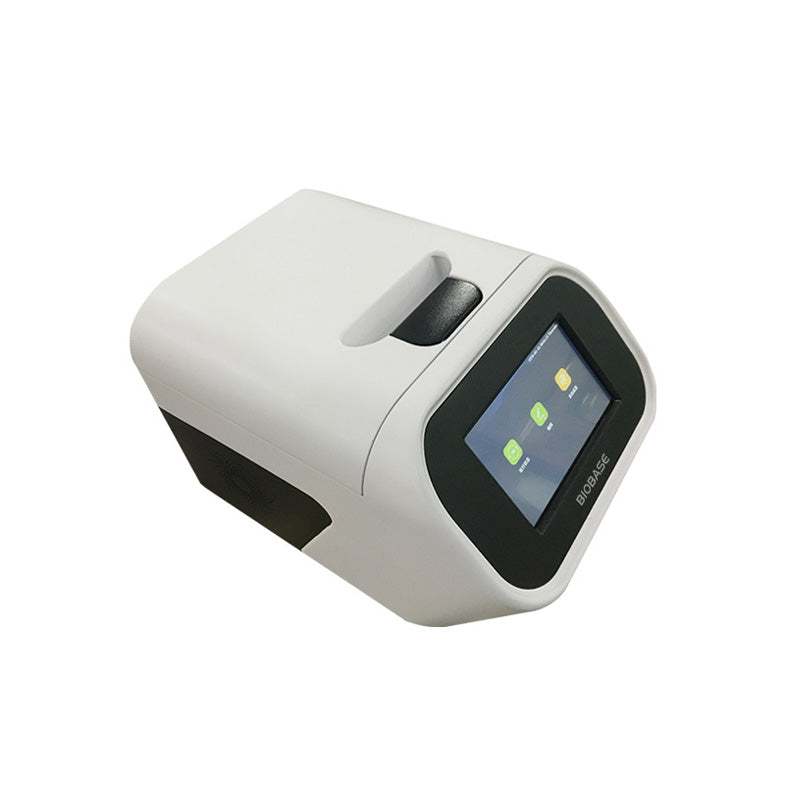

PCR Thermal Cycler TEC01
Features:
*Reliable performance of heating and cooling elements,high-performance temperature control system.
*High-performance digital signal processor for precise temperature control.
*Excellent temperature uniformity.*Rapid heating and cooling.
*7-inch color touch panel,easy to operate.
*Support large-capacity program storage.
Technical Parameters:
| Mode |
TEC01 |
| Capacity |
96 |
| Reaction Volume |
10~200μl |
| Tube Type |
96×0.2mlPCR plate,8
×0.2ml PCR tube
|
| Block Temperature Range |
4℃~105℃ |
| Heat Lid Temperature Range |
30℃~110℃,When the set temperature is lower than 30°,
the Heat Lid will be closed automatically |
| Display Resolution |
±0.1℃ |
| Temperature Accuracy |
≤0.5℃ |
| Temperature Uniformity |
≤1℃ |
| Block Material |
Aluminum |
| Gradient Range |
30～99℃ |
| Temperature Differential Range |
1～42℃ |
| Program |
A single program can be up to 30 steps,99 cycles |
| Display |
7”LCD |
| Power Supply |
110V~220V,50/60Hz |
| External Size(L*W*H) |
398*280*257mm |
| Net Weight |
11kg |
| Package Size(L*W*H) |
495*380*380mm |
| Gross Weight |
17kg |
Introduction:
The thermal cycler is an instrument that performs nucleic acid amplification by polymerase chain reaction.Mainly used inMedical institutions,clinical gene amplification testing laboratories that meet the requirements,scientific research institutes,universities,etc.
