Open-Cup Flash Point Tester
Features:
BK-FP3536:
* It adopts special heating furnace to ensure the safety of test.
* The heating power is continuously adjustable. It can meet requirements
of test.
* The instrument is fully self-contained complete. The operator can do determination as long as connecting with coal gas or other civil gas.
* With fast cooling function, it can improve test efficiency.

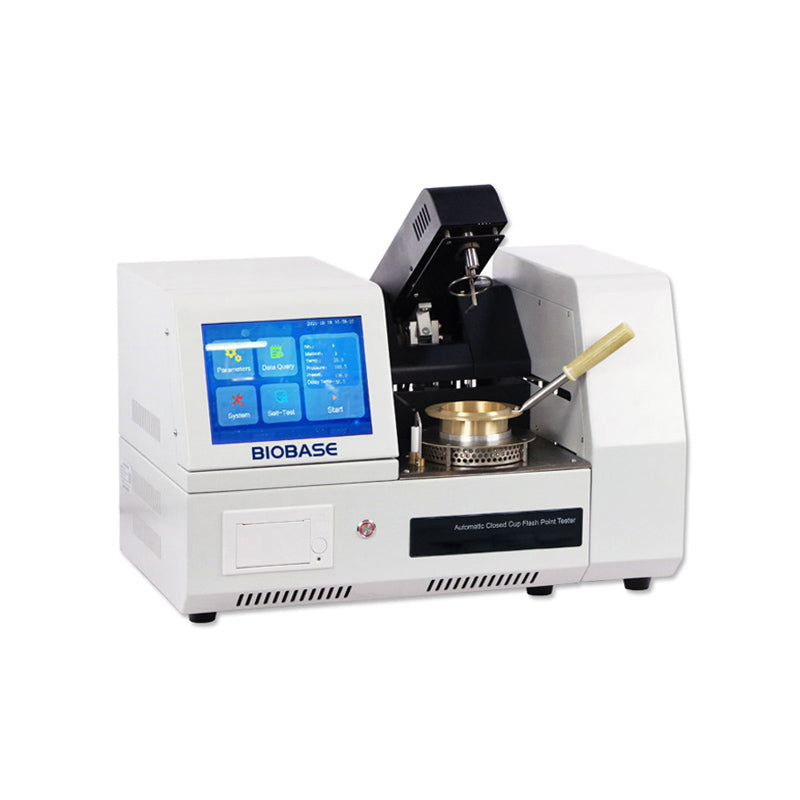

BK-FP3536D:
* 8-inch IPS high-definition capacitive screen, the test data and parameters
are displayed by curve in real time
* Automatic measurement of atmospheric pressure, automatic correction
of flash point value.
* Equipped with Bluetooth interface. The user can query test data anytime.
* Electronic ignition, gas flame.
* Remote automatic upgrade to obtain the latest version, remote prediction,
abnormal early warning, comprehensive evaluation and maintenance
of instrument operation status.
Technical Parameters:
| Model |
BK-FP3536 |
BK-FP3536D |
| Thermometer |
-6°C~400°C. It is the same as thermometer ASTM 11C |
| Ambient Temperature |
15°C-35°C |
| Relative Humidity |
≤85% |
| Consumption |
≤650W |
≤750W |
| Test Flame Applicator |
It applies the test flash automatically. |
| Heating Device |
Furnace heating, no naked fire, explosion prevented. The power is adjustable from OW to 600W |
1. Initial heating: (14~17) °C/min
2. It is (5-6) °C/min after reaching the preset flash point 20 °C
|
| Igniting Device |
(1) Ignition source: coal gas(or civil gas)
(2) Flame diameter is 3.2mm~4.8mm
|
Electric ignition
Diameter of igniter: 0.7mm~0.8mm
|
| Flash Point Determination |
|
Range: Ambient to 400°C
Accuracy: 0.1 °C
|
| Power Supply |
AC220V±10%, 50Hz |
| Dimension(W*D*H) |
350*290*350mm |
510*320*330mm |
| Package Size(W*D*H) |
650*450*420mm |
6690*500*610mm |
| Gross Weight |
20kg |
35kg |
