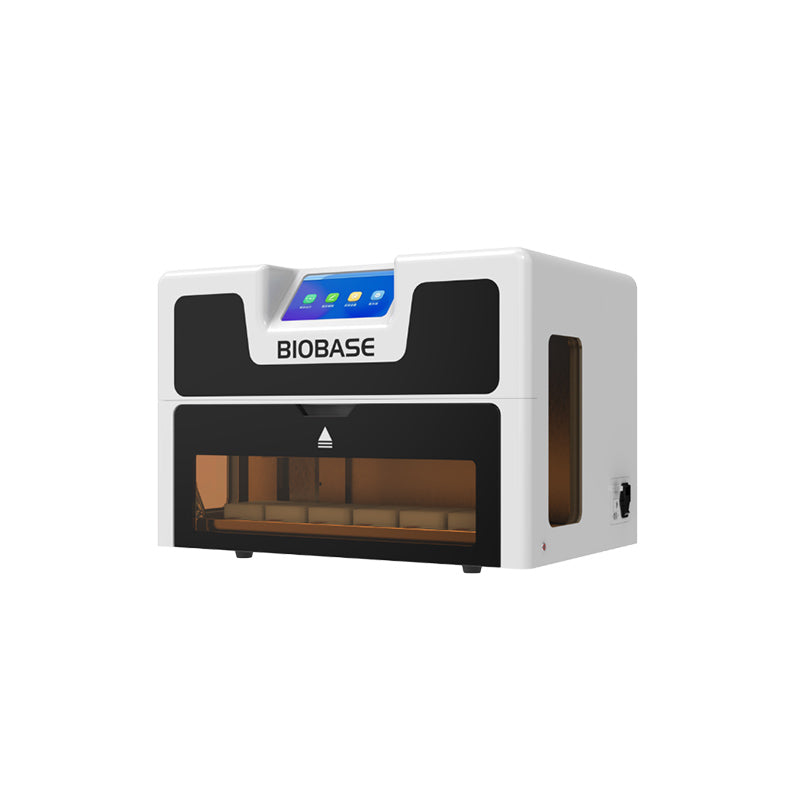

Nucleic Acid Extractor BNP96B
Technical Parameters：
| Model |
BNP96B |
| Screen |
10.1 inches touch screen |
| Sample Volume |
Working volume:60-1000ul; adding sample volume:20-500ul |
| Sample Capacity |
1-96 |
| Magnetic Bead Recovery |
≥98% |
| Extraction Time |
Depending on the reagents |
| Extraction Hole Deviation |
CV＜3% |
| Heating Temperature |
RT-120℃ |
| Product Purity |
DNA≥1.7-2.0; RNA≥1.8-2.1 |
| Shaking Mode |
Multi-gear adjustable |
| Reagent Type |
Open system for magnetic bead method |
| Program Storage |
48 groups |
| Safety Door Design |
Automatically suspend the program operation after the safety door is opened, and continue to run the program after the safety door is closed to avoid cross-contamination |
| Disinfection Method |
UV light |
| Power Supply |
100-240V 50/60Hz |
| Power |
500W |
| Packing Size |
910*670*780mm |
| Gross Weight |
86kg |
Features：
The instrument has a power-on self-test function to minimize the possibility of sample loss during the use of the instrument
Adopting a modular structure, the core components are all independently designed, with higher efficiency and lower failure rate, ensuring better stability during the operation of the instrument
Program visualization, precise control, simple operation, easy to use
According to user needs, the program can be freely edited
Suitable for a variety of nucleic acid methods based on biological nanomagnetic beads
Equipped with dual-channel HEPA filter system, easy to replace
Adopt large volume fan, strong ventilation
The operation area is reduced, and the experimental operation is fast
