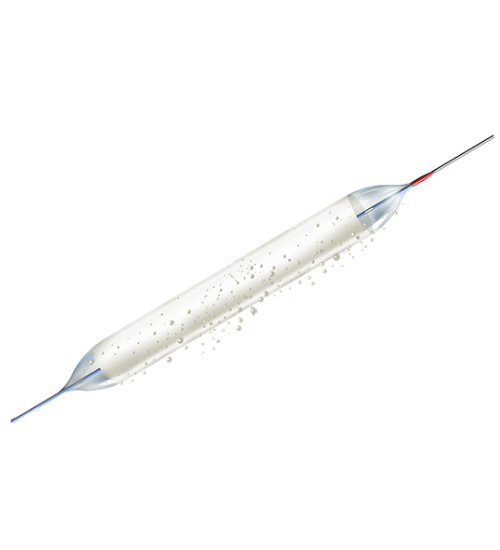

MERIL MOZEC PEB PACLITAXEL COATED PTA PERIPHERAL BALLOON CATHETER

MOZEC^TM PEB is a paclitaxel coated PTA balloon catheter indicated for treatment of peripheral vessels with obstructive disease, sub-total or totally occluded vessel. With a drug dose of 3µg/mm², MOZEC^TM PEB upgrades your efficiency to treat and manage patients with long, diffused disease up to 200mm at one go.

• Extends your reach of drug treatment – longest length 200mm
• Securing outcomes with proprietary drug adhesion technology
• Enhanced navigation with MOZEC^TM PTA platform.

	MOZEC PEB PTA 14	MOZEC PEB PTA 35
Catheter System	Over-The-Wire (OTW)	Over-The-Wire (OTW)
Balloon Material	PEBA	PEBA
Drug Type	Paclitaxel (Crystalline form)	Paclitaxel (Crystalline form)
Drug Dosage	3 µg/mm²	3 µg/mm²
Excipient	Poly Ethylene Glycol (PEG-200) + Urea AR grade + Acetone	Poly Ethylene Glycol (PEG-200) + Urea AR grade + Acetone
Catheter Usabl Length	150 ± 2 cm	135 ± 2 cm
Max Guidewire Compatibility	0.014″	0.035″
Min Sheath Comptibility	4F / 5F (Refer box/IFU for details)	5 – 7F (Refer box/IFU for details)
Distal Puchase	5.0 ± 1 mm	5.0 ± 1 mm
Balloon RO Markers	2 Platinum-Iridium	2 Platinum-Iridium
Nominal Pressure (NP)	6 / 7 atm (Refer compliance chart for details)	6 / 7 atm (Refer compliance chart for details)
Rated Burst Pressure (RBP)	12 – 14 atm (Refer compliance chart for details)	12 – 14 atm (Refer compliance chart for details)
