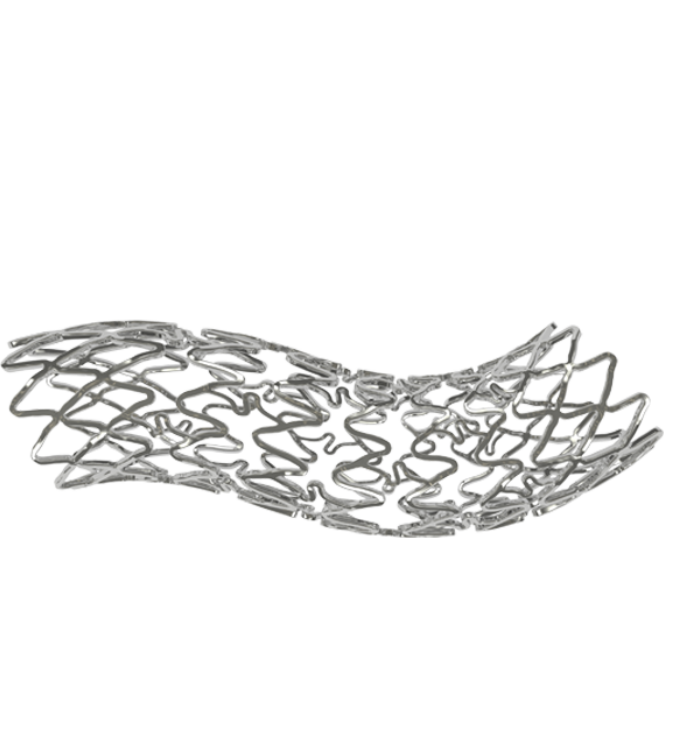

MERIL METAFORTM SIROLIMUS ELUTING CORONARY STENT SYSTEM

Metafor^TM is a Sirolimus Eluting Coronary Stent System with an ultra-thin 65 µm strut thickness. Metafor SES is NexGen Cobalt Chromium Coronary Stent System that has a unique cell design comprising an intelligent mix of open and closed cells. It has a low strut thickness of 65 μm cobalt chromium L605 coupled with variable strut width composition resulting in a structure which provides optimal radial strength with flexibility. Biodegradable Polymer: 2µm low thickness, stable and elastic polymer.

Metafor^TM is based on the proven BioMime DES

Stent material	Cobalt Chromium L605
Stent Strut thickness	65 µm
Stent architecture	Hybrid Cell Design with Non-Linear links
Drug	Sirolimus
Polymer	Biodegradable + Biocompatible
Delivery system	Rapid Exchange
Drug Dose	1.25 μg/mm2
Coating Thickness	2 μm



DIAMETER / LENGTH	8 MM	13 MM	16 MM	19 MM	24 MM	29 MM	32 MM	37 MM	40 MM	44 MM	48 MM
2.00 mm		MTR20013	MTR20016	MTR20019	MTR20024
2.25 mm	MTR22508	MTR22513	MTR22516	MTR22519	MTR22524	MTR22529	MTR22532	MTR22537	MTR22540
2.50 mm	MTR25008	MTR25013	MTR25016	MTR25019	MTR25024	MTR25029	MTR25032	MTR25037	MTR25040	MTR25044	MTR25048
2.75 mm	MTR27508	MTR27513	MTR27516	MTR27519	MTR27524	MTR27529	MTR27532	MTR27537	MTR27540	MTR27544	MTR27548
3.00 mm	MTR30008	MTR30013	MTR30016	MTR30019	MTR30024	MTR30029	MTR30032	MTR30037	MTR30040	MTR30044	MTR30048
3.50 mm	MTR35008	MTR35013	MTR35016	MTR35019	MTR35024	MTR35029	MTR35032	MTR35037	MTR35040	MTR35044	MTR35048
4.00 mm	MTR40008	MTR40013	MTR40016	MTR40019	MTR40024	MTR40029	MTR40032	MTR40037	MTR40040
4.50 mm	MTR45008	MTR45013	MTR45016	MTR45019	MTR45024	MTR45029	MTR45032	MTR45037	MTR45040

Metafor^TM is a Sirolimus Eluting Coronary Stent System with an ultra-thin 65 µm strut thickness. Metafor SES is NexGen Cobalt Chromium Coronary Stent System that has a unique cell design comprising an intelligent mix of open and closed cells. It has a low strut thickness of 65 μm cobalt chromium L605 coupled with variable strut width composition resulting in a structure which provides optimal radial strength with flexibility. Biodegradable Polymer: 2µm low thickness, stable and elastic polymer.

Metafor^TM is based on the proven BioMime DES
