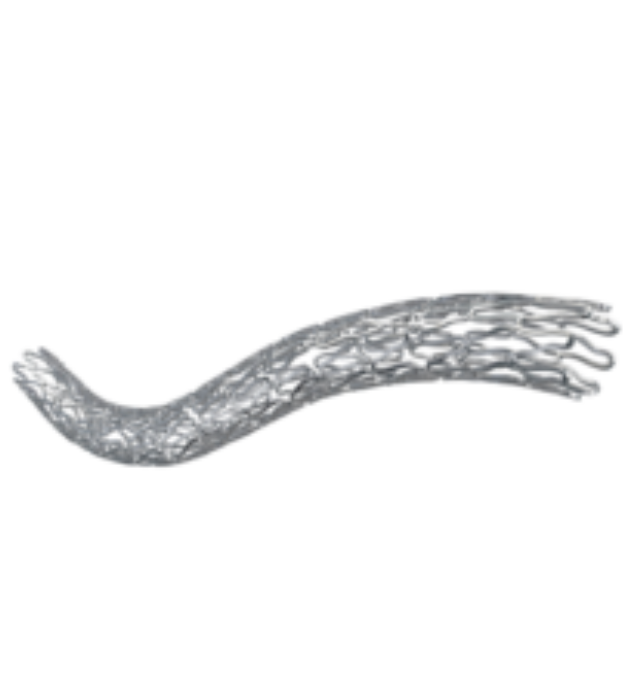

BioMime MorphTM has the proven benefits of BioMime, which are now available as a tapered stent system. It can treat long diffused lesions with a single stent–one and done. Long diffused lesions are typically treated through multiple overlapping stents, which are associated with higher rate of restenosis/ revascularisation. BioMime Morph tapers as per the vessel’s anatomy-It helps to avoid multiple stent placement thus reducing the probability of fracture and restenosis. BioMime Morph is a Sirolimus Eluting Coronary Stent System with an ultra-thin 65 µm strut thickness. This next generation SES has a Novel Hybrid Design with closed cells (on both ends of the stent) & open cells (in the middle)- which allows for Morphology Mediated Expansion for adequate conformability and lesser edge dissections. BioPoly Biodegradable Polymer: 2µm low thickness, stable and elastic polymer. Stent design with non-linear S links & Y connectors allows for high flexibility and adequate side branch access. Strut width variability ensures optimal radial strength.
| Stent material |
Cobalt Chromium L605, Strut Thickness of 65 µm |
| Stent architecture |
Hybrid Cell Design with Non-Linear links |
| Drug |
Sirolimus |
| Polymer |
Biodegradable + Biocompatible |
| Delivery system |
Rapid Exchange |
|
| Drug Dose |
1.25μg/mm2
|
| DIAMETER / LENGTH |
30MM |
40MM |
50MM |
60MM |
| MAIN BRANCH-SIDE BRANCH |
|
|
|
|
| 2.75-2.25 mm |
BIM27522530 |
BIM27522540 |
BIM27522550 |
BIM27522560 |
| 3.00-2.50 mm |
BIM30025030 |
BIM30025040 |
BIM30025050 |
BIM30025060 |
| 3.50-3.00 mm |
BIM35030030 |
BIM35030040 |
BIM35030050 |
BIM35030060 |
BioMime MorphTM has the proven benefits of BioMime, which are now available as a tapered stent system. It can treat long diffused lesions with a single stent–one and done. Long diffused lesions are typically treated through multiple overlapping stents, which are associated with higher rate of restenosis/ revascularisation. BioMime Morph tapers as per the vessel’s anatomy-It helps to avoid multiple stent placement thus reducing the probability of fracture and restenosis. BioMime Morph is a Sirolimus Eluting Coronary Stent System with an ultra-thin 65 µm strut thickness.
