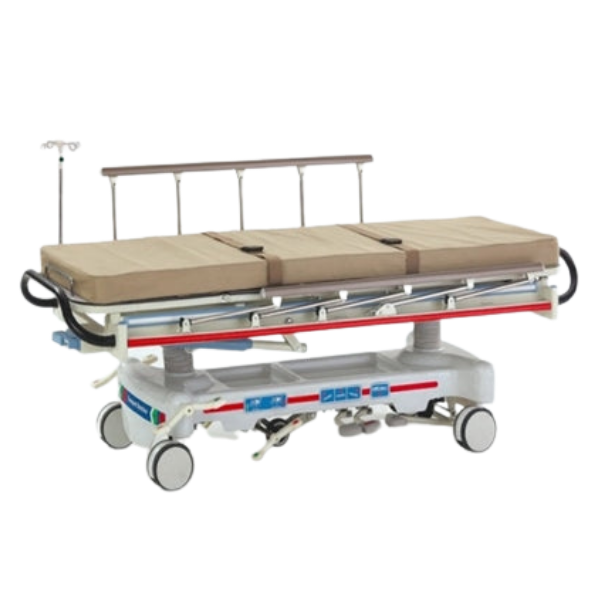

Luxurious hydraulic Trauma Stretcher | E-8

• The main frame of the stretcher is made of electrostatic plastic sprayed galvanized Steel tube.
• The mattress platform is made of X-ray revealed material.
• It is equipped with imported double rise-and-fall hydraulic pump systems. 150 mm diameter.
• Dust proof castors with international advanced central locking system make the stretcher move steadily, reliably and lightly.
• The stretcher has the functions of hi-low, trendelenburg and reverse trendelenburg which are controlled by the treadles lying at the two sides of the stretcher.
• Functions are supported by imported large hydraulic pump which make the stretcher never swayed.
• The headrest is supported by gas spring while the knee rest is controlled by manual crank which is in the end part of the stretcher.
• The bottom cover is made of ABS material and shaped once for all which can be easily cleaned. The stretcher mattress platform is of separate structure.
• Equipped with infusion pole, drainage hook and collapsible stainless steel side rails.
• It is the best choice for emergency room and ICU ward for transferring patient.
• US Hydraulic pump

Feature:

1. Back rest: 0-85°±5°, controlled by gas spring.

2. Knee break: 0-30°±5°, controlled by manual crank

3. Lowest height: 600mm±10mm

4. Highest height: 920 mm±10mm

5. Tilt to back & forth which is controlled by the foot pedal on the two sides of the stretcher.

6. Safety working loading: 2500N

7. User environment : temperature:5℃– 40℃

8. The main frame of stretcher is made of galvanized steel tube coated with electrostatic powder spray. The top board is made of X-ray translucent material.
