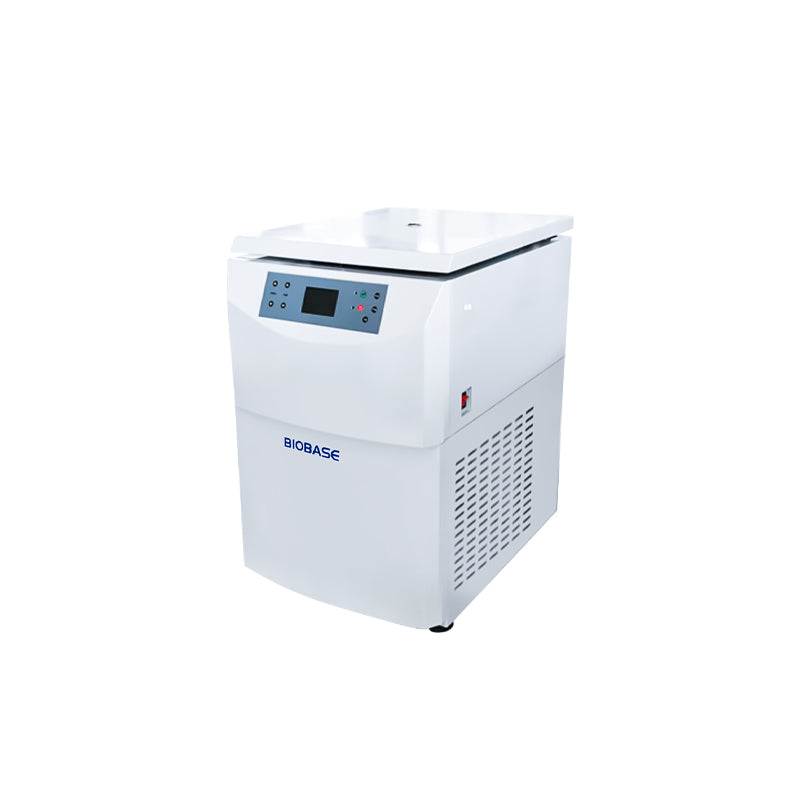

Low Speed Large Capacity Refrigerated Centrifuge BKC-VL5RML
Features
1. 10 kinds of speed up and down, 20 kinds of program storage
2. Brush-less high-torque frequency conversion motor, no dust pollution, fast lifting speed, maintenance-free
3. High-definition LCD display, button programming design, intuitive and simple operation
4. Automatic electric induction door lock, emergency unlocking function; over speed, over temperature, unbalance automatic protection
5. Imported fluorine-free compressor unit, double-cycle refrigeration, strong heat and cold exchange capacity, no environmental pollution, precise temperature control
6. The fuselage adopts high-quality steel structure, built-in stainless steel explosion-proof protection inner sleeve, stainless steel centrifugal chamber, three-layer protection, safe and reliable
7. Patented refrigeration system, fast energy saving, reducing preparation time and improving efficiency
8. The speed and temperature are precisely controlled by a microcomputer processor, and the speed, temperature and RCF value are displayed in real time during operation
Technical Parameters
| Model |
BKC-VL5RML |
| Max Speed |
5000rpm |
| Max Capacity |
4*750ml |
| Speed Precision |
±20r/min |
| Noise |
≤65dB(A) |
| Temperature Controlling Range |
-20~40℃ |
| Temperature Controlling Precision |
±1℃ |
| Timing Range |
1-999min |
| Power Supply |
Standard: 220V 50/60Hz, optional: 110V 50/60Hz |
| External Size |
550*650*820mm |
| Net Weight |
120kg |
| Packing Size |
950*750*1050mm |
| Gross Weight |
150kg |
Rotor Specifications
| Rotor NO. |
Rotor Type |
Capacity |
Max Speed(rpm) |
Max RCF(*g) |
| NO.1 |
Swing rotor(round cup) |
4*750ml |
4000 |
3380 |
| NO.2 |
Swing rotor(round cup) |
4*500ml |
4000 |
3184 |
| NO.3 |
Elisa plate |
2*2*96well |
4000 |
2300 |
| NO.4 |
Swing rotor |
4*1*50ml |
5000 |
4682 |
| NO.5 |
4*1*100ml |
4750 |
| NO.6 |
4*2*100ml |
4000 |
3157 |
| NO.7 |
4*2*50ml |
2996 |
| NO.8 |
4*8*15ml |
2558 |
| NO.9 |
4*20*2ml vacuum tube |
3010 |
| NO.10 |
4*20*5ml vacuum tube |
3139 |
| NO.11 |
4*24*5ml vacuum tube |
3200 |
| NO.12 |
Swing rotor |
4*10*5ml vacuum tube |
4000 |
3000 |
| NO.13 |
4*12*5ml vacuum tube |
3000 |
| NO.14 |
4*18*5ml vacuum tube |
3000 |
| NO.15 |
Fixed rotor |
12*15ml |
5000 |
2200 |
| NO.16 |
24*10ml |
2200 |
| NO.17 |
6*50ml |
3400 |
| NO.18 |
4*100ml |
2800 |
| NO.19 |
6*100ml |
3150 |
