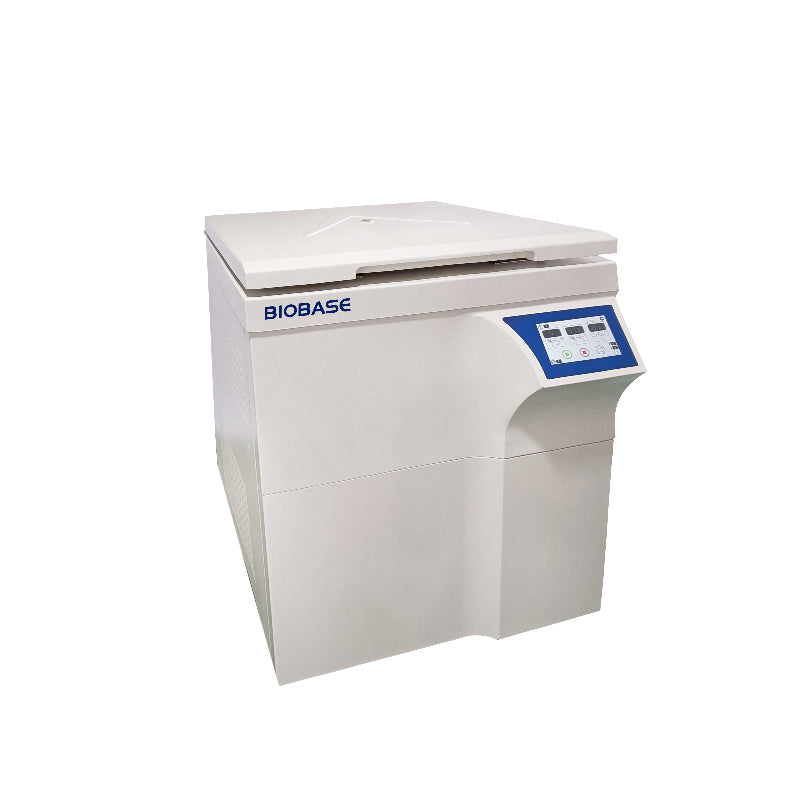

Low Speed Large Capacity Refrigerated Centrifuge BKC-TL5RL BKC-VL6RLII
Features:
* Programmable microprocessor control (AC brushless motor).
* LCD & LED display: speed, RCF, time and temperature, conversion ofRPM/RCF.
* CFC-free refrigeration, fast cooling, cycle defrost system;
*External cold-rolled steel with powder coating steel, stainless steelcentrifugal chamber and lid.
* Fan-forced air circulation system for fast recovery of temperature.
* 10 procedures of adjustable speed from grad O to 9 and 40 kinds ofself-defining modes.
* Electronic lock lid and interlock safety system.
* Alarm: lid open, imbalance, over speed, over temperature, rotormounting abnormally.
* Functions: RCF selection, quick run, automatic rotor recognition andbackup, electronic imbalance detection, dynamic electric brake system.
Model：
| Model |
BKC-TL5RL |
BKC-VL6RLII |
| Max. Capacity |
4*750ml |
6*1000ml |
| Max. Speed |
6000rpm |
6000rpm |
| Max. RCF |
3800xg |
6680xg |
| Speed Precision |
±30rpm |
±20rpm |
| Temp. Range |
-20~40°C |
| Temp. Accuracy |
±1°C |
| Timing Range |
0~99h59min59s |
0~99h59min59s |
| Noise |
≤60dB |
≤58dB |
| Consumption |
2.5KW |
4KW |
| Power Supply |
AC110/220V, 50/60Hz |
| External Size(W*D*H) mm |
720*743*410 |
725*840*970 |
| Packing Size(W*D*H) mm |
790*810*580 |
830*1080*1440 |
| Net Weight(kg) |
110 |
268 |
| Gross Weight(kg) |
120 |
320 |
Rotor for BKC-TL5RL:
| No. |
Rotor |
Speed(rpm) |
RCF (xg) |
Capacity |
Dimension of Tube (mm) |
| NO.1 |
Swing Rotor
|
4000 |
2810 |
4*2*100ml
(Optional adapter)
|
Φ37.5*123
|
| 4000 |
2810 |
4*100ml
(Optional adapter)
|
Φ37.5*123
|
| 4000 |
2810 |
4*2*50ml |
Φ29*107 |
| 4000 |
2810 |
4*50ml |
Φ29*107 |
| 4000 |
2810 |
4*8*15ml |
Φ17*118 |
| 4*6*15ml |
Φ17*118 |
| 4*4*15ml |
Φ17*118 |
| NO.2 |
Swing Rotor
|
4200 |
3500 |
4*250ml |
Φ62*110 |
| NO.3 |
Swing Rotor
|
4000 |
3040 |
4*500ml |
Φ80*137 |
| NO.4 |
Swing Rotor
|
4000 |
3500 |
4*750ml |
Φ99*130 |
| NO.5 |
Microplate Rotor |
4000 |
2000 |
2*2*96well |
Microplate
|
| NO.6 |
Swing Rotor
|
4000 |
2800 |
4*12*7/5ml |
Φ13*110 |
| NO.7 |
Swing Rotor
|
4000 |
2800 |
4*18*7/5ml |
Φ13*110 |
| NO.8 |
Swing Rotor
|
4000 |
2800 |
4*24*7/5ml |
Φ13*110 |
| NO.9 |
Angle Rotor |
6000 |
3800 |
6*50ml |
Φ29*120 |
Rotor for BKC-VL6RLII：
| No. |
Rotor |
Speed(rpm) |
RCF(xg) |
Capacity |
| No.1 |
Angle Rotor |
6000 |
6680 |
6*500ml |
| No.2 |
Swing Rotor (round cup) |
4200 |
5030 |
6*1000ml |
| No.3 |
Swing Rotor (square cup) |
4200 |
5030 |
6*1000ml |
