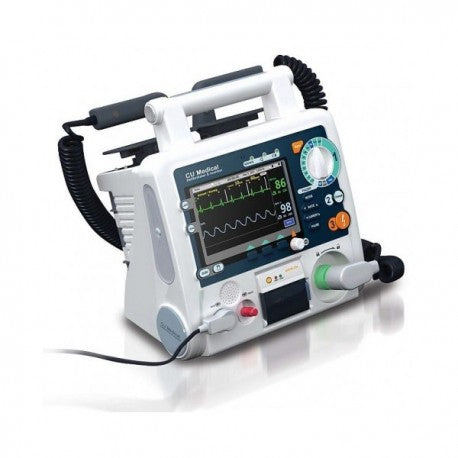

The CU-HD1 is a medical device that is operated by battery and AC power. This product is a medical device designed to be used by Level 1 and Level 2 emergency medical technicians and medical professionals. This product provides the automated external defibrillation fuction and the manual defibrillation fuction. This product also provides the synchronized cardioversion function, transcutaneous pacing function, and patient monitoring function. This product also has the Synchronized Cardioversion function, Transcutaneous Pacing function, and Patient Monitoring function. This product can be used by emergency medical technician and medical professionals. You can use the functions of the device with simple button operation, and check various information through the screen while using the product.
Functions and Features
Patient Monitoring (ECG, SpO2, NIBP, Pacer)
Convenient shortcut buttons and switch for using in hospital and emergency
Data transmission using Bluetooth
Specifications
• Exterior View Dimensions : 326 x 253 x 356mm (W x L x H)
Weight: 5kg or below (without accessories)
• Display Type : TFT LCD (including backlights)
Screen Size : 152.4 (W ) x 91.44 (H) mm
Resolution : 800 x 480 (RGB) pixels
• Defibrillator Operation
Mode : Semi-automatic/ Manual
Defibrillation
Output Waveform: e-cube Biphasic (BTE type)
Output energy: 200 Joules fixed, Manual 1~200J
R-sync defibrillation: transfer of the defibrillation energy synchronized with the R-wave out of QRS of the ECG signal within 60ms.
