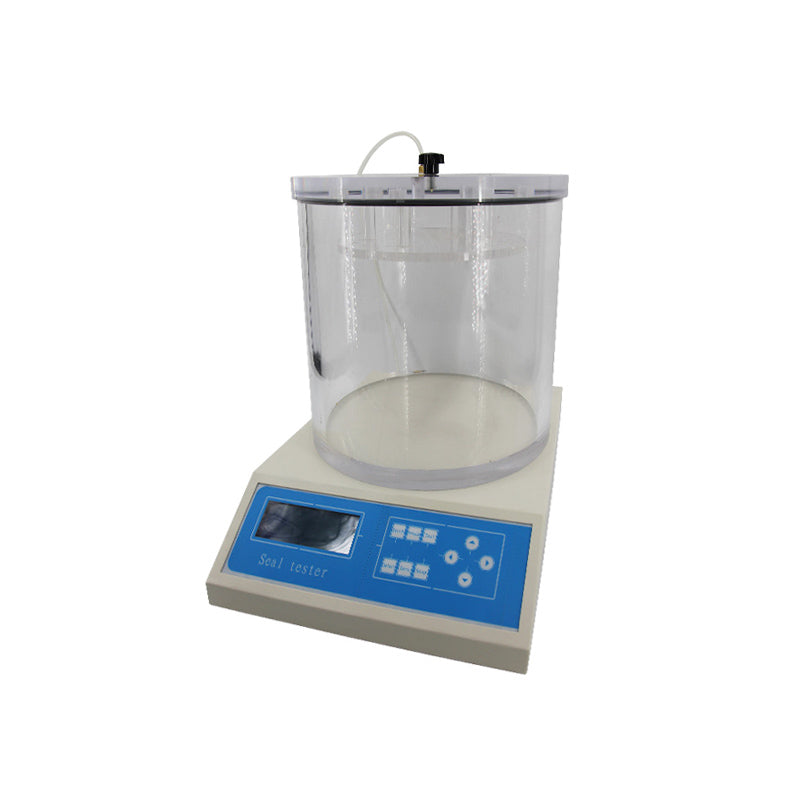

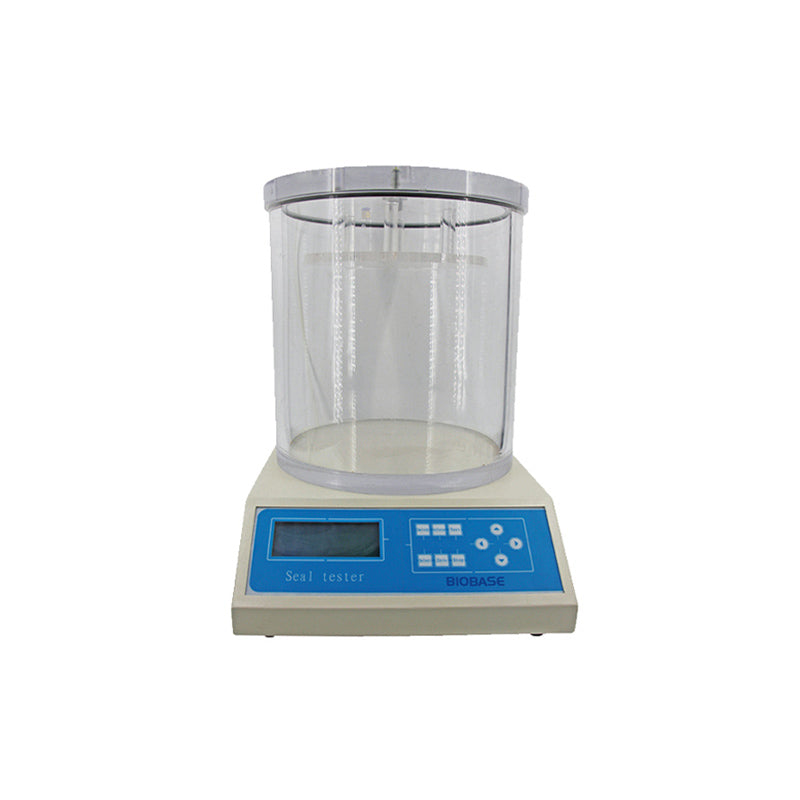

Leakage Tester-BK-ST134
Features:
* Microcomputer control, test parameters can be set, automatic testing process
* LCD screen display
* Sealed chamber is made of high quality plexiglass tubing with 15mm thickness
* Backflush automatically to unload pressure
Technical Parameters:
| Model |
BK-ST134 |
| Vacuum Degree Range |
-90~0kPa |
| Vacuum Precision |
±0.1 KPa |
| Resolution |
0.1 KPa |
| Indication of Changes |
≤1% |
| Etfective Size of
Vacuum Chamber
|
φ270*210mm or φ270*160 mm(standard).
Note: customization is available for other sizes
|
| Original Air Pressure |
0.7MPa (Owned) |
| Original Air Connection |
φ6Polyurethane pipes |
| Control Method |
Microcomputer control, automatic test procedure |
| Display |
LCD display |
| Dimensions |
Operation Host |
420*320*120mm(W*D*H) |
|
Vacuum Chamber |
φ300*350mm or <P300*300mm |
| Environmental Conditions |
RT(20±10)°C, Relative humidity<85% |
| Power Supply |
AC110/220V±10%, 50/60HZ |
| Optional Accessories |
Vacuum Chamber:036O*59O mm (H),
φ460*330 mm (H)
Air Compressor
|
| Package Size(W*D*H) |
Main Machine 530*430*250mm, Sealed Chamber 370*370*420mm |
| Net Weight/Gross Weight |
16kg/23kg |
