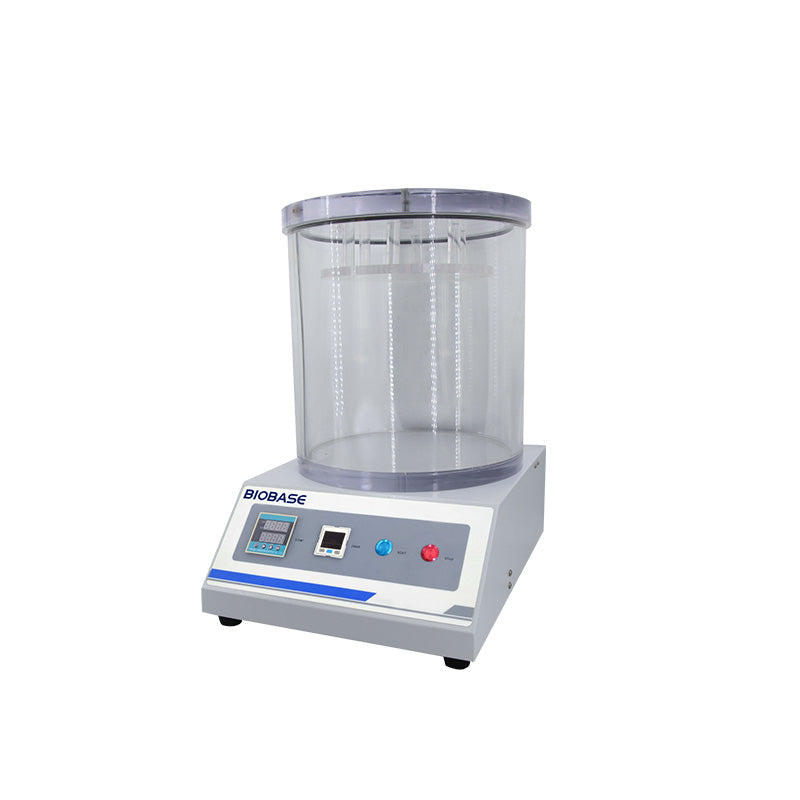

Leakage Tester-BK-ST132
Features:
* Microcomputer control, test parameters can be set, the test process is fully automated.
* PVC operation panel, multiple parameters display at the same time.
* High-quality plexiglass pipe, wall thickness up to 15mm.
* Can realize the test process of one-key operation.
* Pneumatic components sealing performance is superior, reliable quality.
* Automatic constant pressure air supply, automatic backblowing unloading pressure.
* External compressed air filter device, easy to drain water and clean impurities.
* Dual power supply independent power supply.
Technical Parameter:
| Model |
BK-ST132 |
| Vacuum Degree Range |
-90kPa~0 |
| Vacuum Precision |
±0.1kPa |
| Original Air Pressure |
0.7Mpa(Owned) |
| Original Air Connection |
Φ6 Polyurethane pipes |
| Control Method |
Microcomputer control, automatic test |
| Display |
LED display |
| Power Mode |
Compressed Air |
| Time Range |
0~9999s |
| Power Supply |
Standard: AC220V 50Hz
Optional: AC110V 60Hz
|
| Effective Size of
Vacuum Chamber
|
Standard: Φ270*210mm(H)
Optional: Φ360*585mm(H), Φ460*330mm(H), others.
|
| Dimensions |
Operation Host: 420*320*120mm(W*D*H)
Vacuum Chamber: 300*350mm(H)
|
| Package Size |
Operation Host: 540*440*250mm(W*D*H)
Vacuum Chamber: 380*380*420mm(W*D*H)
|
| Net/Gross Weight |
16/18kg |
