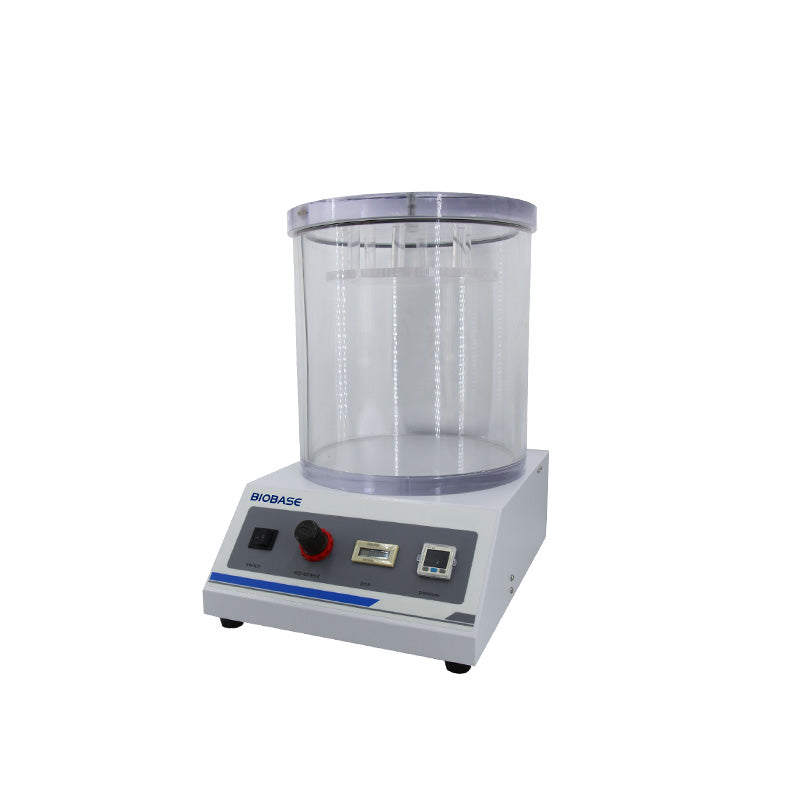

Leakage Tester-BK-ST130
Features:
* Manually adjust the pressure and control the pressure holding.
* The performance of pneumatic components is stable and reliable.
* High quality plexiglass sealing barrel, effectively enhance the compressive strength.
* Electronic pressure holding device, reduce mechanical wear.
* PVC operation panel, LED display.
* Built-in time display, convenient for users to record and observe the pressure holding time.
Technical Parameter:
| Model |
BK-ST130 |
|
Vacuum Degree Range |
-90kPa~0 |
| Vacuum Precision |
±0.1kPa |
| Resolution |
0.1kPa |
| Original Air Pressure |
0.7Mpa(Owned) |
| Original Air Connection |
Φ6 Polyurethane pipes |
| Control Method |
Manual adjustment, automatic timing |
| Display |
LED display |
| Time Range |
0~9999h59min59s |
| Power Supply |
Standard: AC220V 50Hz
Optional: AC110V 60Hz
|
| Effective Size of
Vacuum Chamber
|
Standard: Φ270*210mm(H)
Optional: Φ360*585mm(H), Φ460*330mm(H), others.
|
| Dimensions |
Operation Host: 420*320*130mm(W*D*H)
Vacuum Chamber: 300*350mm(H)
|
| Package Size |
Operation Host: 540*440*250mm(W*D*H)
Vacuum Chamber: 380*380*420mm(W*D*H)
|
| Net/Gross Weight |
12/18kg |
