LCD Display Biological Microscope BBM-17AP
Technical Parameters:
| Model |
BBM-17AP |
| View Head |
Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 48~75mm |
| Eyepiece |
WF10X/22mm, P16X/15mm（Optional) |
| Infinite Achromatic Objective |
4X N.A=0.10 WD=20.00mm
10X N.A=0.25 WD=13.50mm
40X N.A=0.65 WD=0.68mm
100X(Oil) N.A=1.25 WD=0.20mm
|
| Focusing |
Coaxial Coarse ＆ Fine Adjustable System, Range 30mm, Fine Division 0.002mm |
| Stage |
Mechanical Stage 140*160mm, Moving Range 76*45mm |
| Condenser |
Abbe NA1.25 centerable condenser with Iris Diaphragm ＆ Filter |
| Illumination |
LED lamp, brightness adjustable |
| Filter |
Blue, green |
| Imagine System |
9.7-inch android panel computer with MCL-Z lens |
| Power Supply |
AC85~265V， 50/60Hz |
| Package Size |
405*260*510mm |
| Gross Weight |
8.5kg |

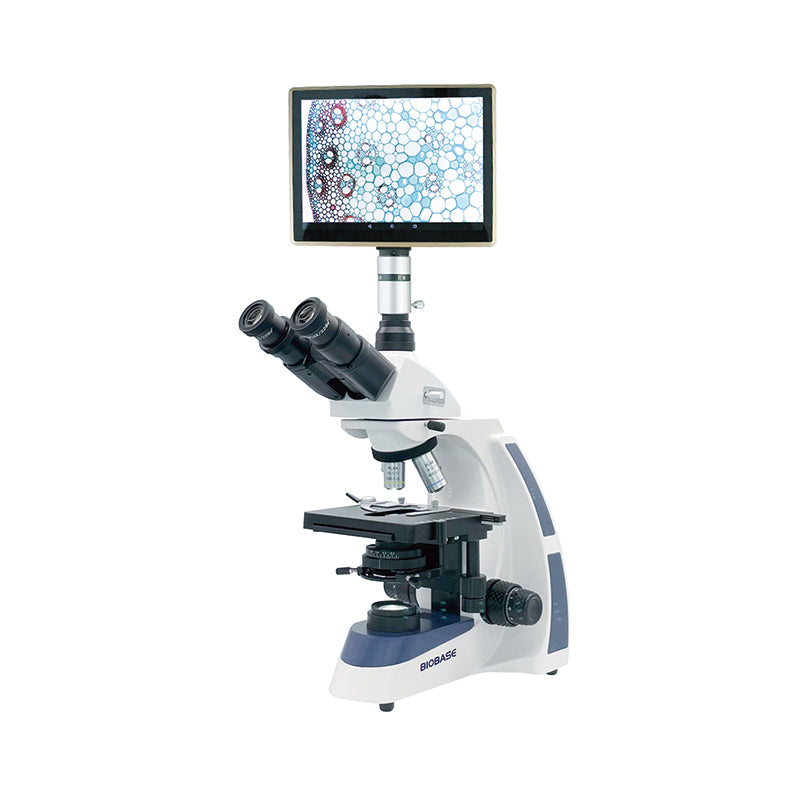

The LCD Display Biological Microscope seamlessly combines traditional microscopy with advanced digital technology. Featuring a built-in LCD screen, it provides high-resolution imaging and live specimen observation, making it an ideal tool for both research and educational purposes. This innovative microscope offers convenience and precision, allowing users to capture, view, and share detailed images and videos of biological specimens effortlessly. Explore the microcosmos with clarity and ease, enhancing scientific discovery and educational experiences.
