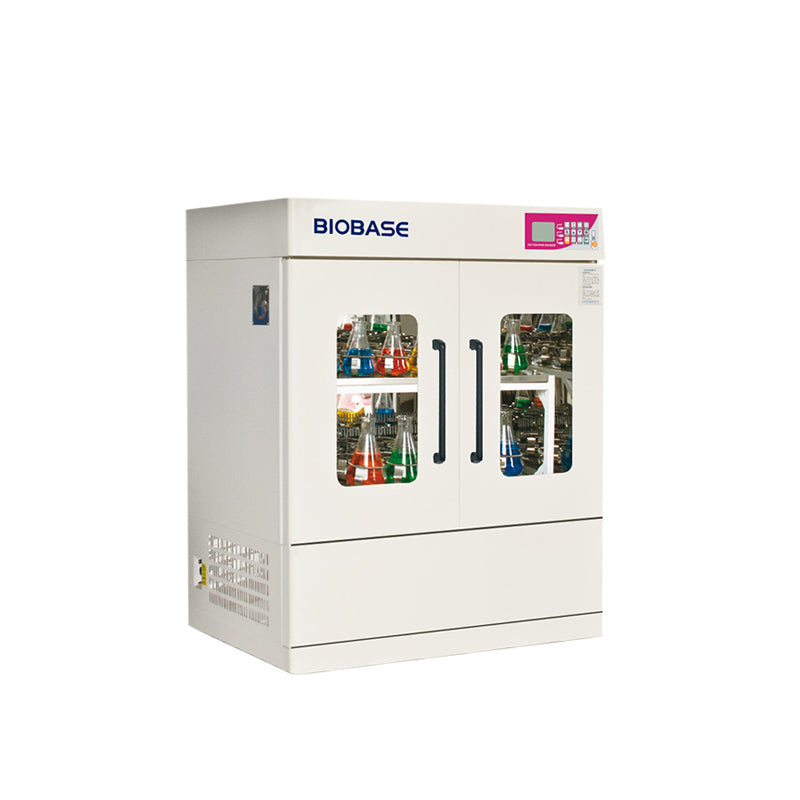

Large Capacity Vertical Type Shaking Incubator Double Door Double Layer(BJPX-X)
Features:
* Audio and visual alarm.
* Power off recovery function.
* High efficiency servo motor, accurate control speed.
* Super low speed start, start speed adjustable, over-speed automatic protection.
* Accessories: Monitor timer(standard accessories); Open the door automatically stop, UV disinfection function, humidification shaker, high temperature shaker(optional accessories).
Models:
| Model |
BJPX-1102X |
BJPX-2102X |
| Controller |
PID |
| Display |
LCD |
| Circulation Mode |
Forced convection |
| Shaking Mode |
Rotary shaking |
| Drive Mode |
Multidimensional drive |
| Rotating Speed |
20~350rpm(Can do static culture, positive and negative) |
| Rotating Accuracy |
±1rpm |
| Vibration Range |
Φ26mm, (Can customize φ35(20-250rpm/min), φ50(20-200rpm/min)) |
| Temp. Range |
RT+5~60℃ |
4~65℃(At 25℃) |
| Temp. Accuracy |
±0.1℃ |
| Temp. Uniformity |
±0.5℃(At 37℃) |
| Timing Range |
0~9999h/min |
| Shaking Plate Size |
710*455mm |
| Shaking Plate Quantity |
2pcs |
| Max. Capacity |
100ml*100 or 250ml*56 or 500ml*44 or 1000ml*24(Flask clamp)
100ml*120 or 250ml*70 or 500ml*44 or 1000ml*24(Haftplatte) |
| Standard Capacity |
250ml*28, 500ml*22 |
| Internal Material |
Stainless steel |
| External Material |
Stainless steel |
| Refrigerant |
/ |
R134A |
| Cooling Consumption |
/ |
250W |
| Heating Consumption |
700W |
| Safety Function |
Audio and visual alarm for over-temperature;
Alarm for over-speeds;
Independent over-temperature protector;
Shutdown protection for door opening;(Optional accessory)
Ultraviolet disinfection function; (Optional accessory)
Calibration of monitoring temperature and ambient temperature;
Overload protection of refrigeration unit, delayed start of incoming call and automatic defrosting(only BJPX-2102X) |
| Consumption |
900W |
1150W |
| Power Supply |
220V±10%, 50/60Hz(Standard); 110±10%, 60Hz(Optional) |
220V±10%, 50Hz(Standard); 110±10%, 50Hz(Optional) |
| Internal Size(W*D*H)(mm) |
840*530*600 |
| External Size(W*D*H)(mm) |
950*700*1280mm |
| Package Size(W*D*H)(mm) |
1100*850*1500mm |
| Gross Weight(kg) |
270 |
290 |
Features:
* Audio and visual alarm.
* Power off recovery function.
* High efficiency servo motor, accurate control speed.
* Super low speed start, start speed adjustable, over-speed automatic protection.
* Accessories: Monitor timer(standard accessories); Open the door automatically stop, UV disinfection function, humidification shaker, high temperature shaker(optional accessories).
