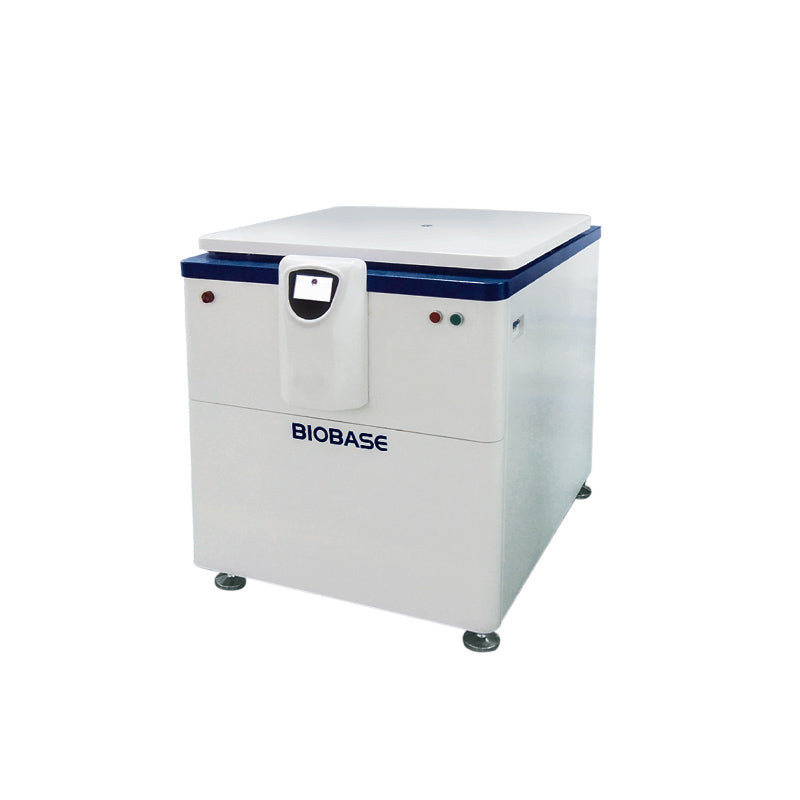

Large Capacity High Speed Refrigerated Centrifuge BKC-VH10RL
Features：
1. LCD display, microprocessor control, indicating setting parameters and actual parameters at the same time.
2. AV motor: high torque and variable frequency, free from contamination caused by carbon dust.
3. Imported drive system and automatic control system to ensure steady and reliable operation.
4. Safety: Over-temperature and over-speed protection, electronic locking, imbalance detection.
5. Can set 16 procedures, parameters can be modified during running.
6. 10 levels speed-up and speed-down control.
7. Can indicate rotor speed ascending and declining curves, centrifugal integral curves and temperature curves.
Model:
| Model |
BKC-VH10RL |
| Max. Capacity |
6*1000ml |
| Max. Speed |
10000rpm |
| Max. RCF |
18300xg |
| Speed Precision |
±50rpm |
| Control and Driven System |
Frequency motor, micro control, direct driver |
| Refrigeration System |
CFC-free (R404a) |
| Temp. Range |
-20°C-40°C |
| Temp. Precision |
±1℃ |
| Timing Range |
0~99h59min |
| Noise |
<65dB |
| Consumption |
5.7KW |
| Power Supply |
AC110/220V, 50/60HZ |
| External Size(W*D*H) mm |
840*730*950 |
| Package Size(W*D*H) mm |
1085*835*1165 |
| Net/Gross Weight(kg) |
280/370 |
Rotor:
| Model |
Capacity |
Speed(rpm) |
RCF(xg) |
| Angle Rotor |
6*1000ml |
7000 |
11500 |
| 6*250ml |
10000 |
15093 |
| 6*500ml |
8000 |
11800 |
